Installation Procedure

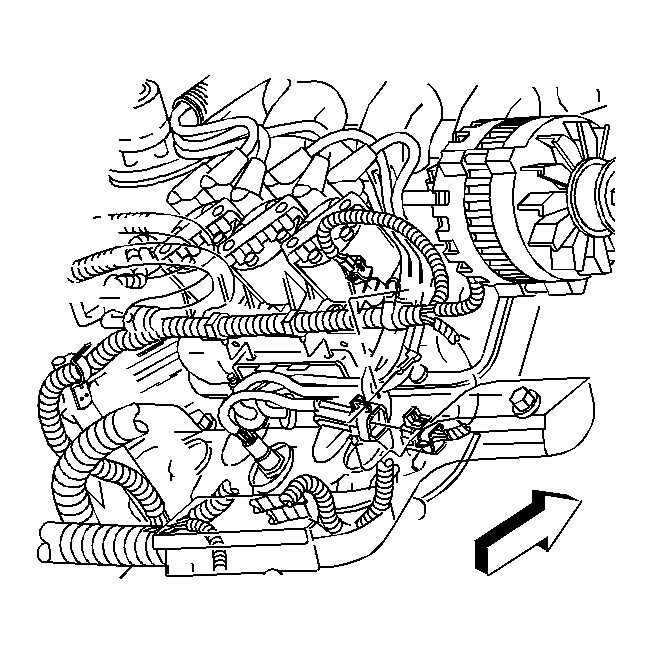

    Fig 1: Identifying HO2S Electrical Connector
    GM73896Courtesy of GENERAL MOTORS CORP.
  1. Coat the threads of the HO2S 1 with anti-seize compound GM P/N 5613695, or an equivalent, if necessary.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the HO2S 1.

    Tighten:  Tighten the sensor to 41 N.m (30 lb ft).

  3. Connect the H02S 1.
