Power Outlet Component Views

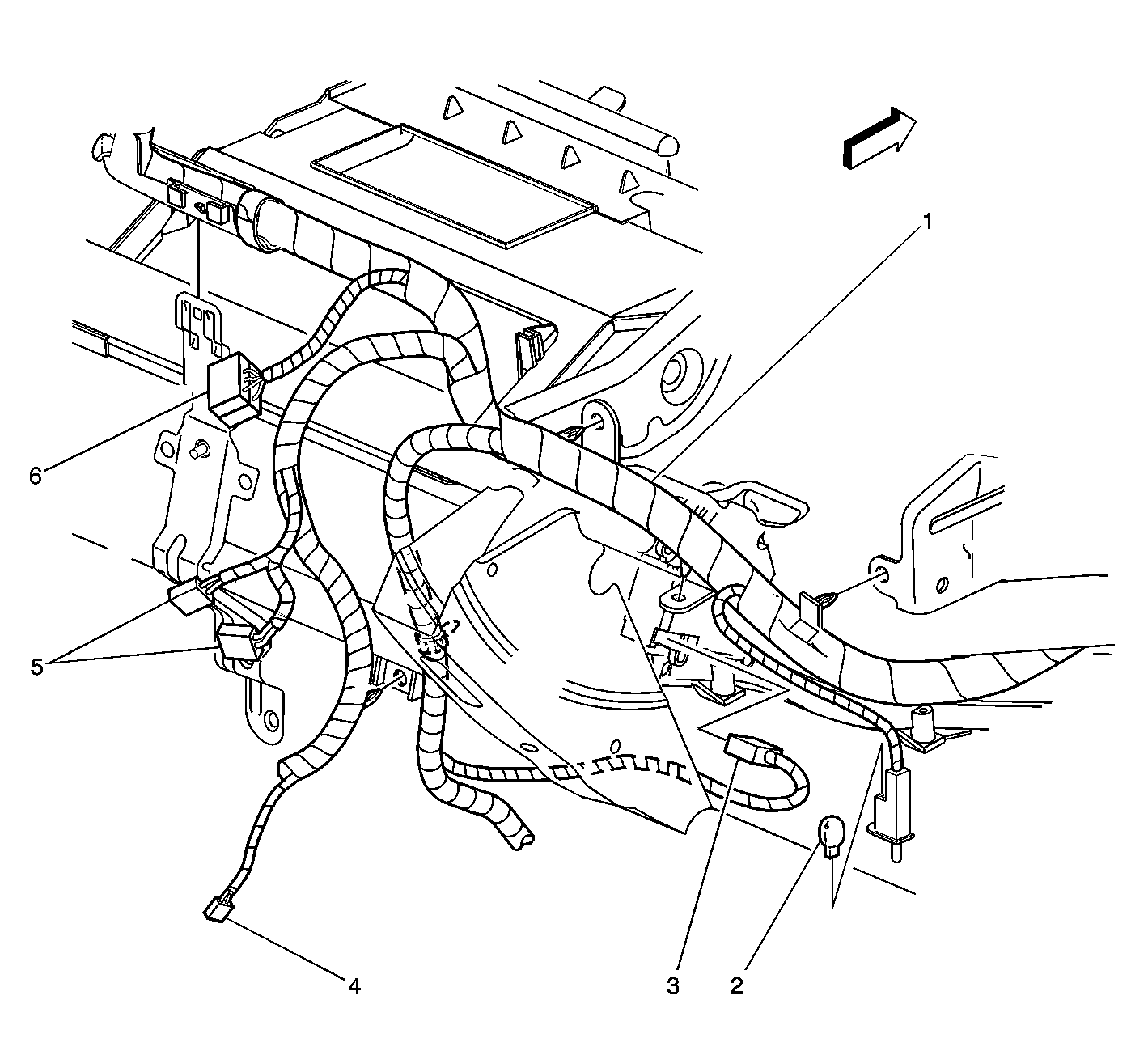

Fig 1: Top Right Side Of The Instrument Panel (I/P)

GM1445136

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel (I/P) Harness
2	I/P Compartment Lamp/Switch
3	Air Temperature Actuator Connector
4	Cigar Lighter Connector
5	HVAC Control Assembly Connector
6	Radio Connectors

Fig 2: Instrument Panel Component View

GM747979

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Ignition Switch
3	Traction Control Switch
4	Hazard Switch
5	Cigar Lighter
6	Steering Wheel Controls - Right
7	Cruise Control ON/OFF Switch
8	Steering Wheel Controls - Left
9	Fog Lamp Switch
10	Instrument Panel (I/P) Dimmer Switch
11	Turn Signal/Multifunction Switch
12	Instrument Panel Cluster (IPC)
