Removal Procedure

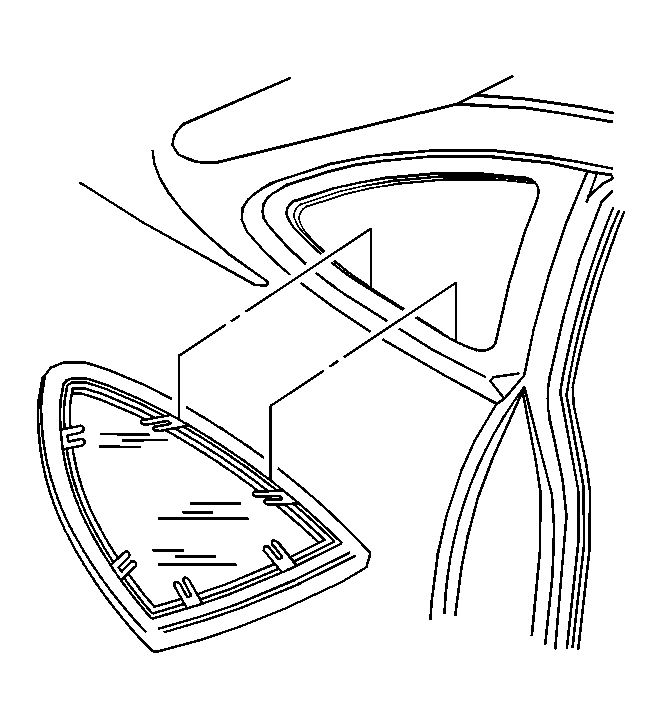

    Fig 1: View Of Rear Quarter Trim
    GM314153Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.
    IMPORTANT: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.
  1. Remove the rear quarter trim. Refer to Trim Panel Replacement - Rear Quarter Upper (Coupe) or Trim Panel Replacement - Rear Quarter Upper (Sedan) in Interior Trim.
    2. Fig 2: Separating Urethane Adhesive From Window
    GM71179Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.
    IMPORTANT: Keep the cutting edge of the tool against the window. Do this from inside the vehicle in order to protect the outer painted surface.
  2. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinch-weld flange.
    • The only suitable lubrication is clear water.
    • UseJ 39032  or equivalent in order to remove the window. See Special Tools .
    • Remove the quarter modular window from the pinch-weld flange.
