Power Window Schematics

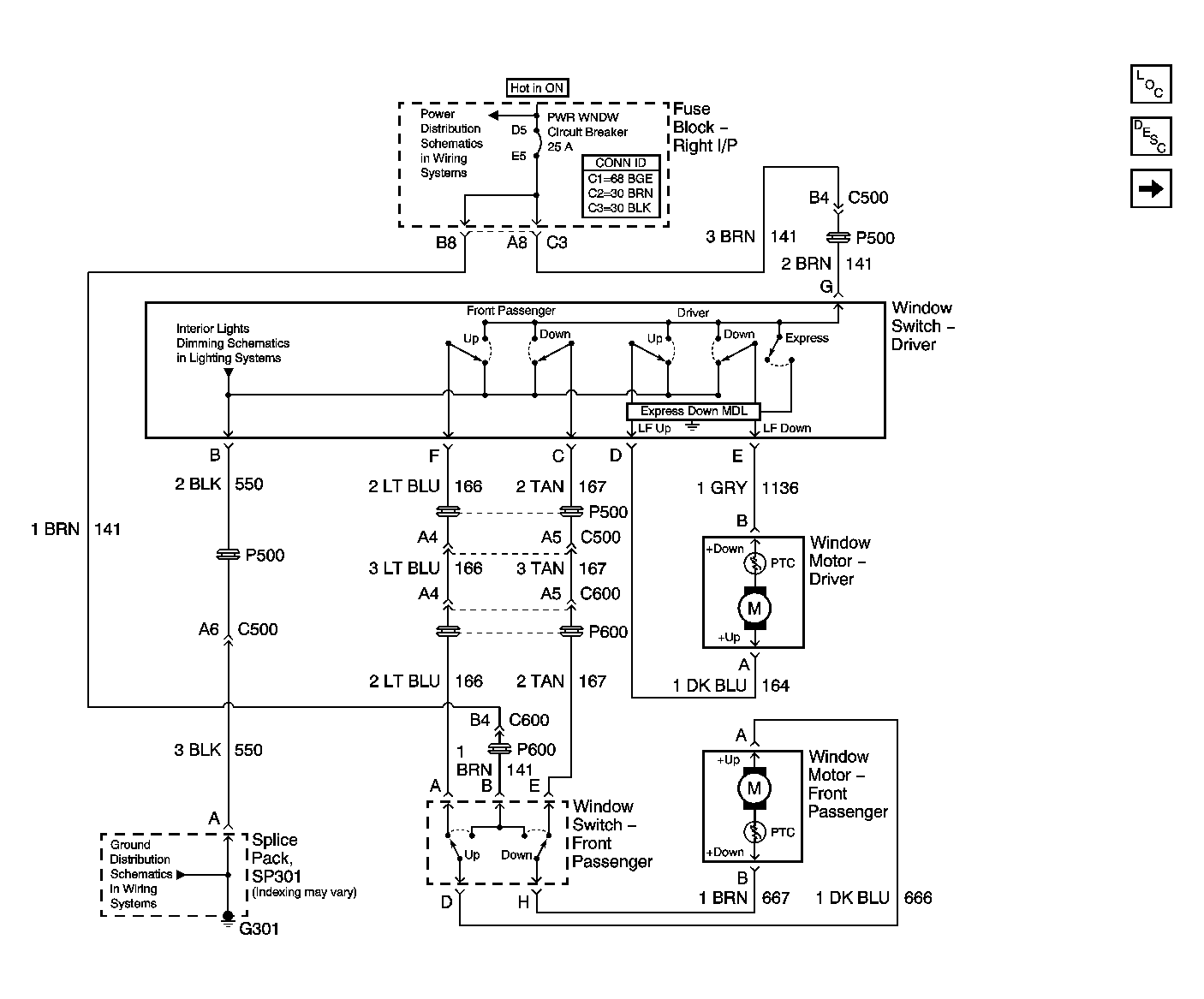

Fig 1: Power Window Schematic - Coupe
GM791426Courtesy of GENERAL MOTORS CORP.

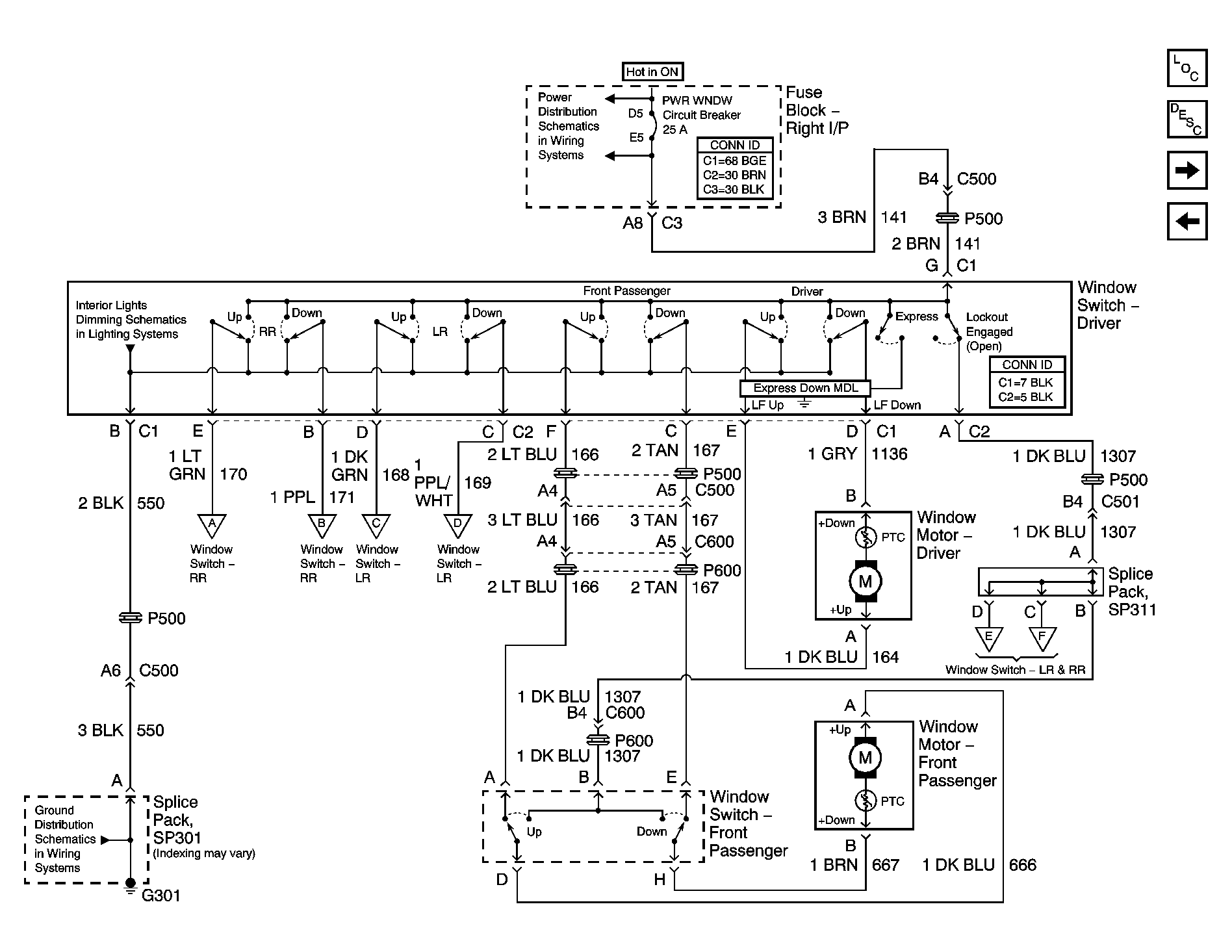

Fig 2: Front Windows Schematic - Sedan
GM791427Courtesy of GENERAL MOTORS CORP.

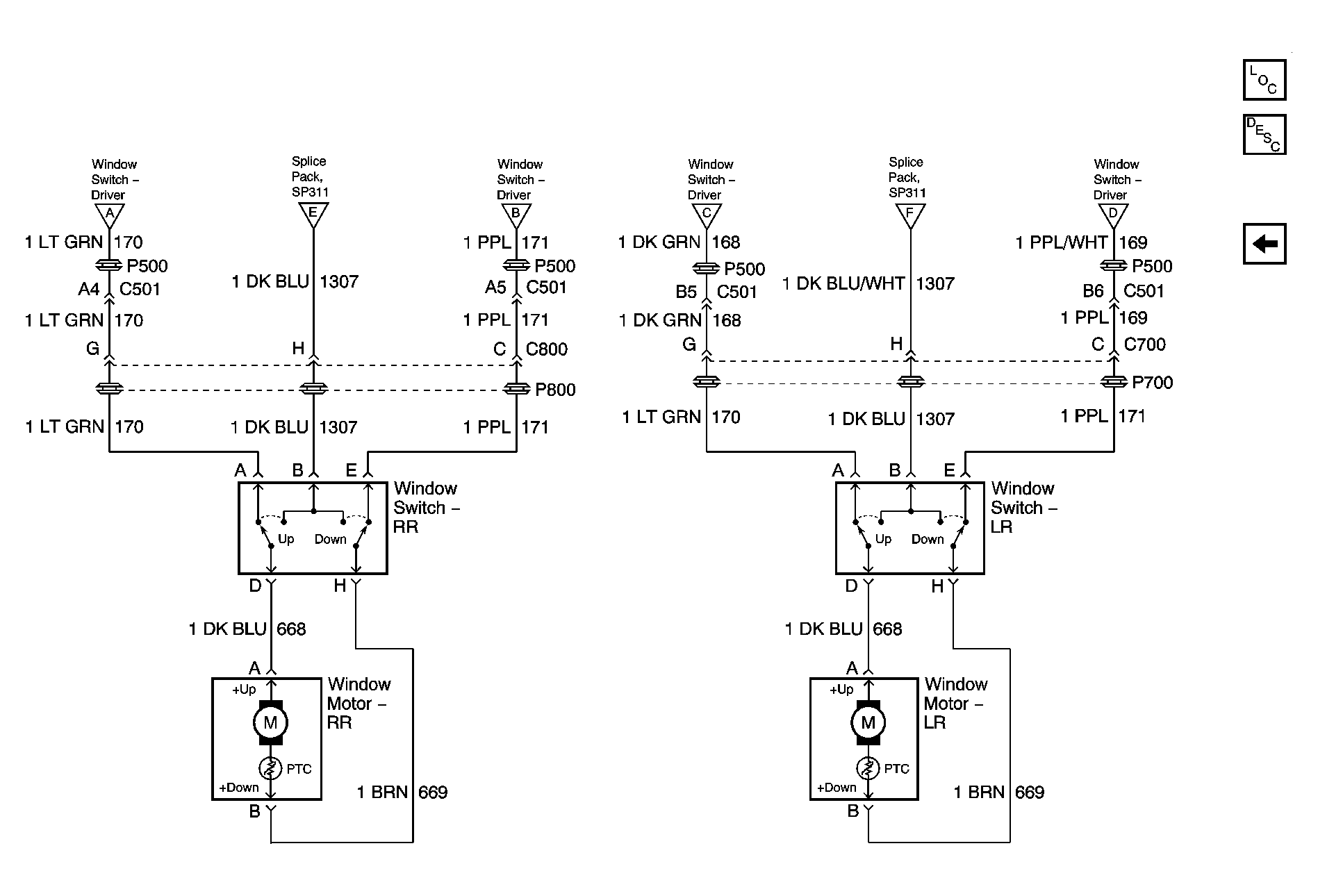

Fig 3: Rear Windows Schematic - Sedan
GM791428Courtesy of GENERAL MOTORS CORP.
