Power Distribution Schematics

Fig 1: Battery, RAD FAN LARGE, LIGHTING, ABS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: PARK LAMPS, STOP LAMPS, INTERIOR ILLUMINATION, HAZARD LAMPS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: ENGINE, FUEL PUMP, BCM/ENGINE CONTROL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

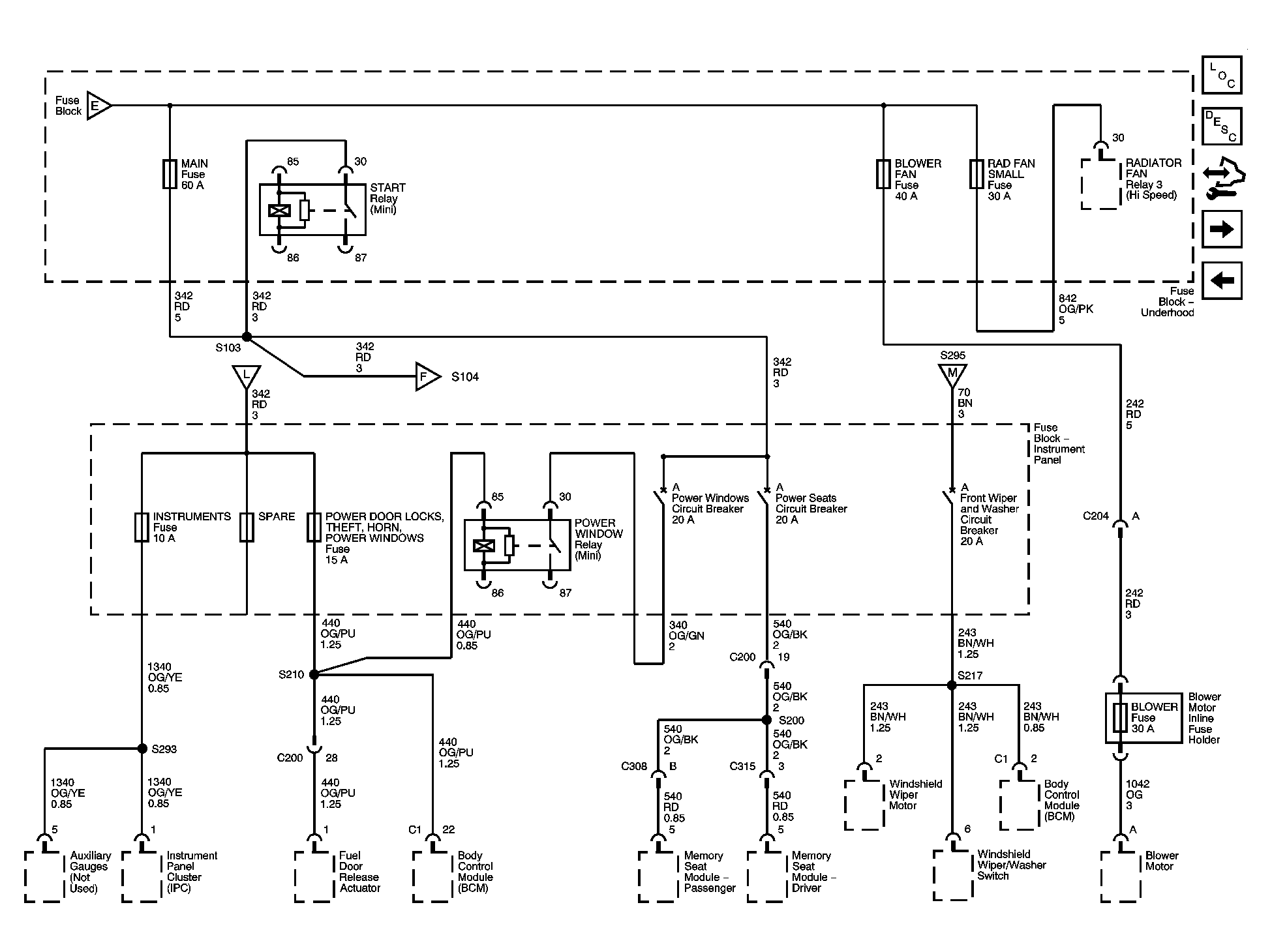

Fig 4: MAIN, BLOWER FAN, RAD FAN SMALL, INSTRUMENTS, POWER DOOR LOCKS, THEFT, HORN, and POWER WINDOWS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: HEATED REAR WINDOW, RADIO, CELLULAR PHONE, SUB-WOOFER, AMPLIFIER, IGNITION SWITCH & HORN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Accessory Control Relay, RADIO, CELLULAR PHONE, ACC SOCKET, ECM SIGNAL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Control Relay, ABS and TCS, SRS, CIGAR LIGHTER, CRUISE CONTROL, POWER MIRROR & SHIFTLOCK CONTROL CFuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: TURN SIGNALS and BACKUP LAMPS, HEATED REAR WINDOW, HVAC & INSTRUMENTS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: EFI Relay, AUTO TRANS & ENGINE SENSORS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Fuel Injectors & Ignition Module Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
