HVAC Component Views

Fig 1: Instrument Panel Switch Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp and Fog Lamp Switch
2	Instrument Panel Cluster
3	Trip Computer Switch
4	HVAC Control Assembly
5	Keyless Entry Receiver/Automatic Light Control Sensor
6	Hazard Lamp Switch

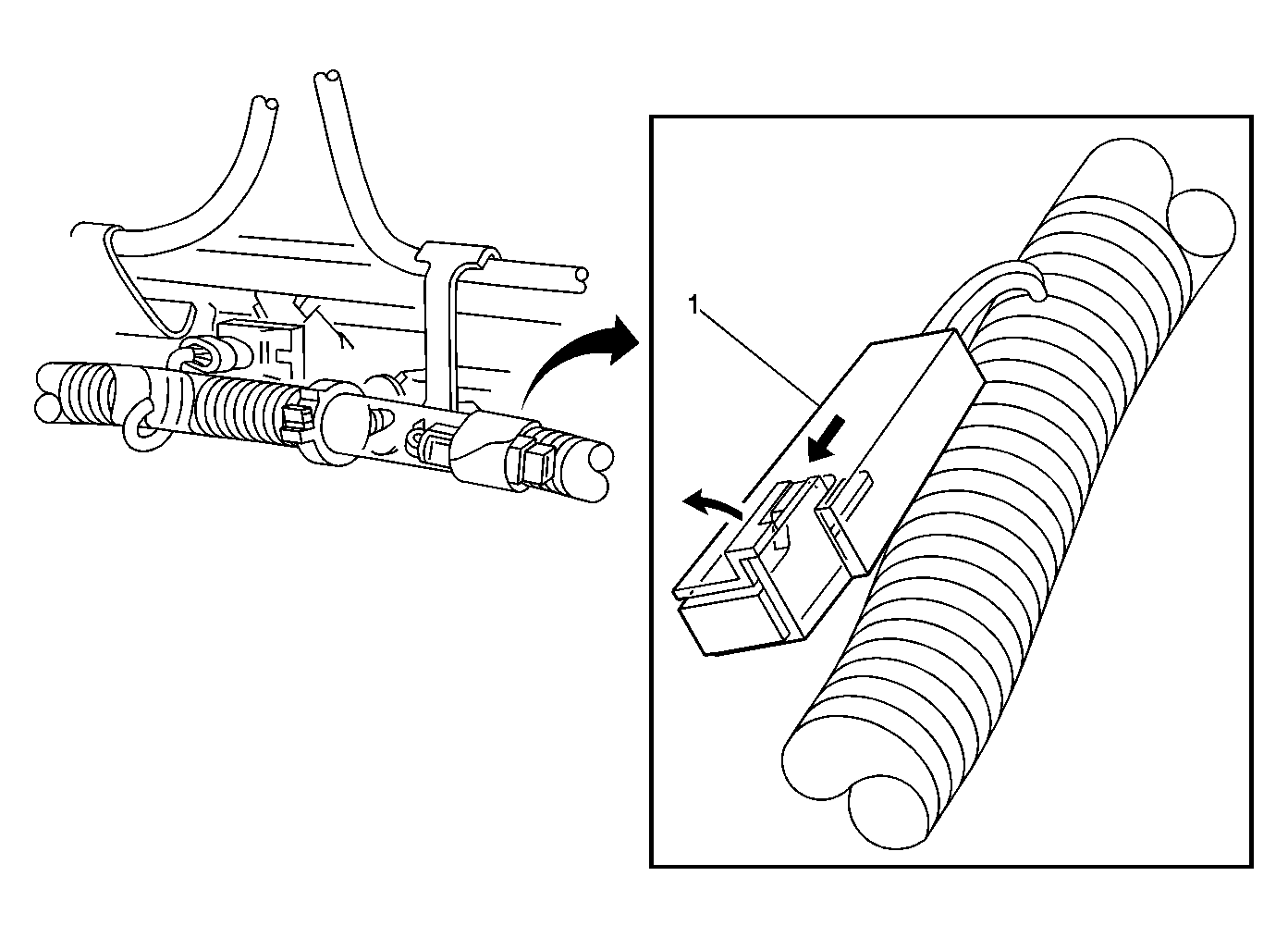

Fig 2: A/C Compressor Suppression Diode Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Suppression Diode

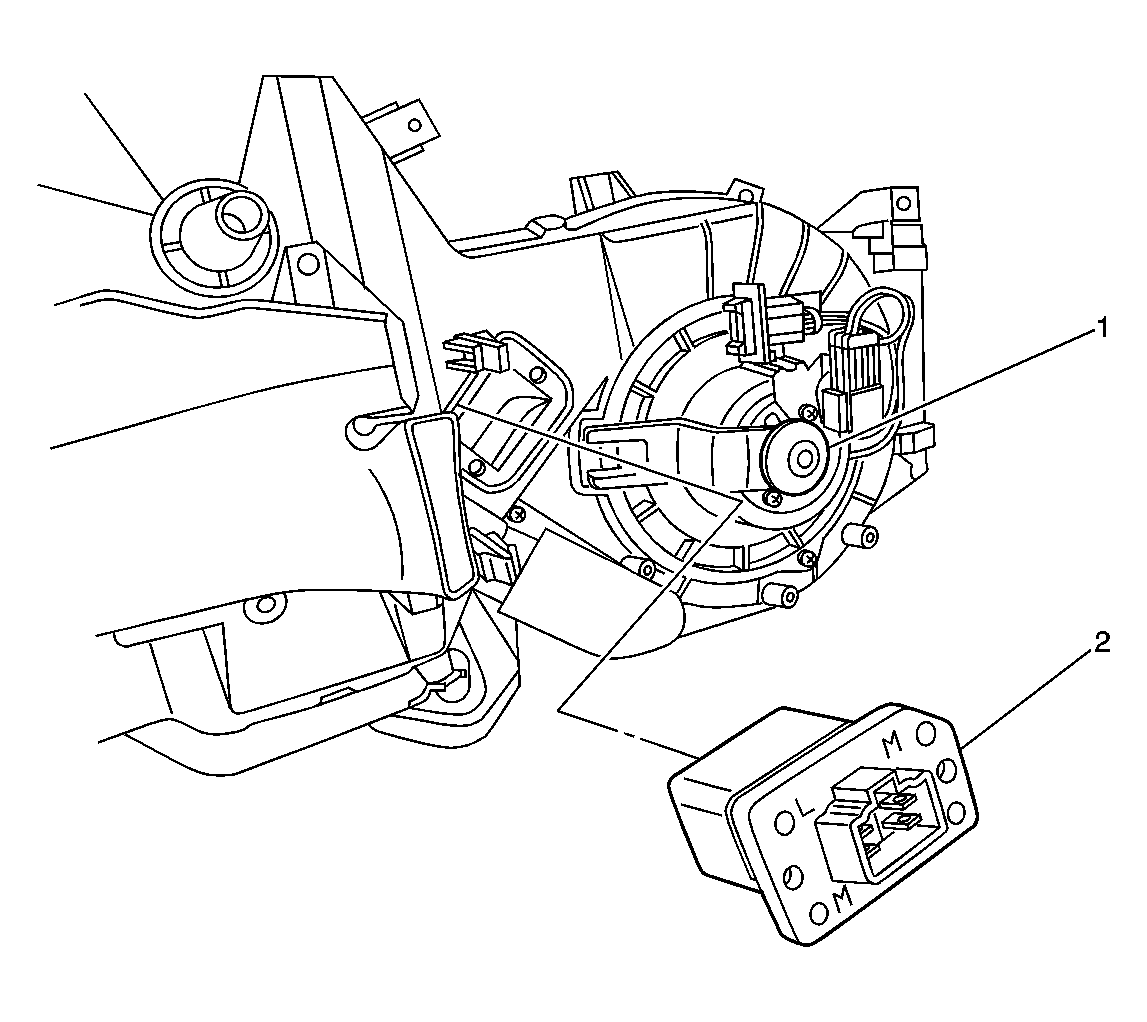

Fig 3: Blower Motor & Resistor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Resistor

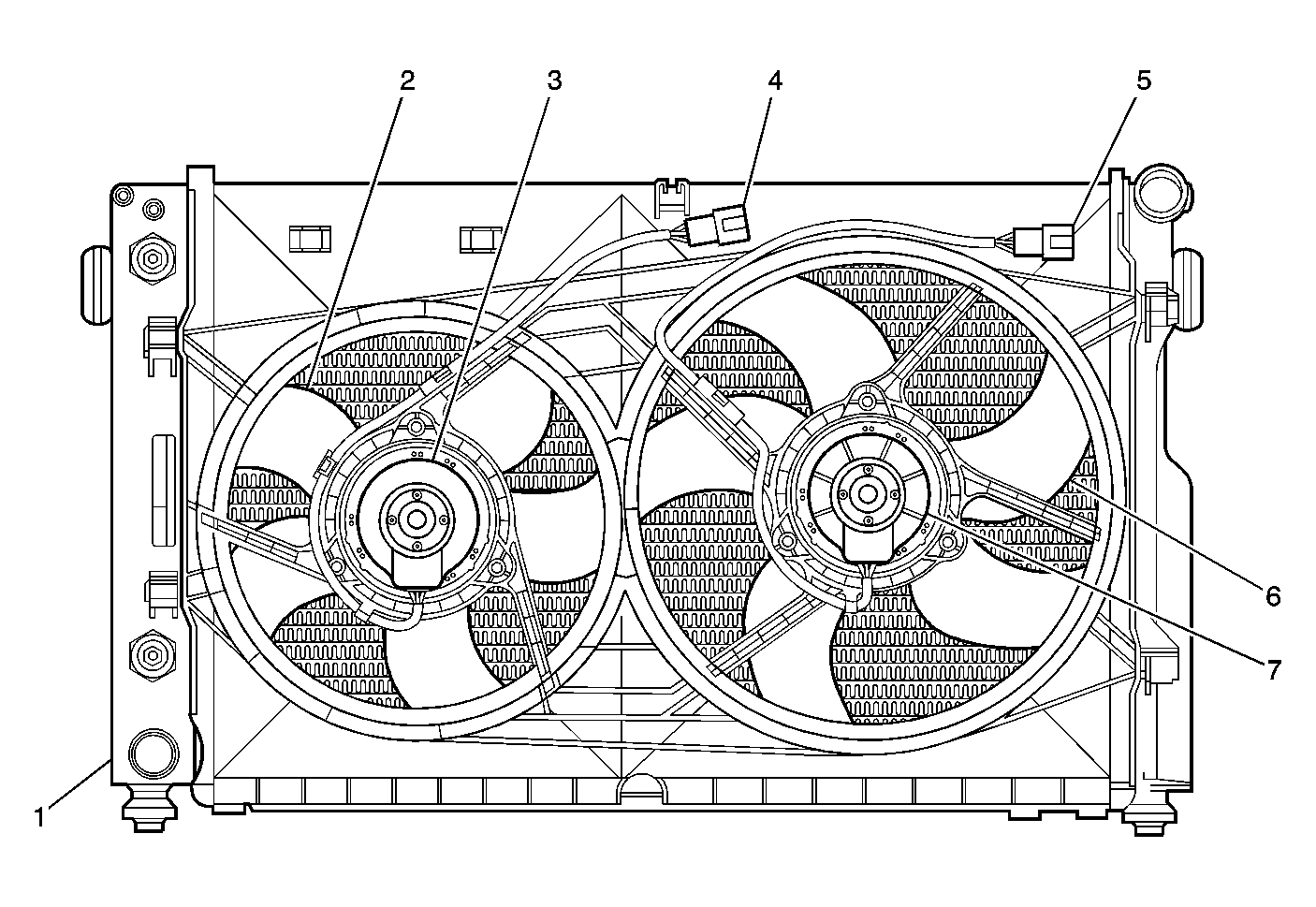

Fig 4: Cooling Fans Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator
2	LH Side Fan - 5 Blade
3	LH Side Fan Motor - 180 Watt, Dual Speed
4	LH Side Fan Connector (3 Terminal)
5	RH Side Fan Connector (3 Terminal)
6	RH Side Fan - 5 Blade
7	RH Side Fan Motor - 180 Watt, Dual Speed

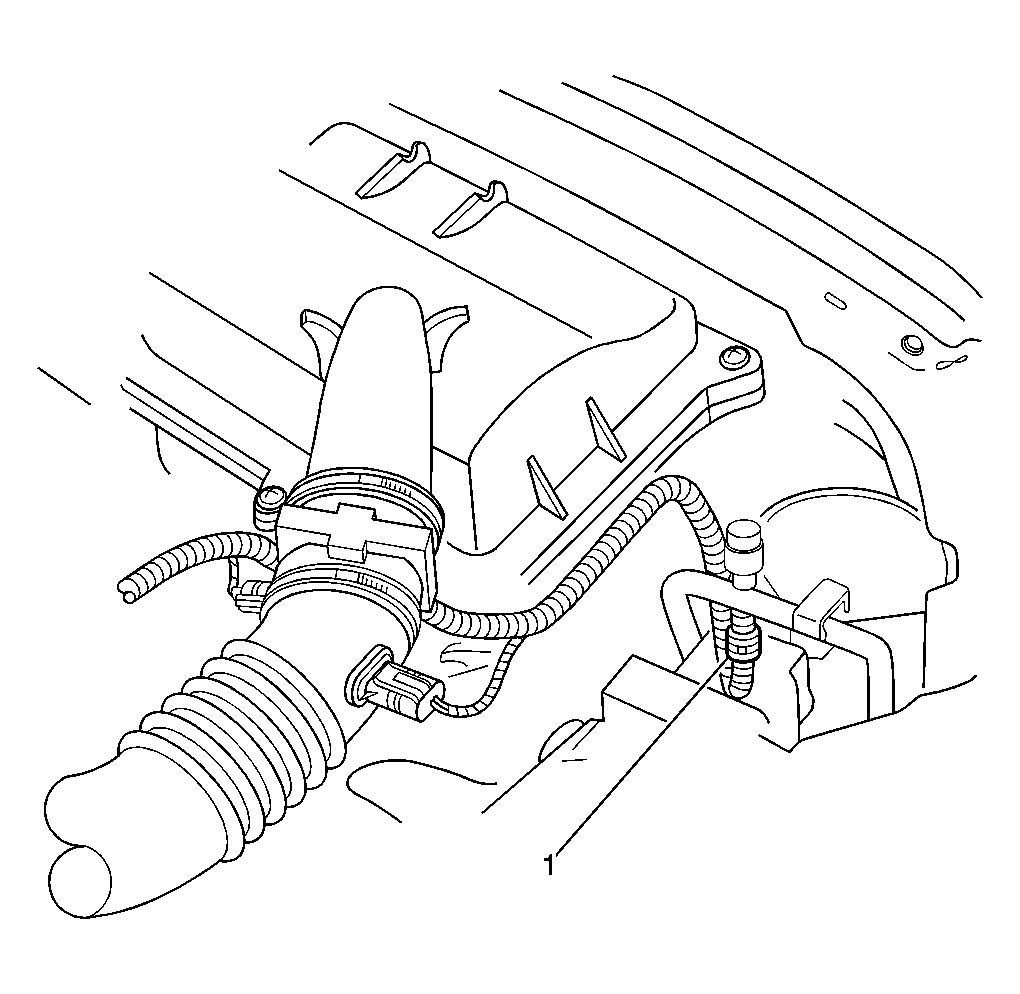

Fig 5: Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Refrigerent Pressure Sensor
