Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

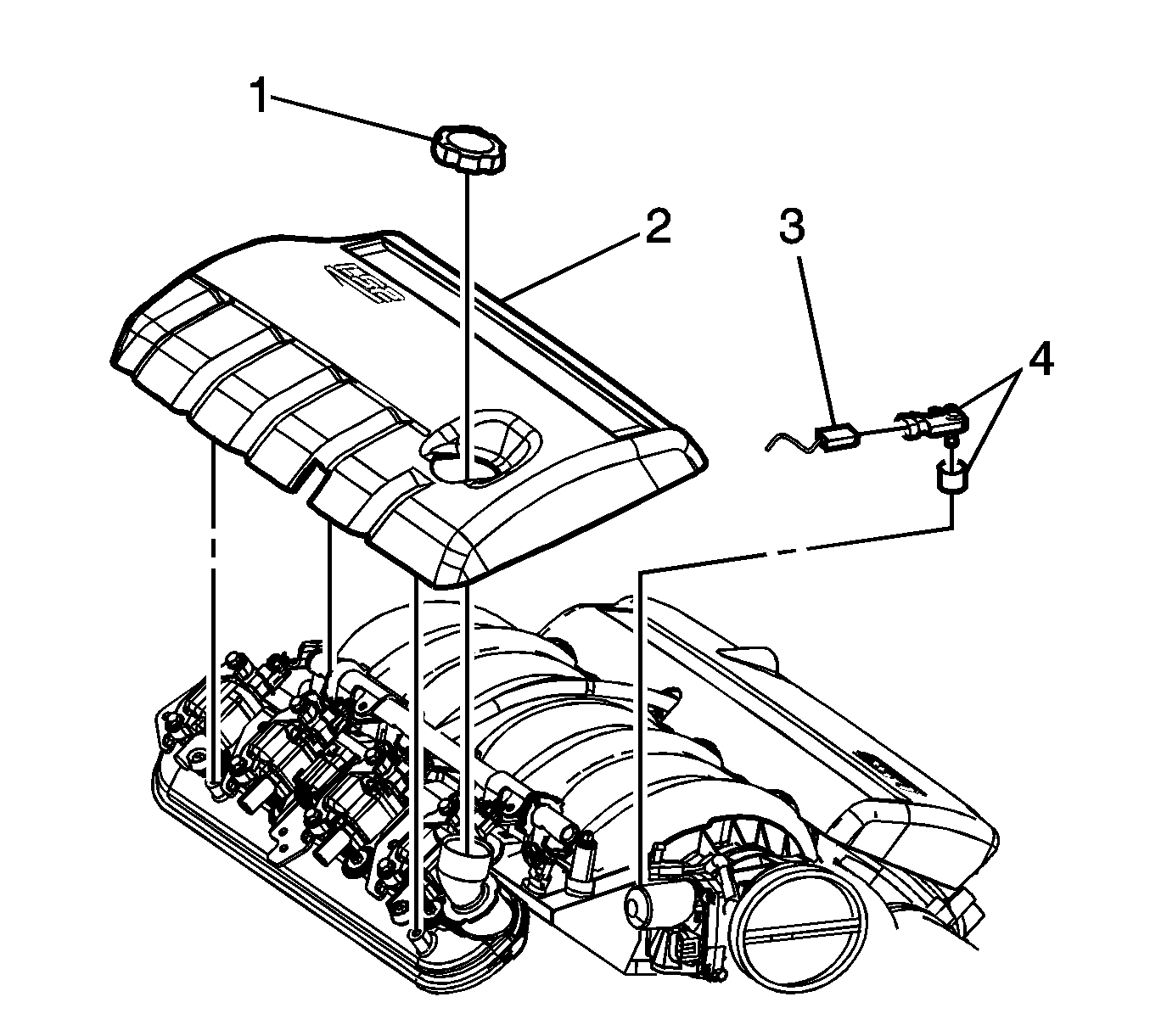

    Fig 1: Oil Filler Cap, Right Sight Shield, MAP Sensor & Electrical Connector
    GM1464034Courtesy of GENERAL MOTORS CORP.
  1. Reconnect the MAP sensor electrical connector (3) to the engine wiring harness.
  2. Install the MAP sensor (4).
  3. Install engine sight shield (2).
  4. Install the oil filler cap (1).
