Power Door Systems Component Views

Fig 1: Left Front Door Schematic
GM1343727Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Mirror Switch
2 Driver Door Courtesy Lamp

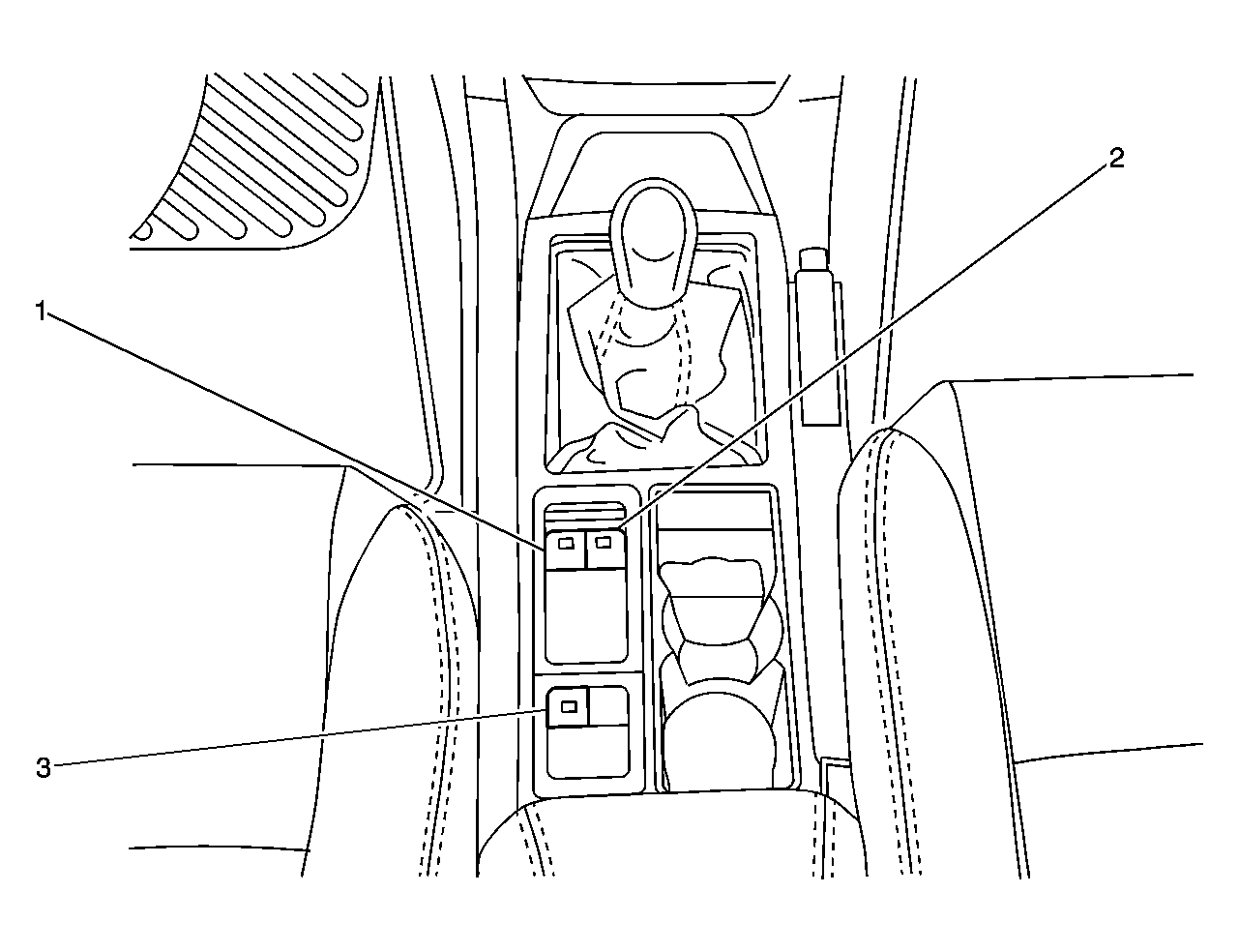

Fig 2: Power Window Switches
GM1347612Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Window Switch
2 Passenger Window Switch
3 Traction Control Switch
