Lighting Systems Component Views

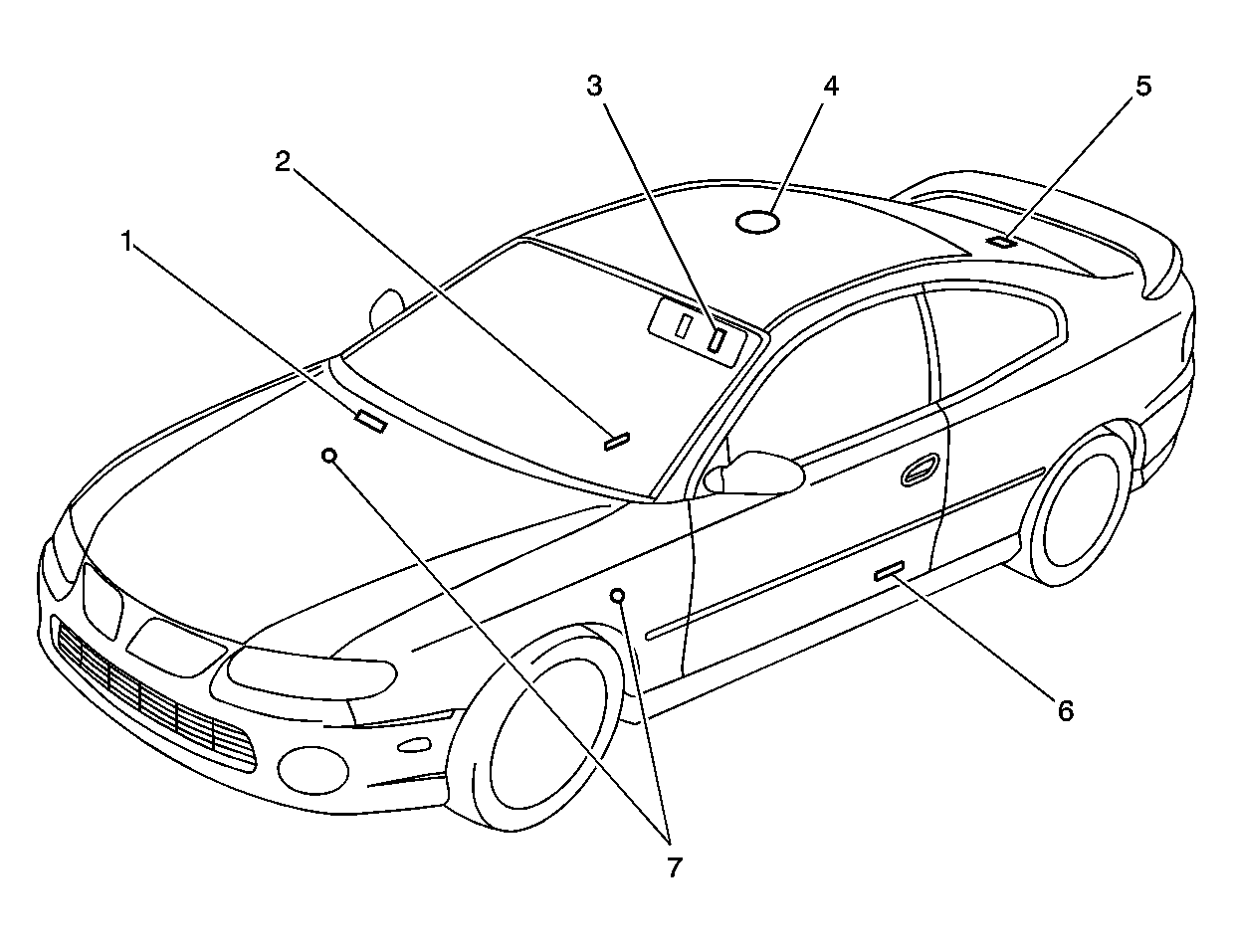

Fig 1: Lighting System Component Views
GM1311162Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Compartment Courtesy Lamp
2 Center Console Compartment Lamp
3 Visor Vanity Mirror Lamps
4 Dome and Reading Lamps
5 Trunk Lamp
6 Driver and Passenger Door Courtesy Lamps
7 Stepwell Lamps

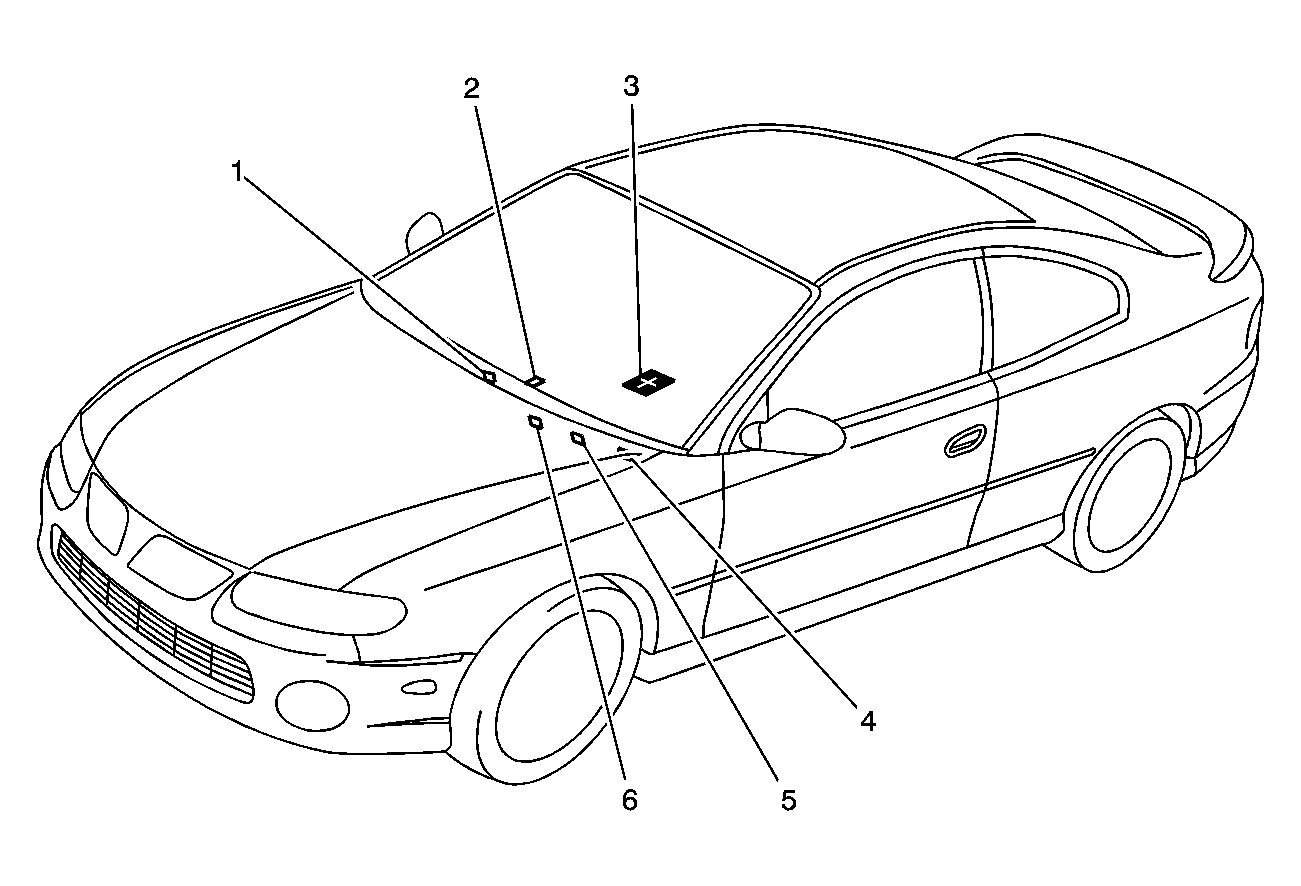

Fig 2: Lighting System Switch Component Views
GM1333468Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hazard Warning Switch
2 Traction Control Switch (Automatic Transmission)
3 Traction Control Switch (Manual Transmission)
4 Headlamp Switch
5 Fuel Tank Filler Door Lock Release Switch
6 Trip Computer Switch

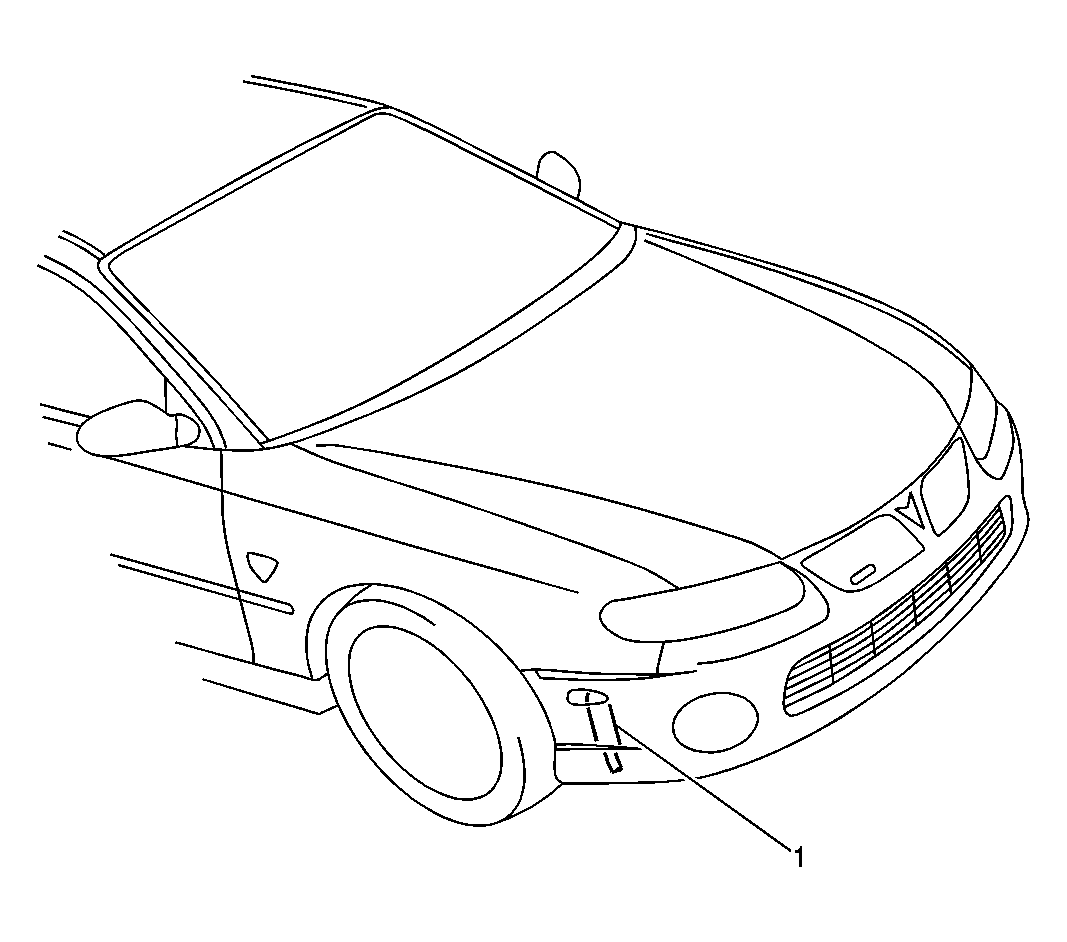

Fig 3: DRL Component Views
GM1333491Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Running Lamp Dimmer Assembly
Fig 4: Instrument Panel Component Views
GM1347272Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Mirror Switch
2 Headlamp and Fog Lamp Switch
3 Turn Signal/Headlamp Dimmer and Cruise Control Switch
4 Trunk Release Switch
5 Horn Switch
6 Trip Computer Switch
7 Wiper/Washer Switch
Fig 5: Instrument Panel Switch Component Views
GM1347451Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp and Fog Lamp Switch
2 Instrument Panel Cluster
3 Trip Computer Switch
4 HVAC Control Assembly
5 Keyless Entry Receiver/Automatic Light Control Sensor
6 Hazard Lamp Switch

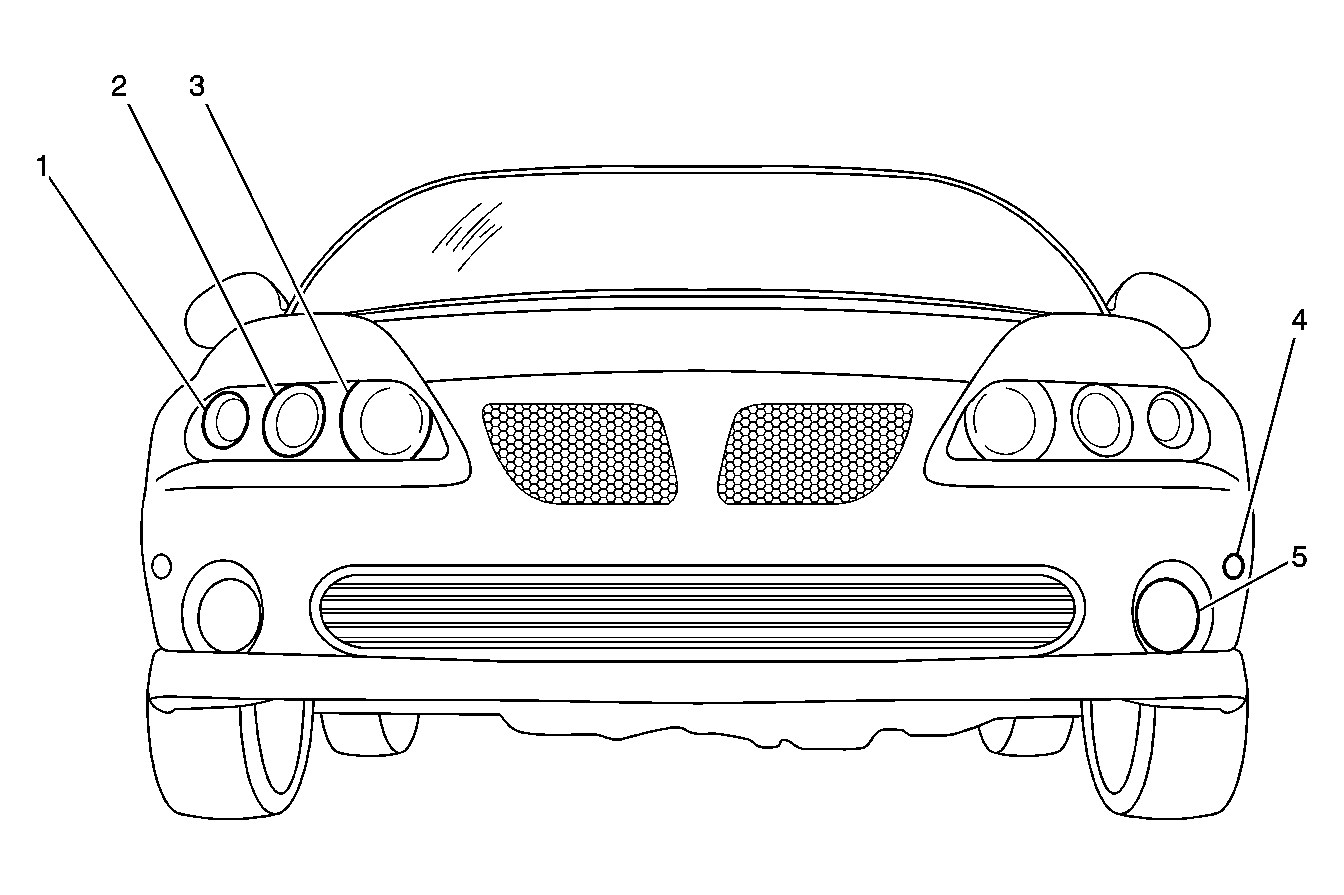

Fig 6: Front Lighting
GM1395006Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp
2 Low Beam Headlamp
3 High Beam Headlamp
4 Side Marker
5 Fog Lamp

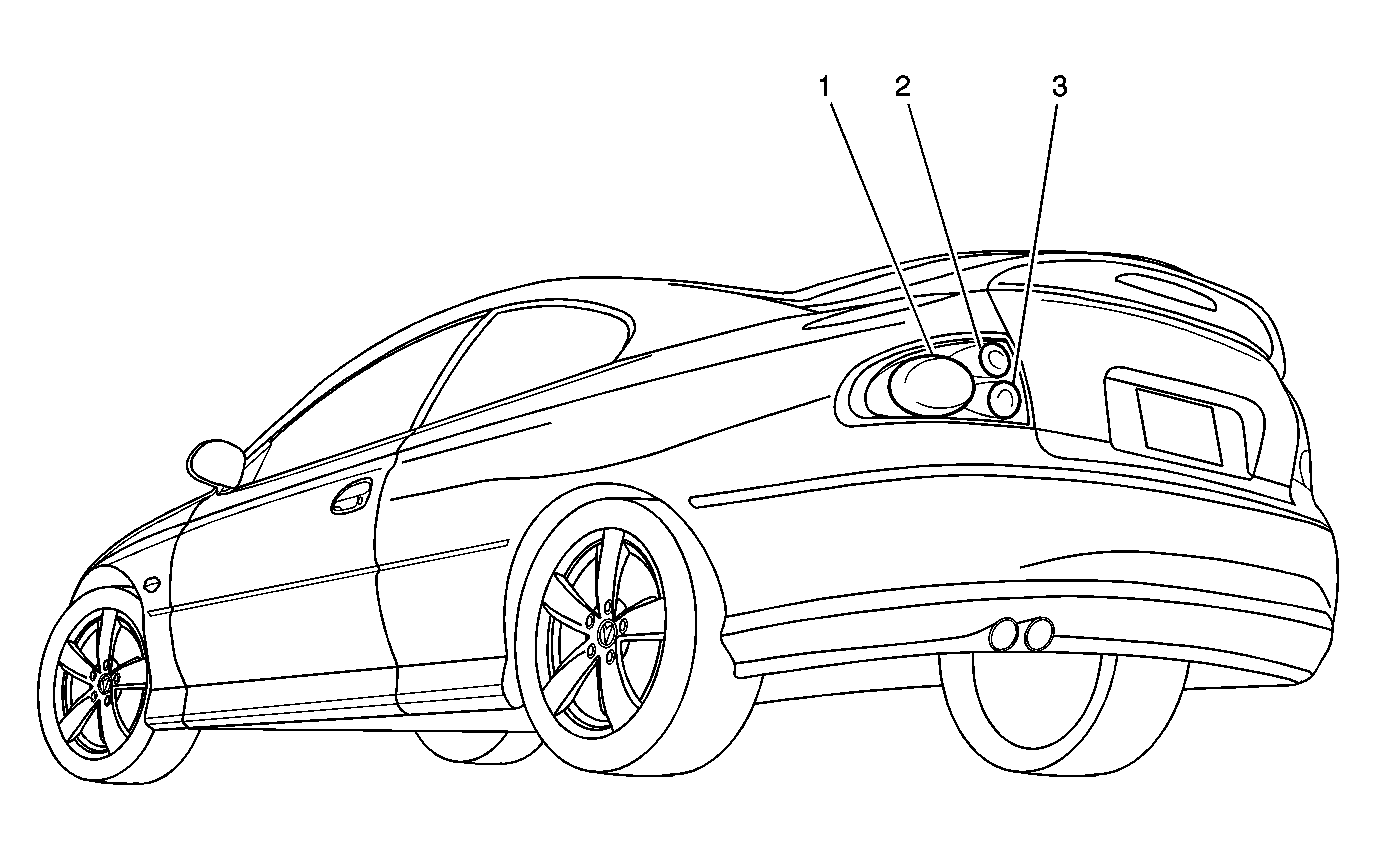

Fig 7: Rear Lighting
GM1395010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Stop/Tail/Side Marker Lamp
2 Backup Lamp
3 Turn Signal Lamp
