Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the antenna to the bracket.

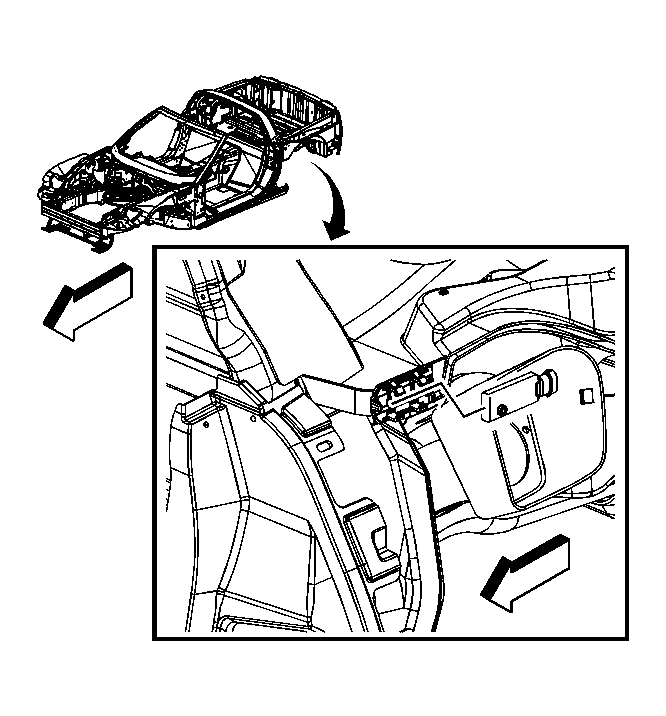

    2. Fig 1: Engaging Antenna To Bracket
    GM1654758Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel filler pocket. Refer to FUEL DOOR AND FUEL DOOR POCKET REPLACEMENT .
  3. Connect the fuel filler tube.
  4. Install the left rear wheel inner panel. Refer to WHEELHOUSE LINER PANEL REPLACEMENT - REAR .
