Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

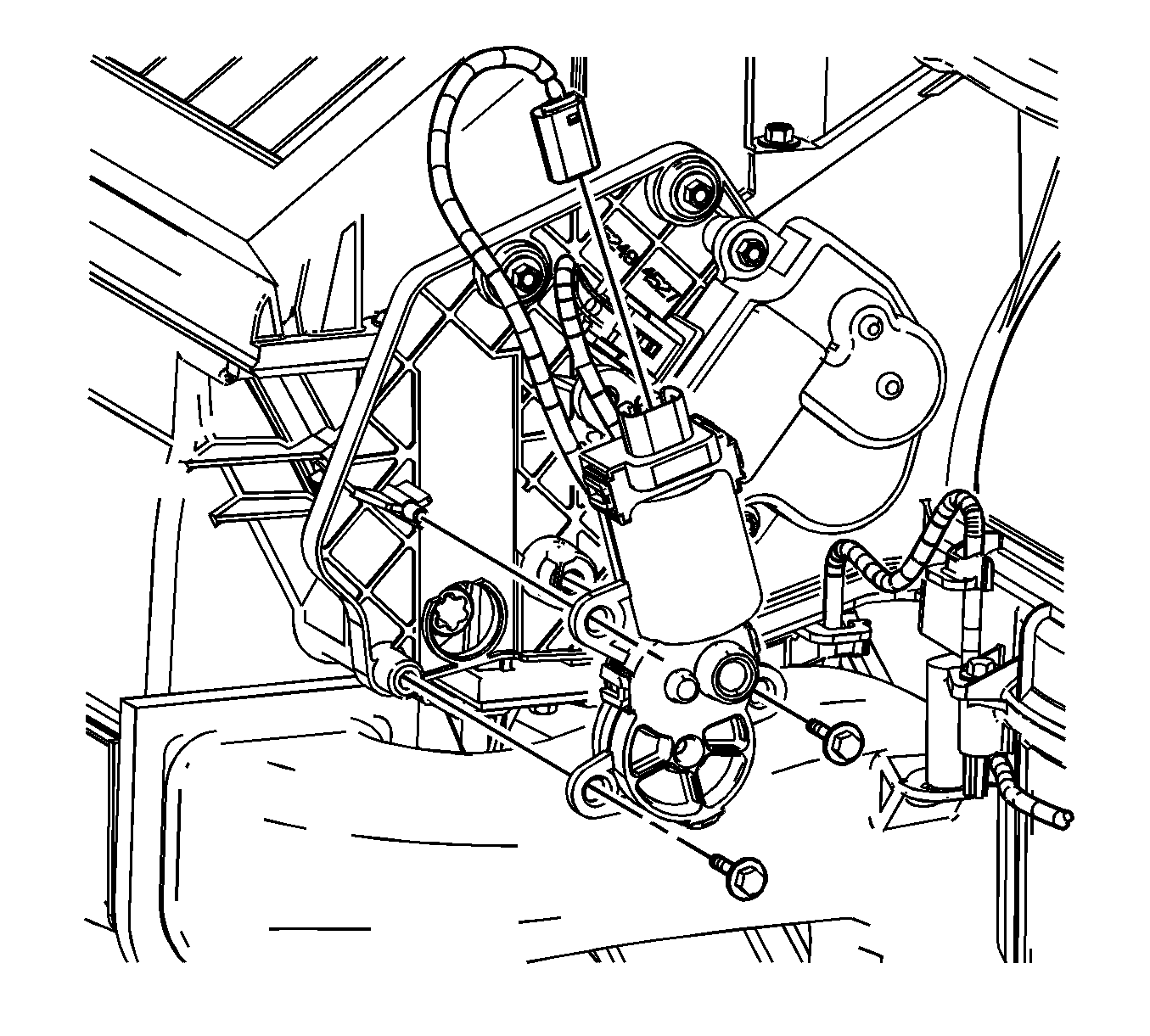

Fig 1: Identifying Mode Actuator & Components

Courtesy of GENERAL MOTORS CORP.

Install the mode actuator.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the mode actuator mounting screws.
Tighten: Tighten the screws to 1.6 N.m (14 lb in).
Connect the mode actuator electrical connector.
Install the SIR bracket. Refer to Bracket Replacement - SIR in Instrument Panel, Gages and Console.
Recalibrate the actuators. Refer to Re-Calibrating Actuators .
