Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

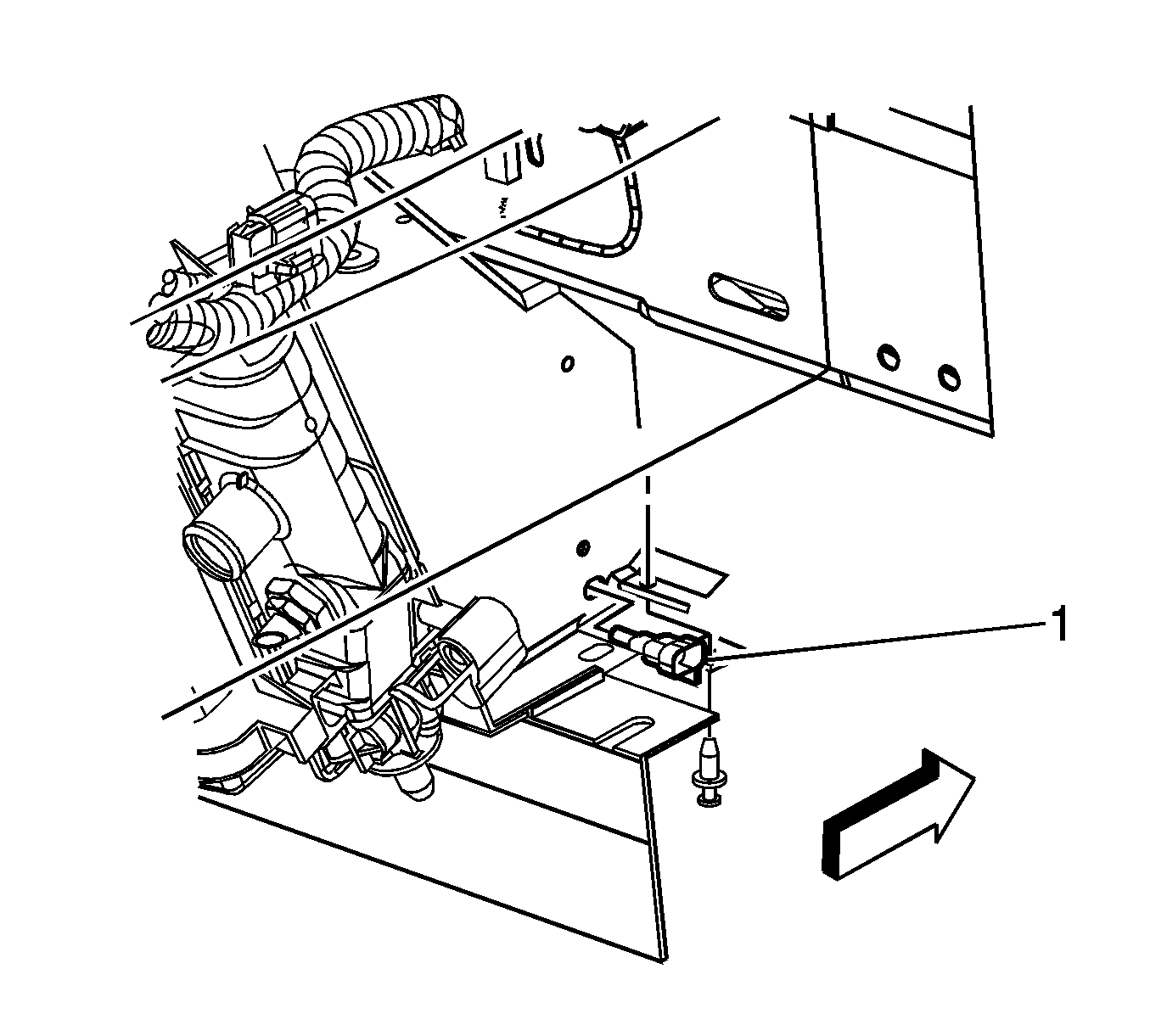

    Fig 1: Identifying Ambient Air Temperature Sensor & Electrical Connector At Radiator Support
    GM922612Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The ambient air temperature sensor must be orientated so that the sensor probe end is inboard and the electrical connector is outboard.
  1. Install the ambient air temperature sensor to the lower radiator support.
  2. Install the push-in retainer to secure the ambient air temperature sensor to the radiator support.
  3. Connect the ambient air temperature sensor electrical connector.
