Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

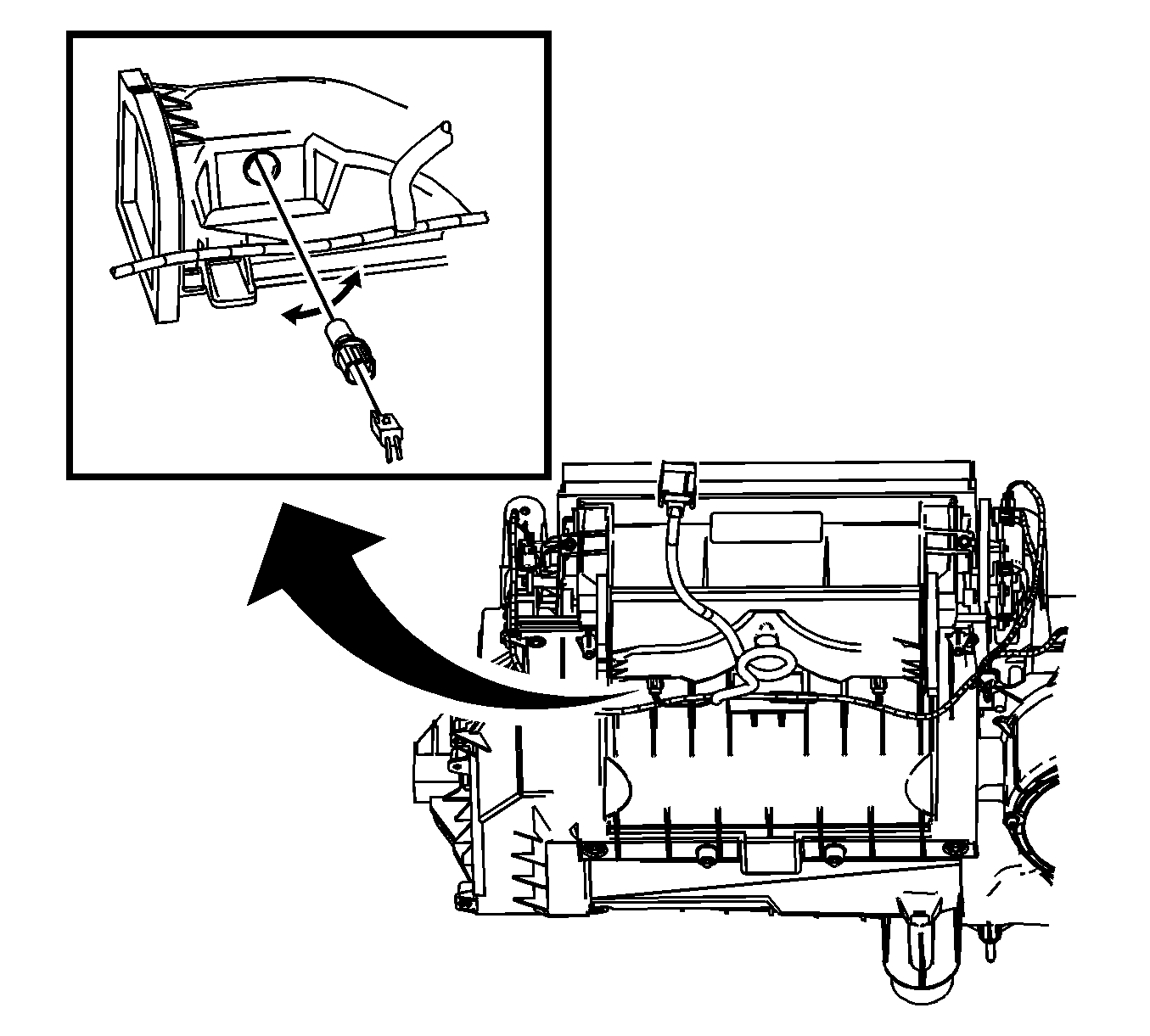

Fig 1: Identifying DTM Sensor & Electrical Connector (Lower Left)

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Rotate the DTM sensor clockwise to engage the sensor to the lower duct.

Install the lower LH DTM sensor to the HVAC module.
Connect the lower LH DTM sensor electrical connector.
Install the HVAC module. Refer to HVAC Module Assembly Replacement in Heating, Ventilation and Air Conditioning.
