Door Lock/Indicator Schematics

Fig 1: Door Lock Switch, Body Control Module (BCM) & Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

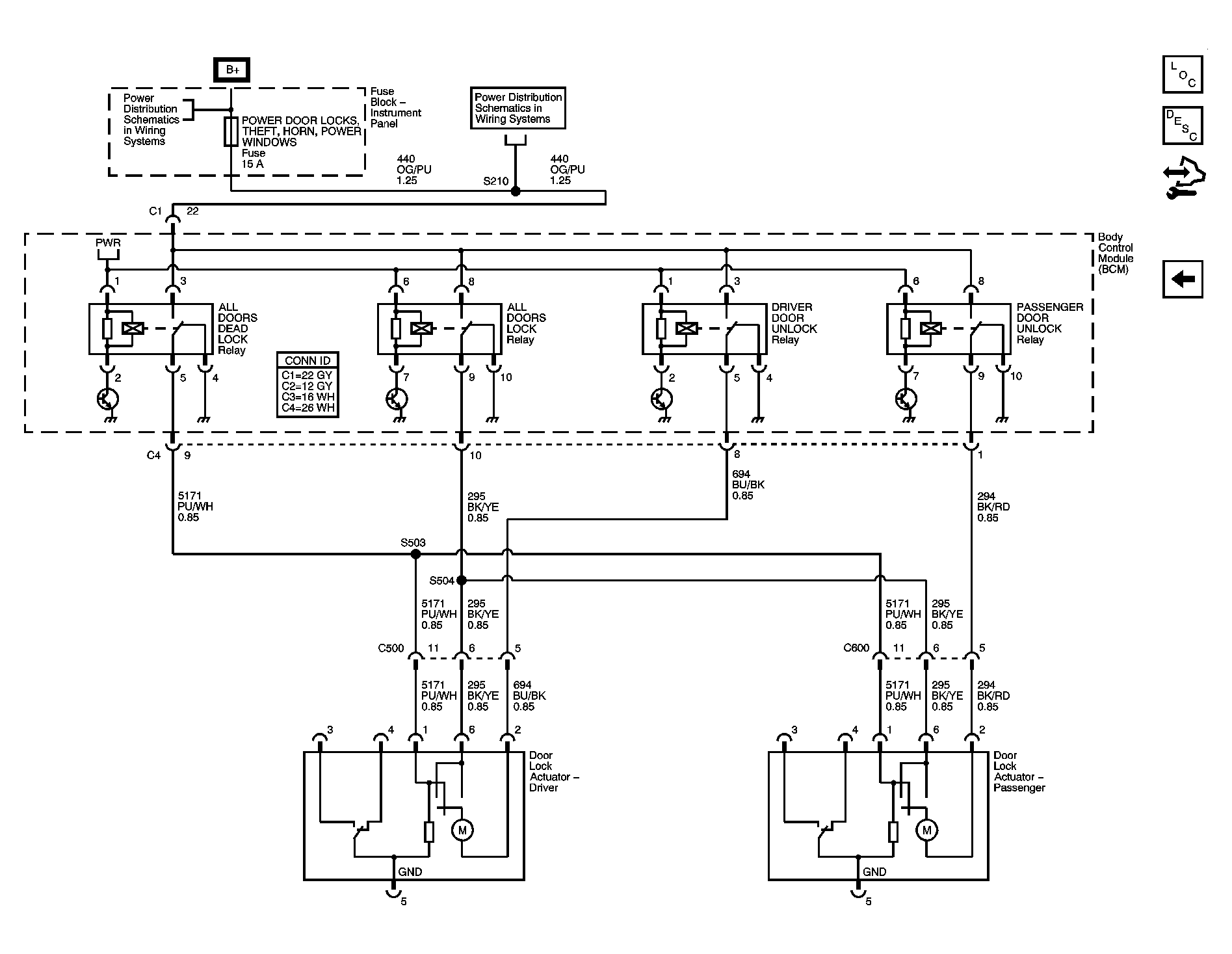

Fig 2: Door Lock Relays, Body Control Module (BCM) & Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.
