Installation Procedure

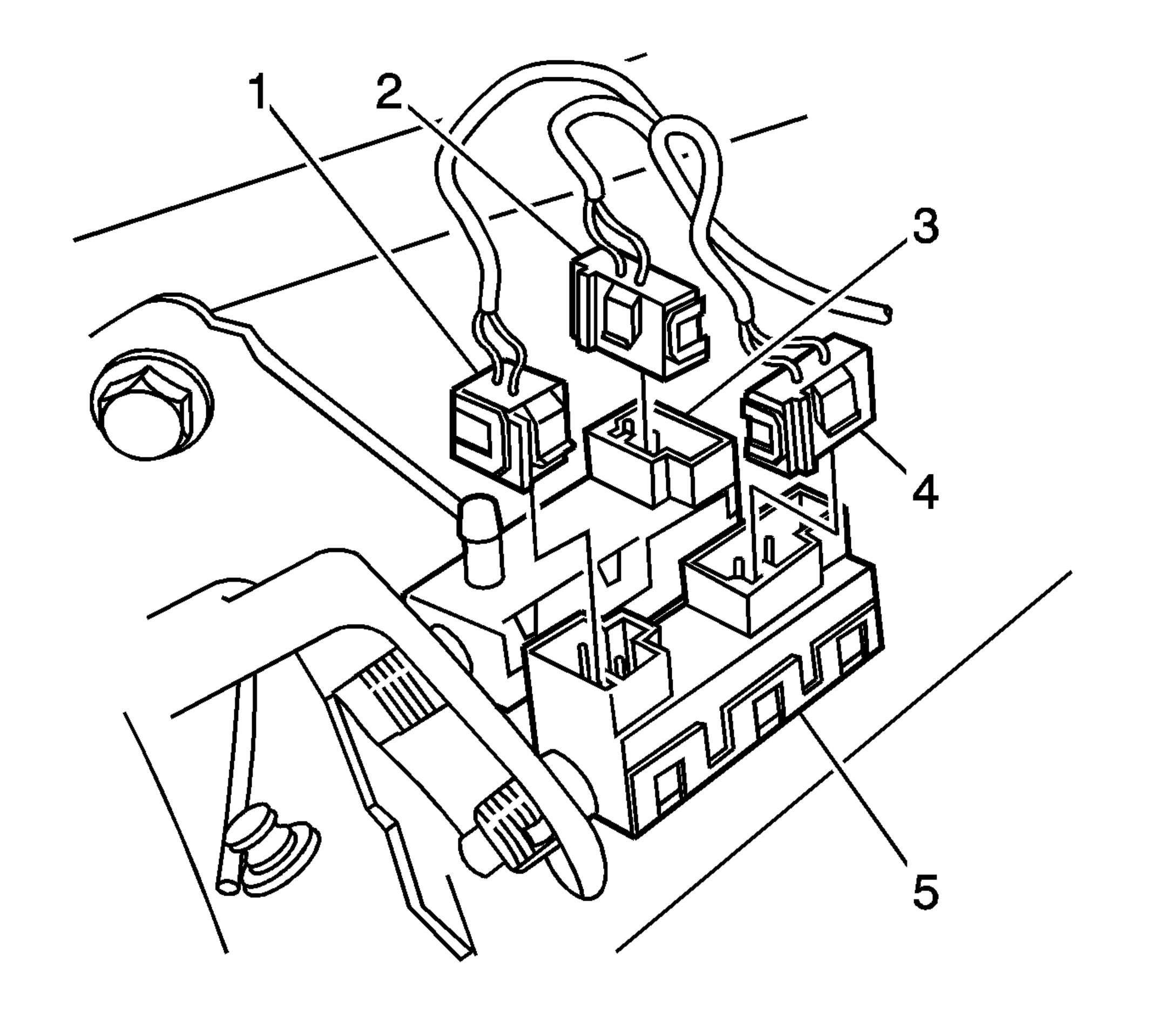

    Fig 1: Identifying Cruise Control Stop Lamp Switches
    GM1547484Courtesy of GENERAL MOTORS CORP.
  1. Install the stop lamp switch (5) to the brake pedal bracket.
  2. Connect the brake transmission shift interlock electrical connector (4) to the stop lamp switch (5).
  3. Connect the stop lamp electrical connector (1) to the stop lamp switch (5).
  4. Adjust the stop lamp switch. Refer to Stop Lamp Switch Adjustment .
  5. Install the center HVAC duct.
  6. Install the left kneebolster panel. Refer to Knee Bolster Replacement - Left in Instrument Panel, Gages and Console.
