Installation Procedure

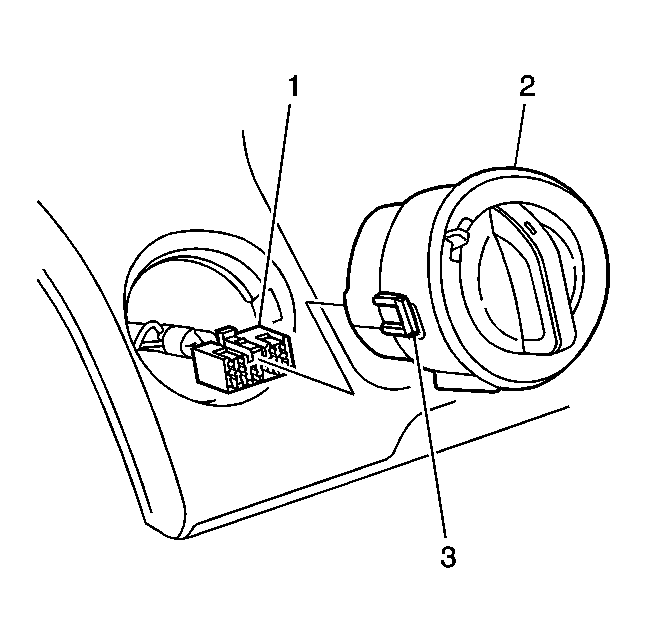

    Fig 1: View Of Wiring Connector, Switch & Retaining Clips
    GM1360611Courtesy of GENERAL MOTORS CORP.
  1. Connect the wiring connector (1) to the switch (2).
  2. Install the switch (2) to the panel, making sure the retaining clips (3) are engaged.
  3. Install the driver side outer duct. Refer to Instrument Panel (I/P) Air Outlet Ducts Replacement in HVAC.
  4. Install the left-hand instrument panel outer cover. Refer to Instrument Panel (I/P) Outer Trim Cover Replacement .
  5. Install the instrument panel cluster trim panel (1). Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
