Installation Procedure

  1. Install the transaxle mount to the frame.
    2. Fig 1: Removing Frame To Side Transmission Mount Bolts (W/LX9)
    GM1229798Courtesy of GENERAL MOTORS CORP.
  2. Install the transmission mount to frame bolts. Hand tighten only.
  3. Use the jackstand to lower the transmission mount bracket on to the transmission mount studs.

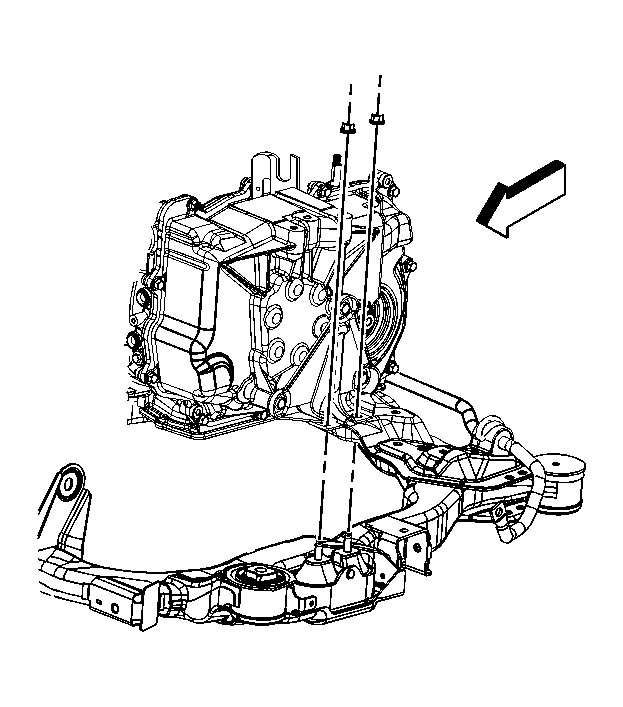

    4. Fig 2: Removing Transmission Mount Upper Nuts
    GM1229801Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission mount to bracket upper nut. Hand tighten only.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Tighten the transmission mount nut and bolts.

    Tighten:

    • Tighten the transmission mount upper nuts to 50 N.m (37 lb ft).
    • Tighten the transmission mount lower bolts to 50 N.m (37 lb ft).

  6. Install the left splash shield. Refer to Radiator Air Baffle and Deflector Replacement - Lower in Engine Cooling.
  7. Install the left front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Lower the vehicle.
