Installation Procedure

  1. Install the controls and the control harness to the steering wheel.
    2. Fig 1: Steering Wheel, Shaft & Nut
    GM294367Courtesy of GENERAL MOTORS CORP.
  2. Route the steering column wiring through the steering wheel.
  3. Install the steering wheel.

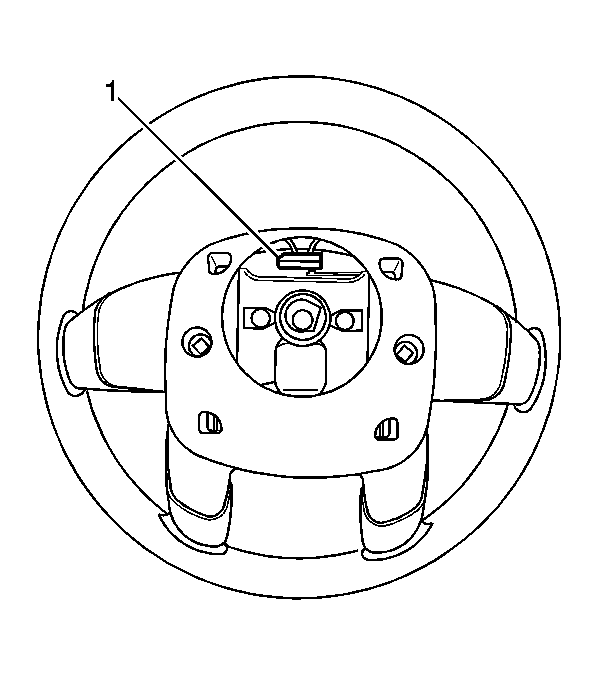

    4. Fig 2: Disconnecting Steering Wheel Control Electrical Connector
    GM1555254Courtesy of GENERAL MOTORS CORP.
  4. Connect the steering wheel control electrical connector (1).
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the steering wheel nut.

    Tighten:  Tighten the nut to 32 N.m (24 lb ft).

  6. Install the inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
  7. Install the upper steering column trim cover. Refer to Steering Column Trim Covers Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
