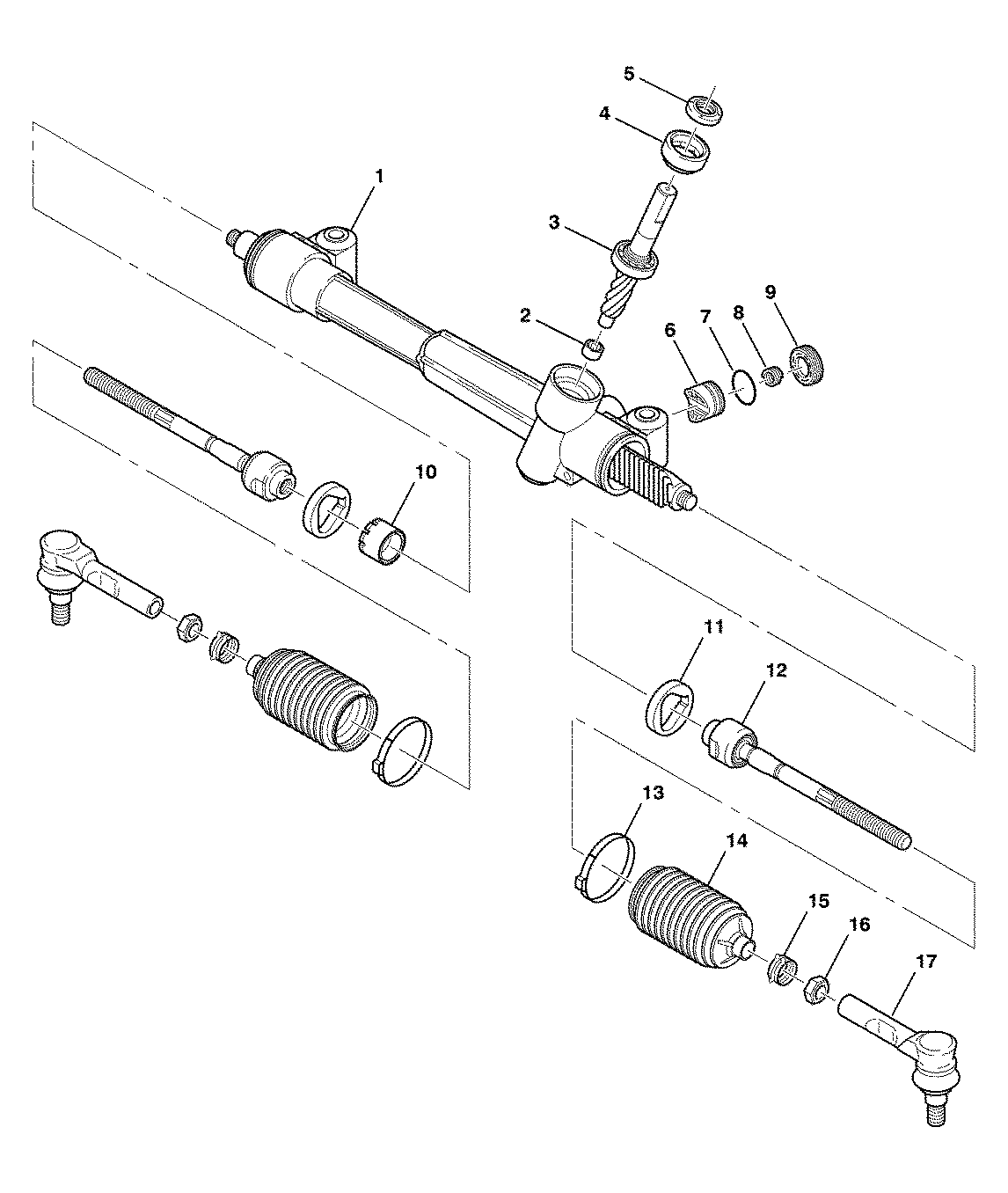

Power Steering System Disassembled View (Gear EPS)
| Callout | Component Name |
|---|---|
| 1 | Rack and Pinion Housing |
| 2 | Needle Sleeve |
| 3 | Bearing Pinion Assembly (LHD) |
| 4 | Pinion Assembly Retainer |
| 5 | Steering Pinion Seal |
| 6 | Rack Bearing Assembly |
| 7 | O-Ring Seal |
| 8 | Coil Spring |
| 9 | Adjuster Plug |
| 10 | Rack Bushing |
| 11 | Ring Insert |
| 12 | Inner Tie Rod Assembly |
| 13 | Boot Retaining Clamp |
| 14 | Rack and Pinion Boot |
| 15 | Tie Rod End Clamp |
| 16 | Metric Hex Nut (M14 X 1.5) |
| 17 | Outer Tie Rod Assembly |
