Installation Procedure
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

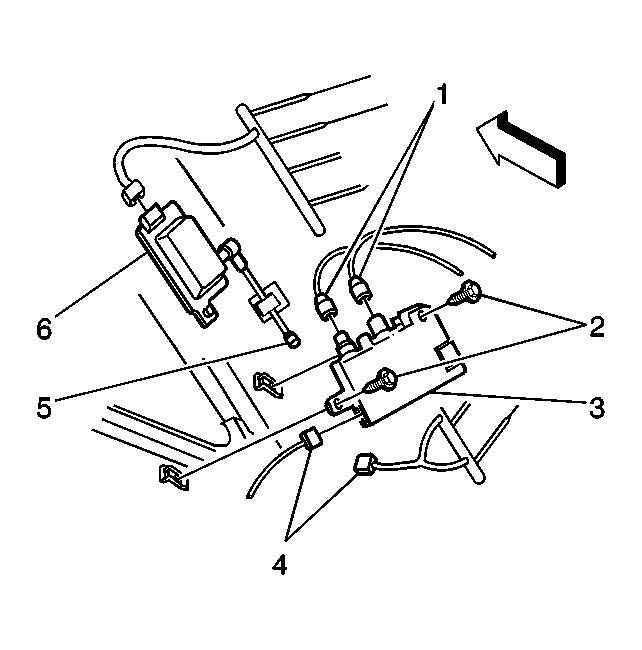

- Install the TV antenna module (3) and fasteners (2).
Tighten: Tighten the TV antenna module (3) fasteners (2) to 9 N.m (80 lb in).
- Connect the electrical wiring and coaxial cables (1, 4, 5) to the TV antenna module (3).
- Install the passenger side quarter trim panel. Refer to Rear Quarter Upper Trim Panel Replacement .
NOTE:
Refer to Fastener Notice
.
