Radio Front Speaker Replacement
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Radio Front Speaker Replacement

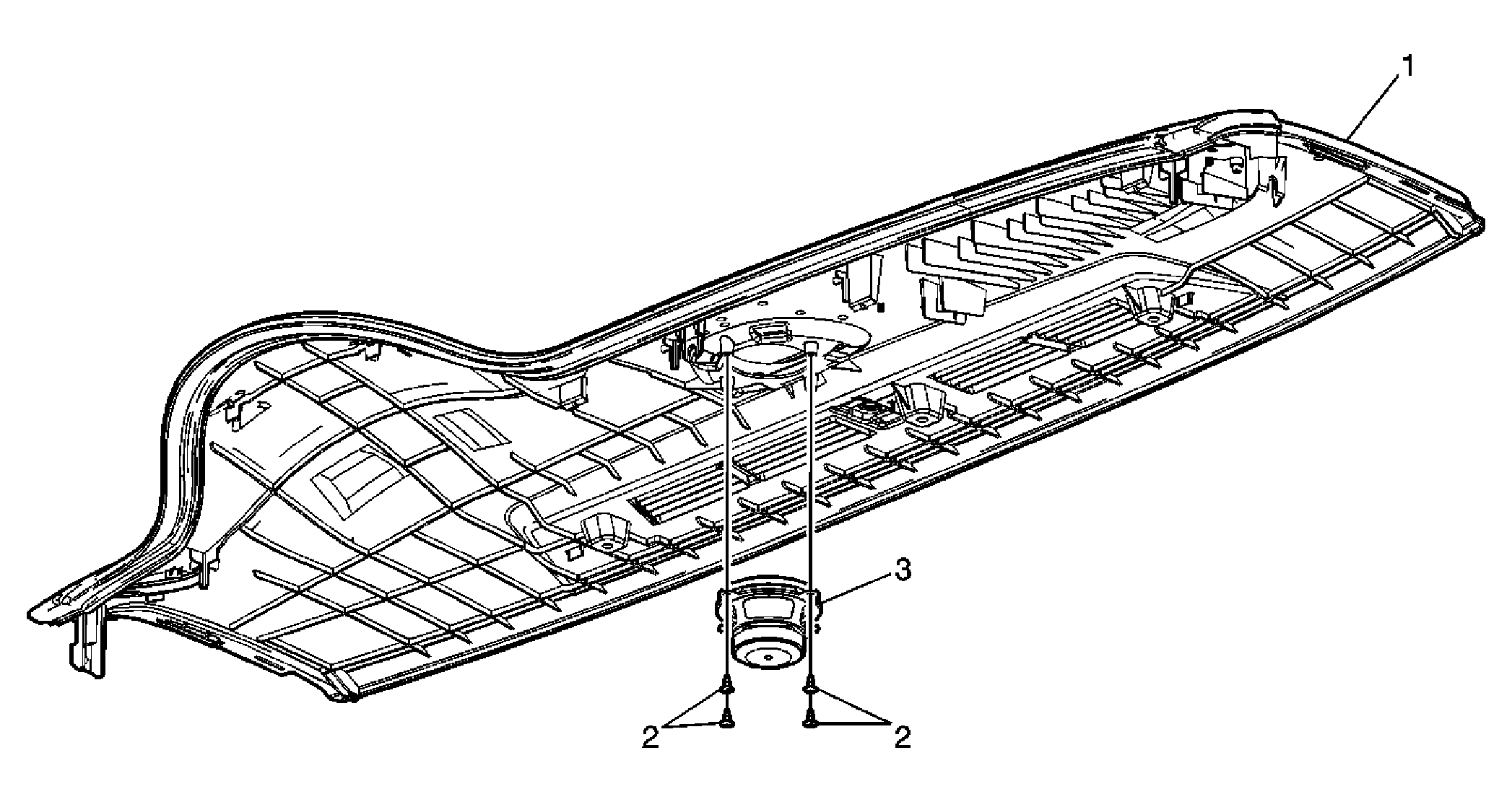

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Instrument Panel Upper Trim Pad Refer to Instrument Panel Upper Trim Pad Replacement . |
| 2 | Radio Speaker Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
or Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Radio Front Speaker Assembly Tip: Disconnect the electrical connector. |
