Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

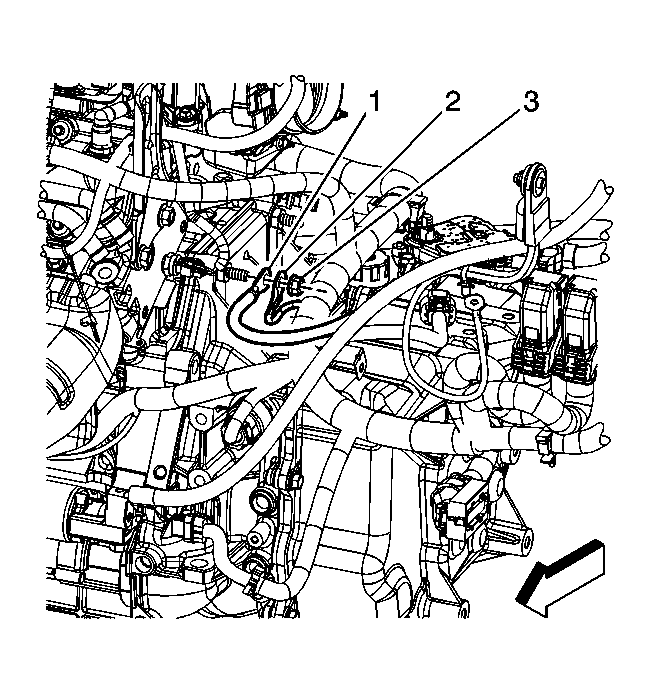

    Fig 1: Identifying Engine Wiring Harness Ground, & Negative Battery Cable Ground & Nut
    GM1775665Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable.
  2. Install the negative battery cable terminal (1) to the transaxle stud.
  3. Install the engine wiring harness terminal (2) to the transaxle stud.
    4. NOTE: Refer to Fastener Notice .
  4. Install the engine wiring harness nut (3).

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

    5. Fig 2: Identifying Battery Cable Components
    GM1783030Courtesy of GENERAL MOTORS CORP.
  5. Install the negative battery cable ground terminal (2) to the tie bar stud.
  6. Instal the negative battery cable ground terminal nut (1) to the tie bar stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  7. Install the negative battery cable clip (4) to the battery tray.
  8. Install tape in order to secure the negative battery cable to the positive battery cable.
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
