Center Seat Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

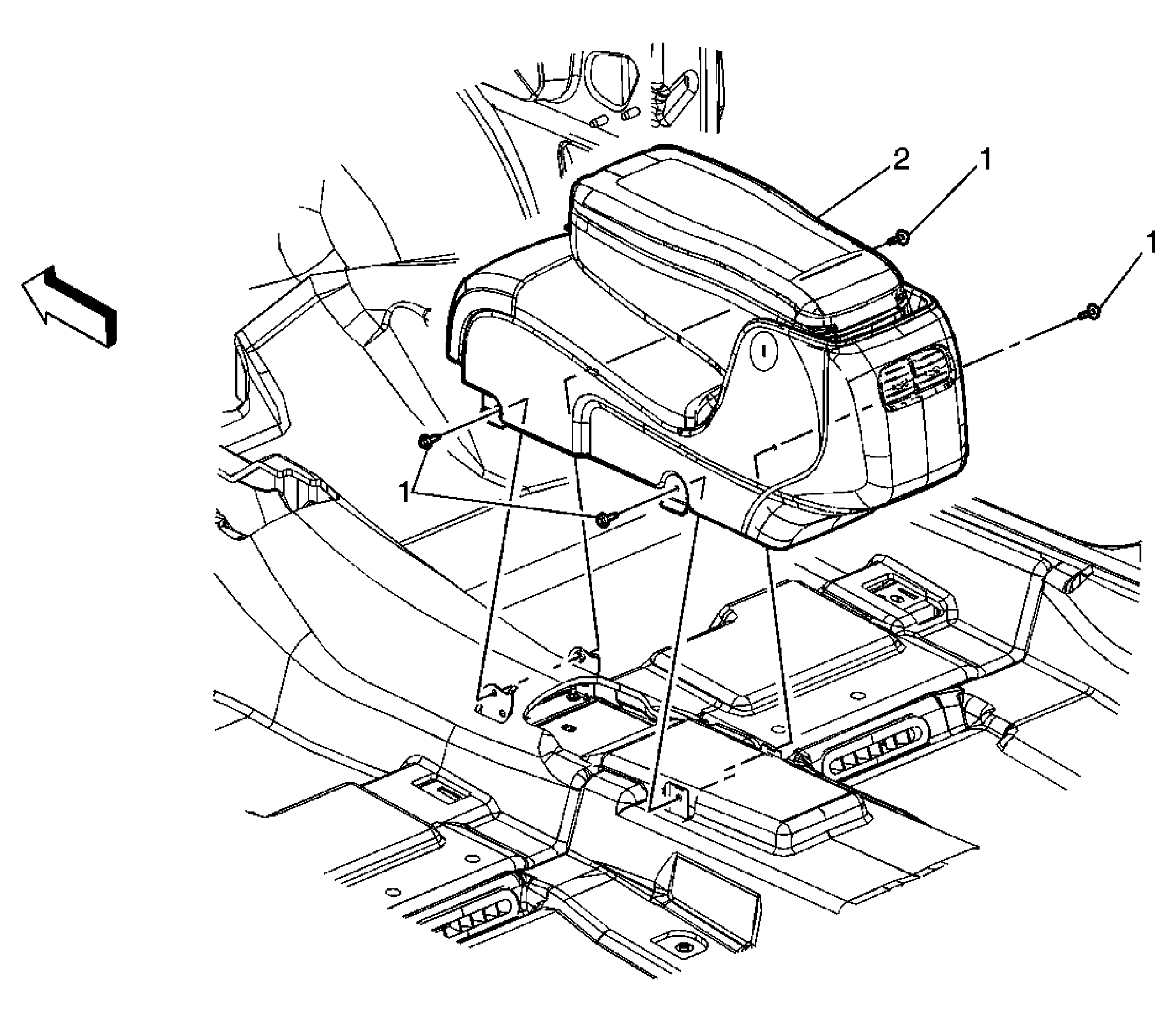

Fig 1: View Of Center Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seats. Refer to Seat Replacement .
1	Bolt, Front Center Seat Assembly (Qty: 4) Tighten: 9 N.m (80 lb in)
2	Seat Assembly, Front Center
