Rear Window Shelf Trim Panel Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

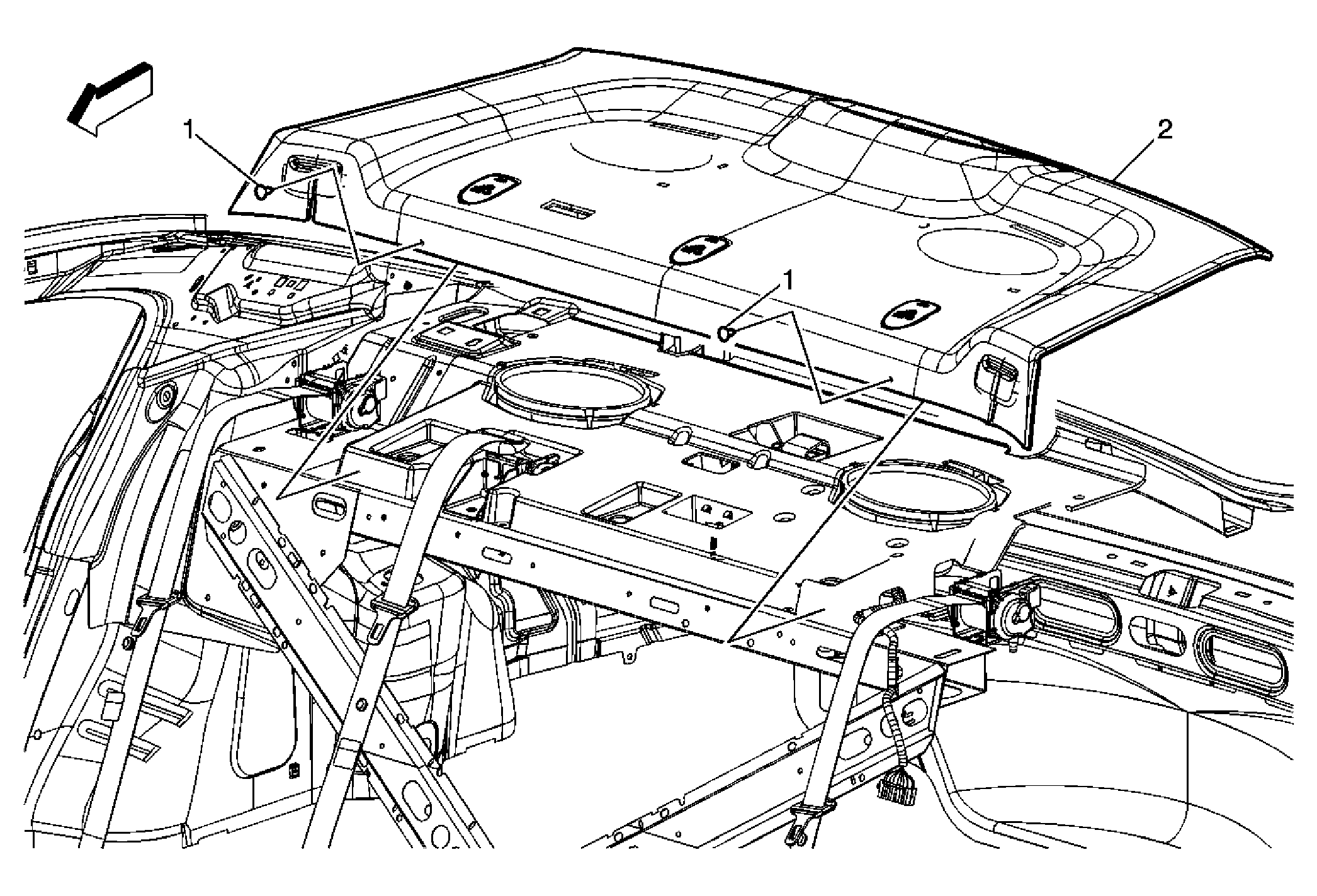

Fig 1: Locating Rear Window Shelf Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Replacement . Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement .
1	Rear Window Trim Panel Retainer (Qty: 2)
2	Rear Window Trim Panel Assembly

Callout

Component Name

Preliminary Procedure

Remove the rear seat back. Refer to Rear Seat Back Replacement .
Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement .

Rear Window Trim Panel Retainer (Qty: 2)

Rear Window Trim Panel Assembly
