Removal Procedure

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.
  1. Remove the headliner. Refer to Headlining Trim Panel Replacement .

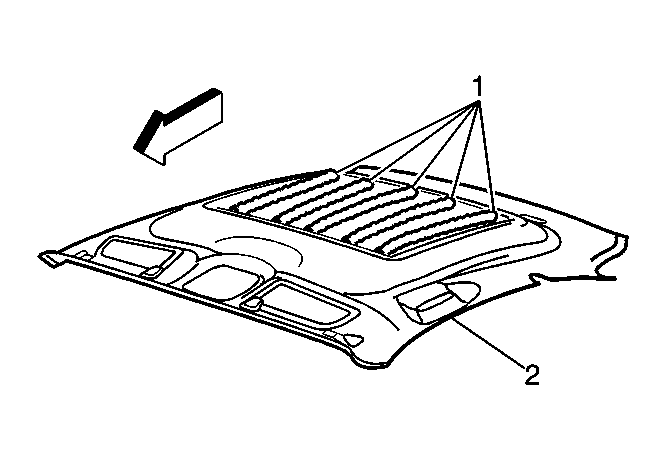

    2. Fig 1: Removing/Installing Headliner Cardboard Insulator
    GM157636Courtesy of GENERAL MOTORS CORP.
    NOTE: Use care when removing the cardboard roof insulator. Excessive pressure can cause dents in the roof panel.
  2. Starting in one corner of the cardboard, pulling downward, cut the adhesive beads (1) using a sharp putty knife or equivalent.
    3. IMPORTANT: It is not necessary to remove all of the old adhesive from the roof panel.
  3. Cut off all of the adhesive beads.
  4. Remove the cardboard roof insulator.
