Wheels/Vehicle Underbody Component Views
WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

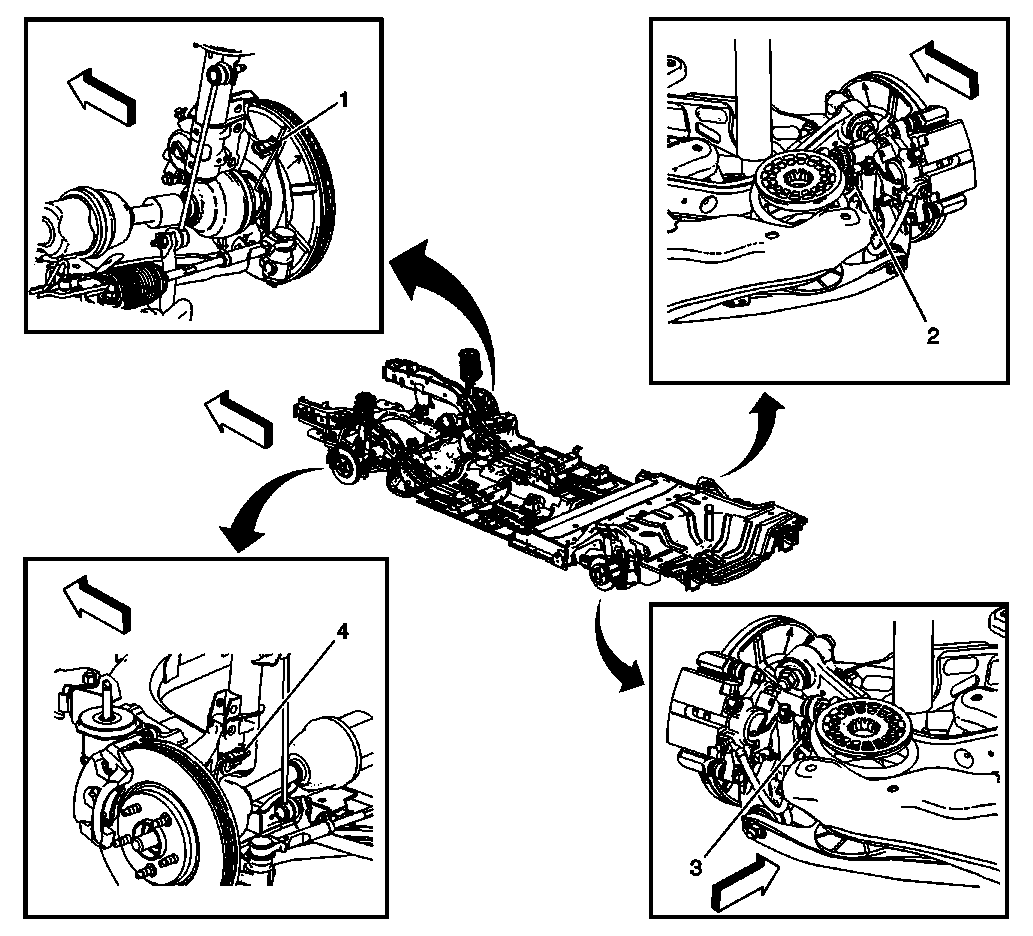

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Wheel Speed Sensor (WSS) - Right Front |
| 2 |
Wheel Speed Sensor (WSS) - Right Rear |
| 3 |
Wheel Speed Sensor (WSS) - Left Rear |
| 4 |
Wheel Speed Sensor (WSS) - Left Front |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Evaporative Emission (EVAP) Canister |
| 2 |
Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| 3 |
Fuel Pump and Sender Assembly |
| 4 |
Fuel Tank Pressure (FTP) Sensor |
| 5 |
Fuel Tank |
