Removal Procedure

    Fig 1: View Of PCV Tube & Air Cleaner Duct
    GM1492073Courtesy of GENERAL MOTORS CORP.
  1. Remove the positive crankcase ventilation (PCV) fresh air tube from the air cleaner intake duct.

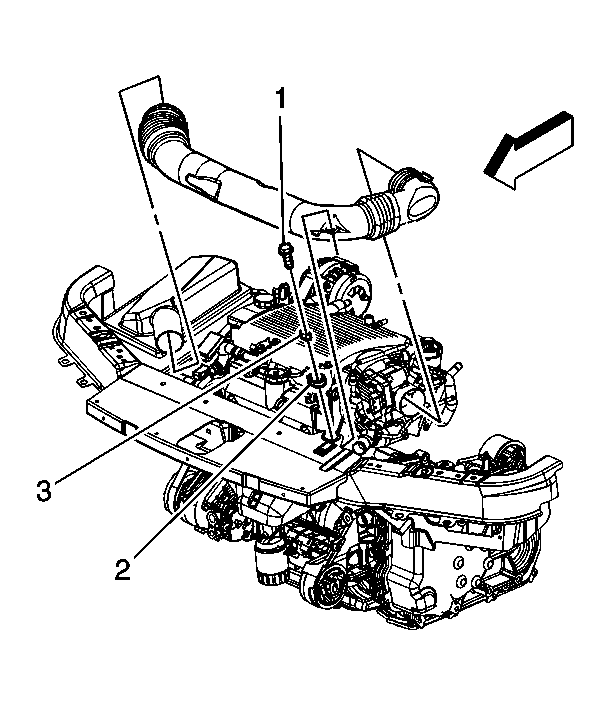

    2. Fig 2: Removing Air Cleaner Intake Duct
    GM1459596Courtesy of GENERAL MOTORS CORP.
  2. Loosen the air cleaner intake duct clamps at the mass airflow (MAF) sensor and throttle body.
  3. Remove the air intake duct bolt (1).
  4. Remove the air cleaner intake duct.
