UNDERHOOD Fuse Block
NOTE:
Underhood fuse block is located in left side of engine compartment.

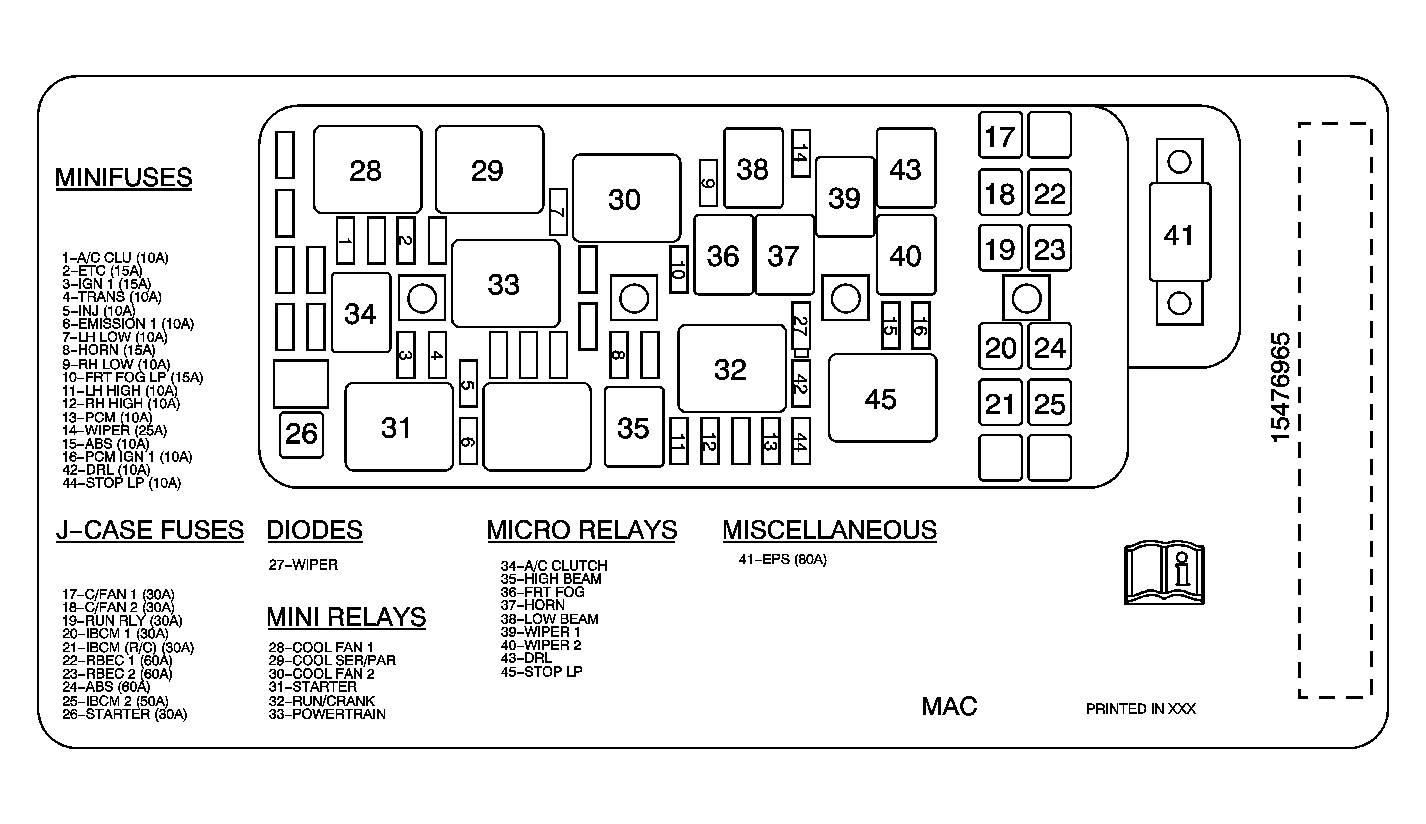

Fuse Block - Underhood Fuse And Relay Identification Legend
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| 1 | A/C CLU | 10A | A/C CLUTCH Relay 34 |
| 2 | ETC | 15A | Throttle Actuator Control (TAC) Module |
| 3 | IGN 1 | 15A | Ignition Control Module (ICM), Park/Neutral Position (PNP) Switch |
| 4 | TRANS | 10A | 1-2 Shift Solenoid (1-2 SS) Valve, 2-3 Shift Solenoid (2-3 SS) Valve, Torque Convertor Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve |
| 5 | INJ | 10A | Fuel Injectors |
| 6 | EMISSION 1 | 10A | Evaporative Emission (EVAP) Canister Purge Solenoid, Heated Oxygen (HO2S) Sensors, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| 7 | LH LOW | 10A | Headlamp - Low Beam - Left |
| 8 | HORN | 15A | Horn Relay 37 |
| 9 | RH LOW | 10A | Headlamp - Low Beam - Right |
| 10 | FRT FOG LP | 15A | FRT FOG LP Relay 36 |
| 11 | LH HIGH | 10A | Headlamp - High Beam - Left |
| 12 | RH HIGH | 10A | Headlamp - High Beam - Right |
| 13 | PCM | 10A | Powertrain Control Module (PCM) |
| 14 | WIPER | 25A | Wiper 1 Relay 39 |
| 15 | ABS | 10A | Electronic Brake Control Module (EBCM) (JL9) |
| 16 | PCM IGN 1 | 10A | Powertrain Control Module (PCM) |
| 17 | C/FAN 1 | 30A | COOL FAN 1 Relay 28 |
| 18 | C/FAN 2 | 30A | COOL FAN 2 Relay 30 |
| 19 | RUN RLY | 30A | HVAC Blower High Relay 4, RUN Relay 3 |
| 20 | IBCM 1 | 30A | Body Control Module (BCM), AIR BAG (BATT) Fuse, CLUSTER/THEFT Fuse, HVAC CTRL (BATT) Fuse, IGN SENSOR Fuse, and RADIO Fuse |
| 21 | IBCM (R/C) | 30A | AIR BAG (IGN) Fuse, EPS Fuse, and RUN/CRANK Fuse |
| 22 | RBEC 1 | 60A | BACK UP LP Fuse 17, CIG/AUX Fuse 20, HTD ST Fuse 14, RKE/XM Fuse 16, SUN RF Fuse 10, and RR DEFOG Relay 26 |
| 23 | RBEC 2 | 60A | DRV ST Fuse 2, EMISSION 2 Fuse 5, FUEL Fuse 25, PARK LPS Fuse 6, and TRUNK Fuse 22 |
| 24 | ABS | 60A | Electronic Brake Control Module (EBCM) (JL9) |
| 25 | IBCM 2 | 50A | DOOR LOCK Fuse, INTERIOR LIGHTS Fuse, and ACCESSORY Relay |
| 26 | STARTER | 30A | Starter Relay 31 |
| 27 | WIPER Diode | - | Wiper 1 Relay 39, Wiper 2 Relay 40 |
| 28 | COOL FAN 1 Relay | - | Cooling Fan - Left |
| 29 | COOL SER/PAR Relay | - | Cooling Fan - Left, Cooling Fan - Right |
| 30 | COOL FAN 2 Relay | - | Cooling Fan - Right |
| 31 | STARTER Relay | - | Starter Solenoid |
| 32 | RUN/CRANK Relay | - | ABS Fuse 15, IBCM (R/C) Fuse 21, IGN 1 Fuse 3, INJ Fuse 5, PCM IGN 1 Fuse 16, TRANS Fuse 4 |
| 33 | POWERTRAIN Relay | - | Emission 1 Fuse 6, and ETC Fuse 2 |
| 34 | A/C CLUTCH Relay | - | A/C Compressor Clutch |
| 35 | HIGH BEAM Relay | - | LH HIGH Fuse 11, RH HIGH Fuse 12 |
| 36 | FRT FOG Relay | - | Fog Lamp - LF, Fog Lamp - RF |
| 37 | HORN Relay | - | Horn Assembly |
| 38 | LOW BEAM Relay | - | LH LOW Fuse 7, RH LOW Fuse 9 |
| 39 | WIPER 1 Relay | - | Wiper 2 Relay 40 |
| 40 | WIPER 2 Relay | - | Windshield Wiper Motor Assembly |
| 41 | EPS | 80A | Power Steering Control Module |
| 42 | DRL | 10A | Body Control Module (BCM) |
| 43 | DRL Relay | - | Daytime Running Lamps (DRL) |
| 44 | STOP LP | 10A | STOP LP Relay 45 |
| 45 | STOP LP Relay | - | Center High Mounted Stop Lamp (CHMSL) |
