Installation Procedure

    Fig 1: View Of Generator Bracket Bolts
    GM1239046Courtesy of GENERAL MOTORS CORP.
  1. Install the generator bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the generator bracket bolts.

    Tighten:  Tighten the bolts in sequence to 50 N.m (37 lb ft).

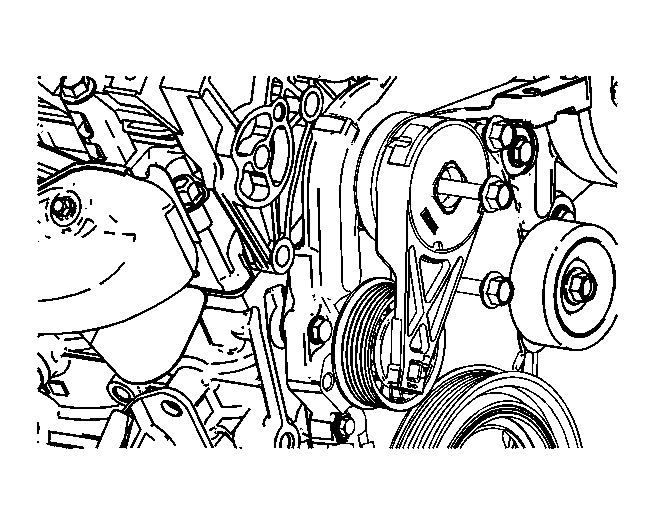

    3. Fig 2: View Of Drive Belt Tensioner Bolt
    GM1239042Courtesy of GENERAL MOTORS CORP.
  3. Install the drive belt tensioner.
  4. Install the drive belt tensioner bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  5. Install the drive belt idler pulley.
  6. Install the drive belt idler pulley bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

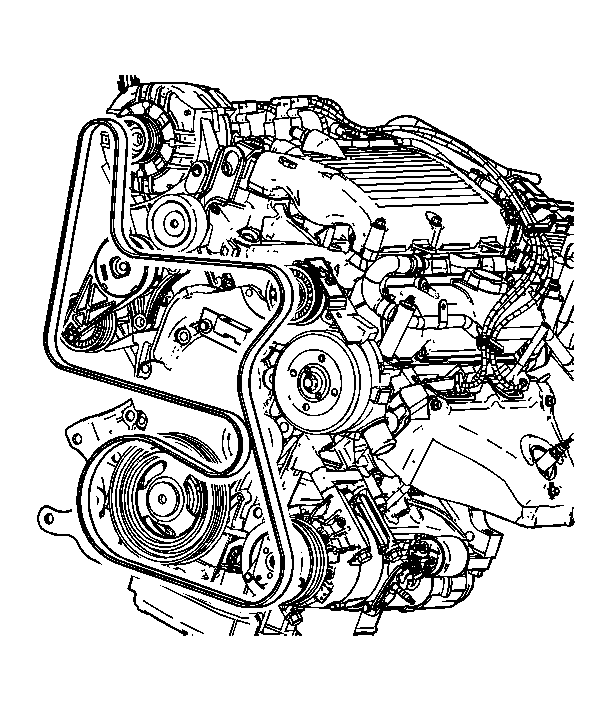

    7. Fig 3: View Of Drive Belt
    GM1239067Courtesy of GENERAL MOTORS CORP.
  7. Install the generator. Refer to Generator Replacement .
  8. Rotate the drive belt tensioner counterclockwise.
  9. Install the accessory drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 3.5L (LX9).
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
