Installation Procedure

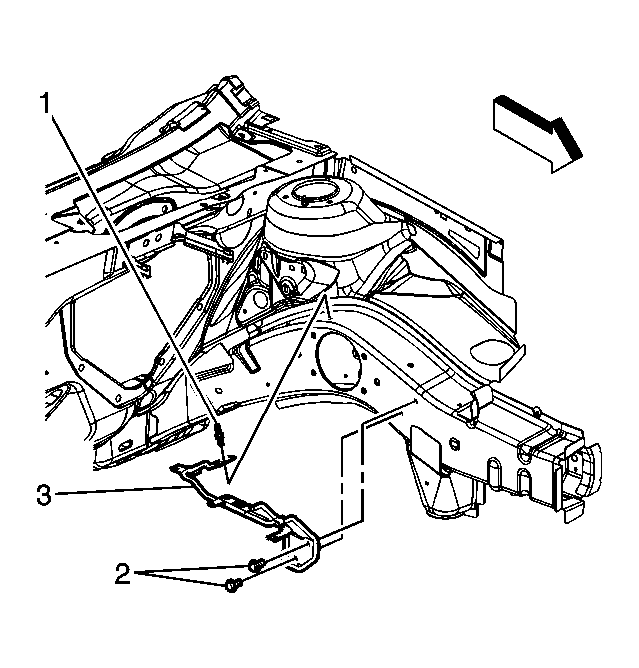

    Fig 1: View Of Battery Tray Support
    GM1459608Courtesy of GENERAL MOTORS CORP.
  1. If necessary, install the battery tray support (3).
  2. Loosely install the battery tray support bolts (2) and stud (1).

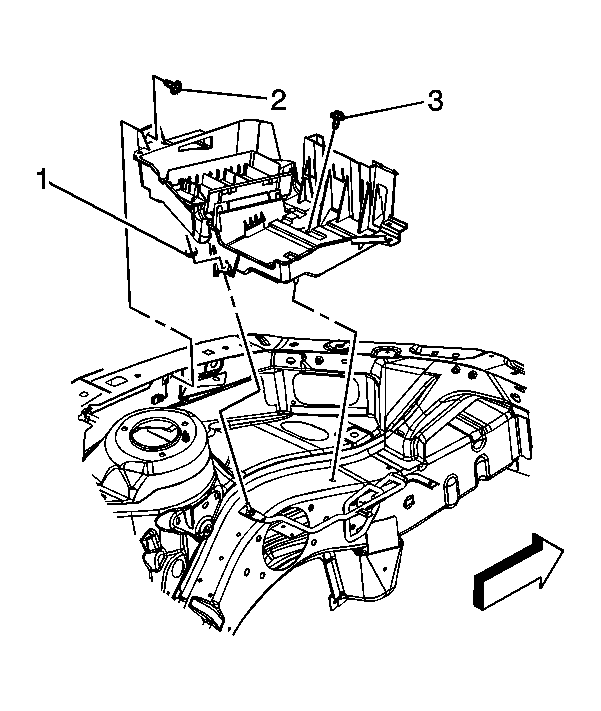

    3. Fig 2: View Of Battery Tray
    GM1459607Courtesy of GENERAL MOTORS CORP.
  3. Install the battery tray.
  4. Loosely install the battery tray bolts (2, 3) and nut (1).
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Tighten the battery tray support bolts/stud and the battery tray bolts/nut.
    • Tighten the battery tray support bolts and stud to 25 N.m (18 lb ft).
    • Tighten the battery tray bolts and nut to 16 N.m (12 lb ft).
    6. Fig 3: View Of Fuse Block
    GM1492083Courtesy of GENERAL MOTORS CORP.
  6. Position the forward lamp harness to the battery tray.
  7. Position the harness connectors (4) and junction block (3) to the battery tray.
  8. Tighten the fuse block bolts (2).
  9. Install the fuse block cover (1).
  10. Install the battery. Refer to Battery Replacement .
