Removal Procedure

    Fig 1: View Of Battery Negative Cable At Battery
    GM1275980Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the positive battery cable from the battery.

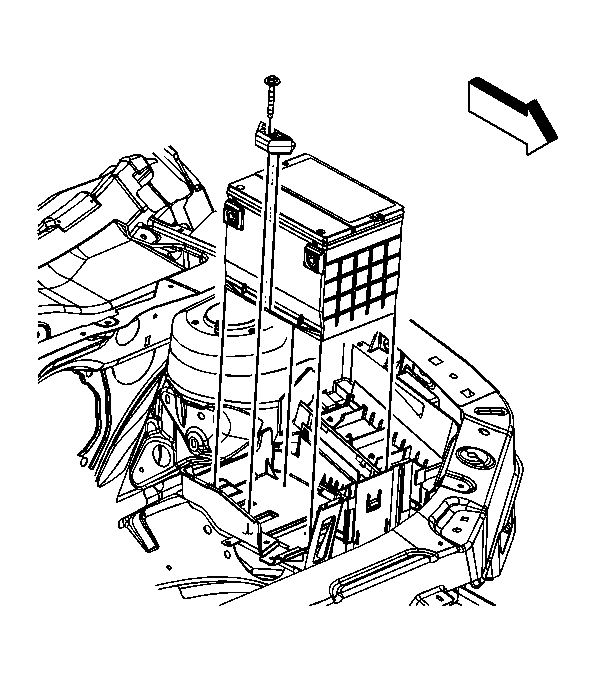

    3. Fig 2: View Of Battery And Hold Down Retainer
    GM1578422Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery hold down retainer bolt and retainer.
    4. IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  4. Remove the battery.
