Installation Procedure

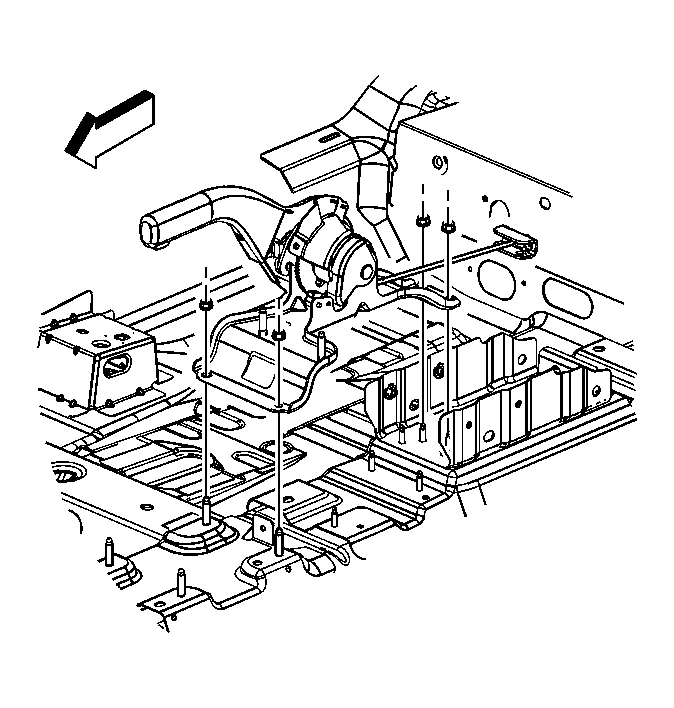

Fig 1: View Of Parking Brake Lever

Courtesy of GENERAL MOTORS CORP.

Install the park brake lever assembly to the vehicle. Do not tighten the 4 retaining nuts.

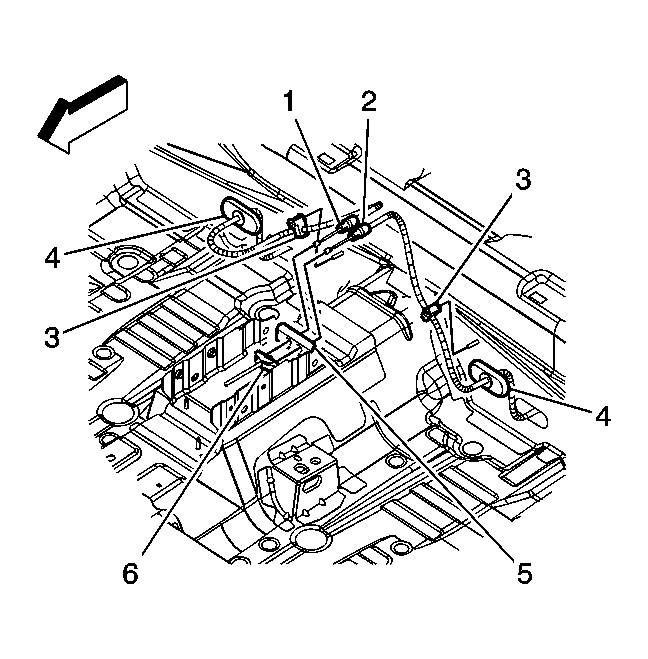

Fig 2: View Of Parking Brake Cables

Courtesy of GENERAL MOTORS CORP.

Install the right rear cable (1) and the left rear cable (2) to the park brake lever equalizer (6).

Fig 3: View Of Parking Brake Lever

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the 4 park brake lever assembly retaining nuts.
Tighten:
- Tighten the front 2 nuts to 27 N.m (20 lb ft).
- Tighten the rear 2 nuts to 10 N.m (89 lb in).
Install the shift assembly. Refer to Floor Shift Control Replacement in Automatic Transmission - 4T40-E/4T65-E.

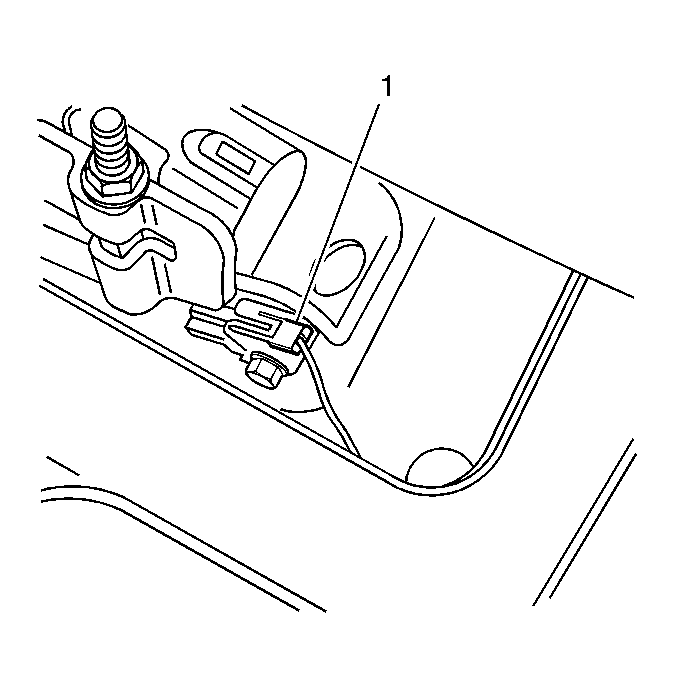

Fig 4: Locating Park Brake Warning Lamp Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the park brake warning lamp switch.
Install the console support bracket. Refer to Bracket Replacement - Console Floor .
Install the front floor console. Refer to Console Replacement in Instrument Panel, Gages, and Console.
Fully apply and release the park brake lever 3-5 times.
