Fuse Block - Underhood Bottom View: Notes

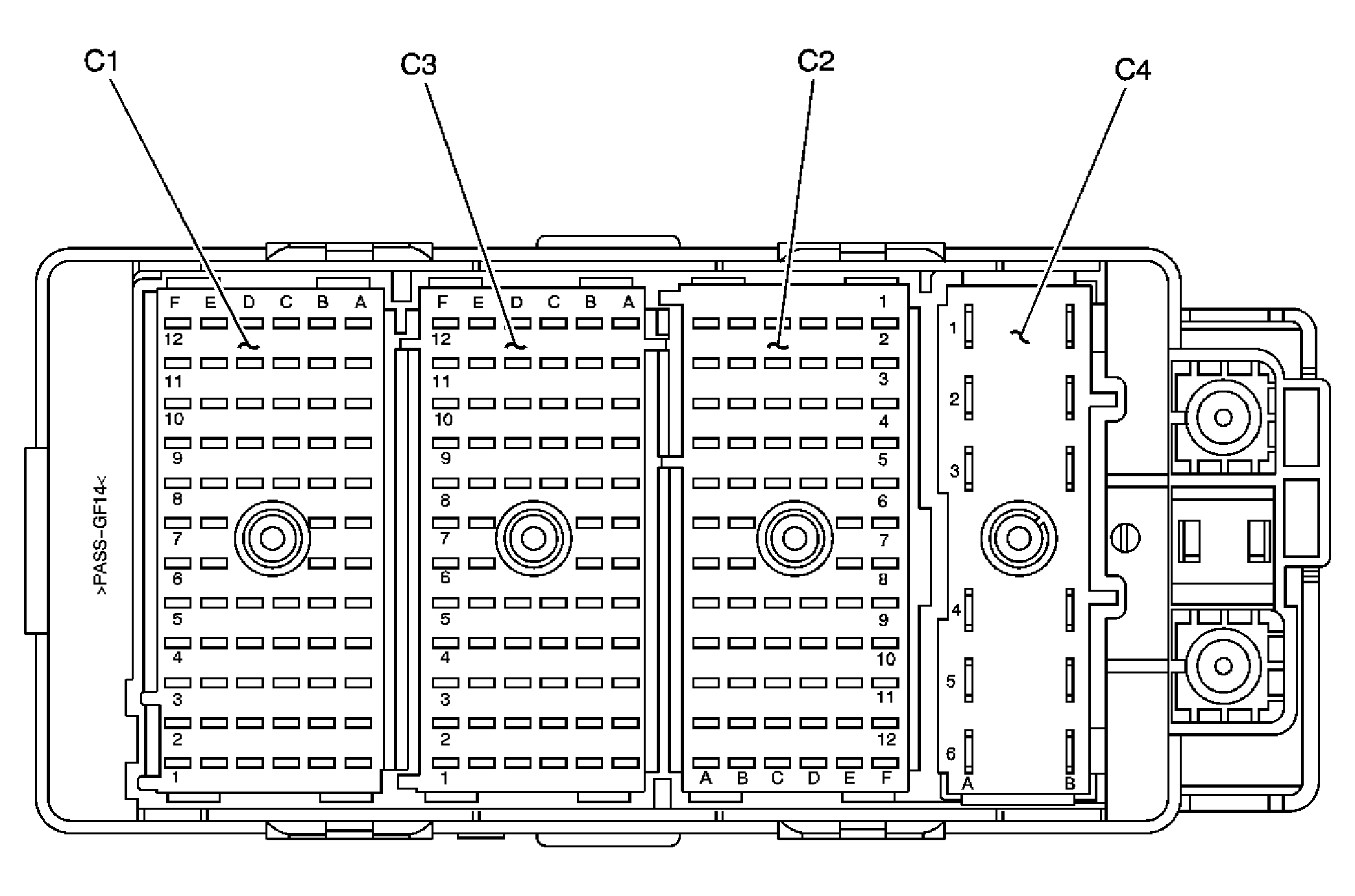

Fig 1: Fuse Block - Underhood Bottom View
GM1356121Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood C1

GM647949Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319894
  • 68-Way F Metri-Pack 280 Series Flexlock (WH)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 GY 532 Cooling Fan Motor Supply Voltage
A3 BK 450 Ground
A4-A12 - - Not Used
B1 WH 504 Cooling Fan Low Reference
B2-B9 - - Not Used
B10 PK 839 Ignition 1 Voltage
B11 PK/BK 5291 Ignition 1 Voltage
B12 - - Not Used
C1-C5 - - Not Used
C6-C7 - - Not Available
C8 - - Not Used
C9 PK 39 Ignition 1 Voltage
C10 - - Not Used
C11 PK/BK 5291 Ignition 1 Voltage
C12 - - Not Used
D1-D2 - - Not Used
D3 BN 818 Vehicle Speed Signal
D4 PK/BK 5290 Ignition 1 Voltage
D5 - - Not Used
D6-D7 - - Not Available
D8 PK 239 Ignition 1 Voltage
PK 239 Ignition 1 Voltage
D9 - - Not Used
D10 PU/WH 1035 Starter Relay Coil Supply Voltage
D11 PK/BK 5291 Ignition 1 Voltage
PK/BK 5291 Ignition 1 Voltage
D12 PU 6 Starter Solenoid Crank Voltage
E1-E2 - - Not Used
E3 L-BU 409 Cooling Fan Motor Supply Voltage
E4-E5 - - Not Used
E6-E7 - - Not Available
E8 D-GN 59 A/C Compressor Clutch Supply Voltage
E9-E10 - - Not Used
E11 PK/BK 5291 Ignition 1 Voltage
PK/BK 5291 Ignition 1 Voltage
E12 - - Not Used
F1-F12 - - Not Used
Fuse Block - Underhood C2

GM365994Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15405474
  • 68-Way F Metri-Pack 280 Series (L-GY)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 RD/WH 540 Battery Positive Voltage
A3 YE 5199 Run/Crank Relay Coil Control
A4 - - Not Used
A5 YE 61 Low Reference
A6 OG 228 Windshield Washer Pump Control
A7 - - Not Used
A8 PU 5531 Hood Closed Switch Signal (AP3)
A9-A10 - - Not Used
A11 D-BU 473 High Speed Cooling Fan Relay Control
A12 - - Not Used
B1-B4 - - Not Used
B5 GY 91 Windshield Wiper Switch Signal 2
B6 D-GN 113 Windshield Wiper Switch Signal 2
B7 - - Not Used
B8 BN 818 Vehicle Speed Signal
BN 818 Vehicle Speed Signal (C3Y)
B9 TN 28 Horn Relay Control
B10 D-GN 335 Low Speed Cooling Fan Relay Control
B11-B12 - - Not Used
C1 YE 447 Starter Relay Coil Control
C2 - - Not Used
C3 TN/WH 1969 Headlamp High Beam Relay Control
C4 D-GN/WH 636 Ambient Air Temperature Sensor Signal
C5 - - Not Used
C6-C7 - - Not Available
C8-C9 - - Not Used
C10 BK 350 Ground
C11 - - Not Used
C12 BN 9 Park Lamp Supply Voltage
D1 - - Not Used
D2 WH 17 Stop Lamps Switch Signal
WH 17 Stop Lamps Switch Signal
D3-D4 - - Not Used
D5 TN/WH 99 Windshield Washer Fluid Level Signal
D6-D7 - - Not Available
D8 D-BU/WH 1315 Right Front Turn/DRL Supply Voltage
D9 - - Not Used
D10 PK/WH 1970 Headlamp Low Beam Relay Control
D11-D12 - - Not Used
E1 D-GN/WH 459 A/C Compressor Clutch Relay Control
E2 L-BU 20 Stop Lamp Supply Voltage
E3-E5 - - Not Used
E6 PK 139 Ignition 1 Voltage (JL9)
E7-E12 - - Not Used
F1 PK/BK 109 Hood Ajar Switch Signal (AP3)
F2 - - Not Used
F3 BN 5069 Main Relay Coil Control
F4 YE 317 Fog Lamp Relay Control
F5 - - Not Used
F6 PK 639 Ignition 1 Voltage
F7 PU 92 Windshield Wiper Motor High Speed Control
F8 D-GN 95 Windshield Wiper Motor Low Speed Control
F9-F10 - - Not Used
F11 L-BU/WH 1314 Left Front Turn/DRL Supply Voltage
F12 L-GN/BK 592 DRL Relay Control
Fuse Block - Underhood C3

GM684889Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319895
  • 68-Way F Metri-Pack 280 Series Flexlock (GY)
Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 TN/WH 312 Right Headlamp Low Beam Supply Voltage
A4 PU 2234 Front Fog Lamp Supply Voltage
PU 2234 Front Fog Lamp Supply Voltage
A5 PU 5531 Hood Closed Switch Signal (AP3)
A6 - - Not Used
A7 OG 228 Windshield Washer Pump Control
A8-A11 - - Not Used
A12 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
B1 BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B2 PU 359 DRL Supply Voltage
B3-B6 - - Not Used
B7 TN/WH 99 Windshield Washer Fluid Level Signal
B8 YE 61 Low Reference
B9 D-GN/WH 636 Ambient Air Temperature Sensor Signal
B10 PK/BK 109 Hood Ajar Switch Signal (AP3)
B11 - - Not Used
B12 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
C1-C5 - - Not Used
C6-C7 - - Not Available
C8-C12 - - Not Used
D1-D4 - - Not Used
D5 D-BU/WH 1315 Right Front Turn/DRL Supply Voltage
D6-D7 - - Not Available
D8-D12 - - Not Used
E1-E3 - - Not Used
E4 D-GN 29 Horn Control
E5-E12 - - Not Used
F1-F2 - - Not Used
F3 PU 359 DRL Supply Voltage
YE 712 Left Headlamp Low Beam Supply Voltage
F4 - - Not Used
F5 L-BU 1314 Left Front Turn/DRL Supply Voltage
F6-F12 - - Not Used
Fuse Block - Underhood C4

GM1376696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15394383
  • 12-Way F Metri-Pack 800 Series (BK)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 D-GN 591 Ignition 1 Voltage
A3 RD/BK 242 Battery Positive Voltage
A4 RD/BK 442 Battery Positive Voltage
A5-A6 - - Not Used
B1 - - Not Used
B2 RD/BK 342 Battery Positive Voltage
B3 RD/BK 542 Battery Positive Voltage (JL9)
RD/BK 542 Battery Positive Voltage (JL9)
B4 RD/BK 142 Battery Positive Voltage
B5 RD/BK 42 Battery Positive Voltage
B6 - - Not Used
