Installation Procedure

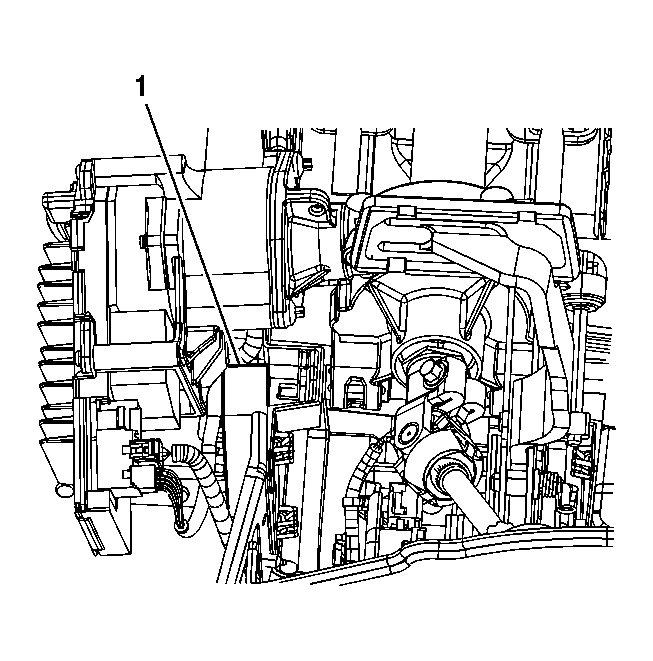

    Fig 1: Installing Adjustable Pedal Module Into Side Of I/P Support Beam
    GM1469984Courtesy of GENERAL MOTORS CORP.
  1. Remove the old 2-sided tape from the I/P support beam.
  2. If reinstalling the same adjustable pedal module, install NEW 2-sided tape to the module.
  3. Connect the electrical connector to the adjustable pedal module.
  4. Install the adjustable pedal module (1) to the side of the I/P support beam.
  5. Install a NEW tie strap to secure the adjustable pedal module to the I/P support beam.
  6. Install the closeout panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages, and Console.
