Adjustable Pedals Component Views

Fig 1: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

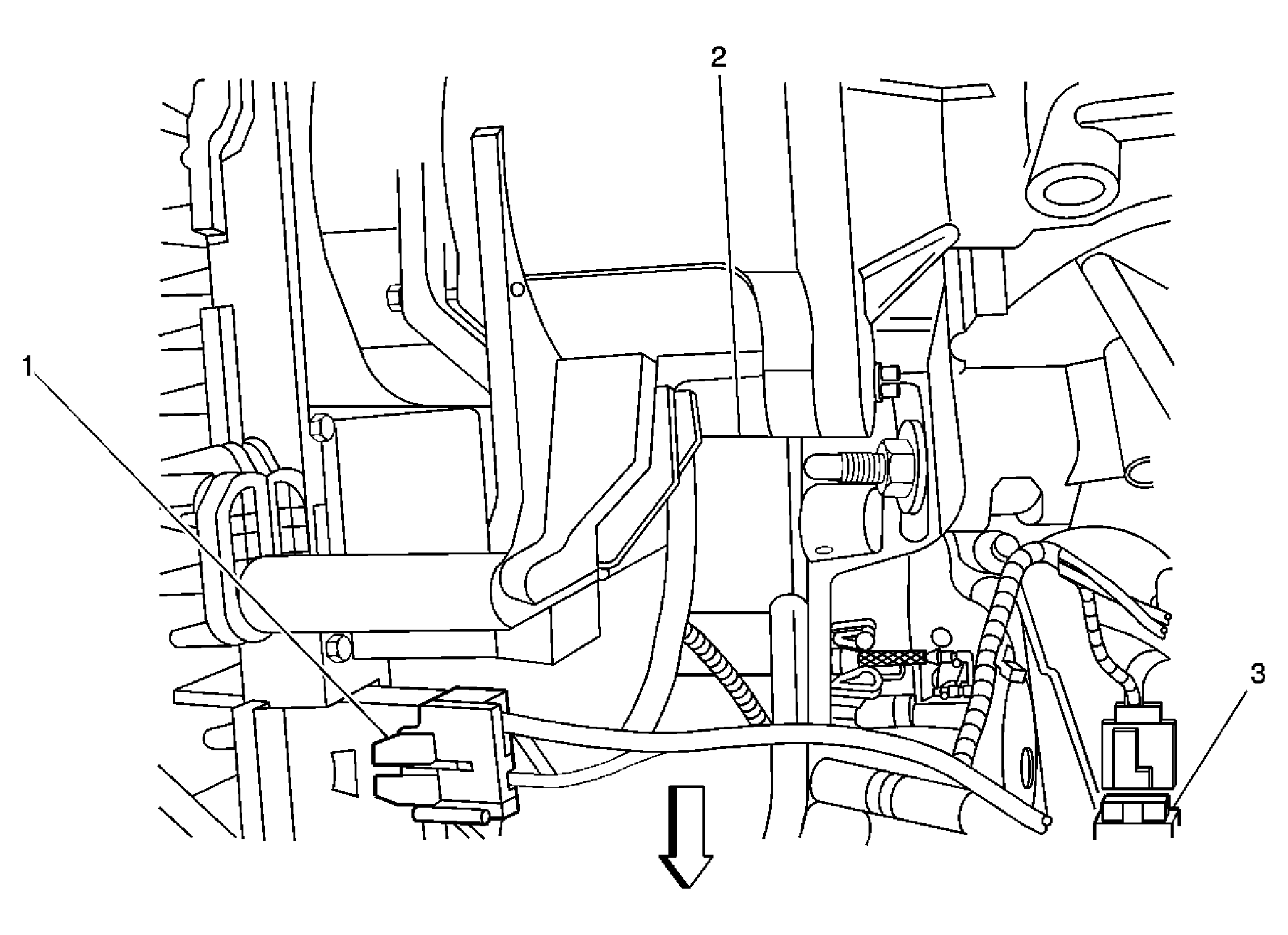

Fig 2: Under I/P Left of Brake Pedal Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Control Module
2	Adjustable Pedals Module
3	Brake Pedal Position Sensor

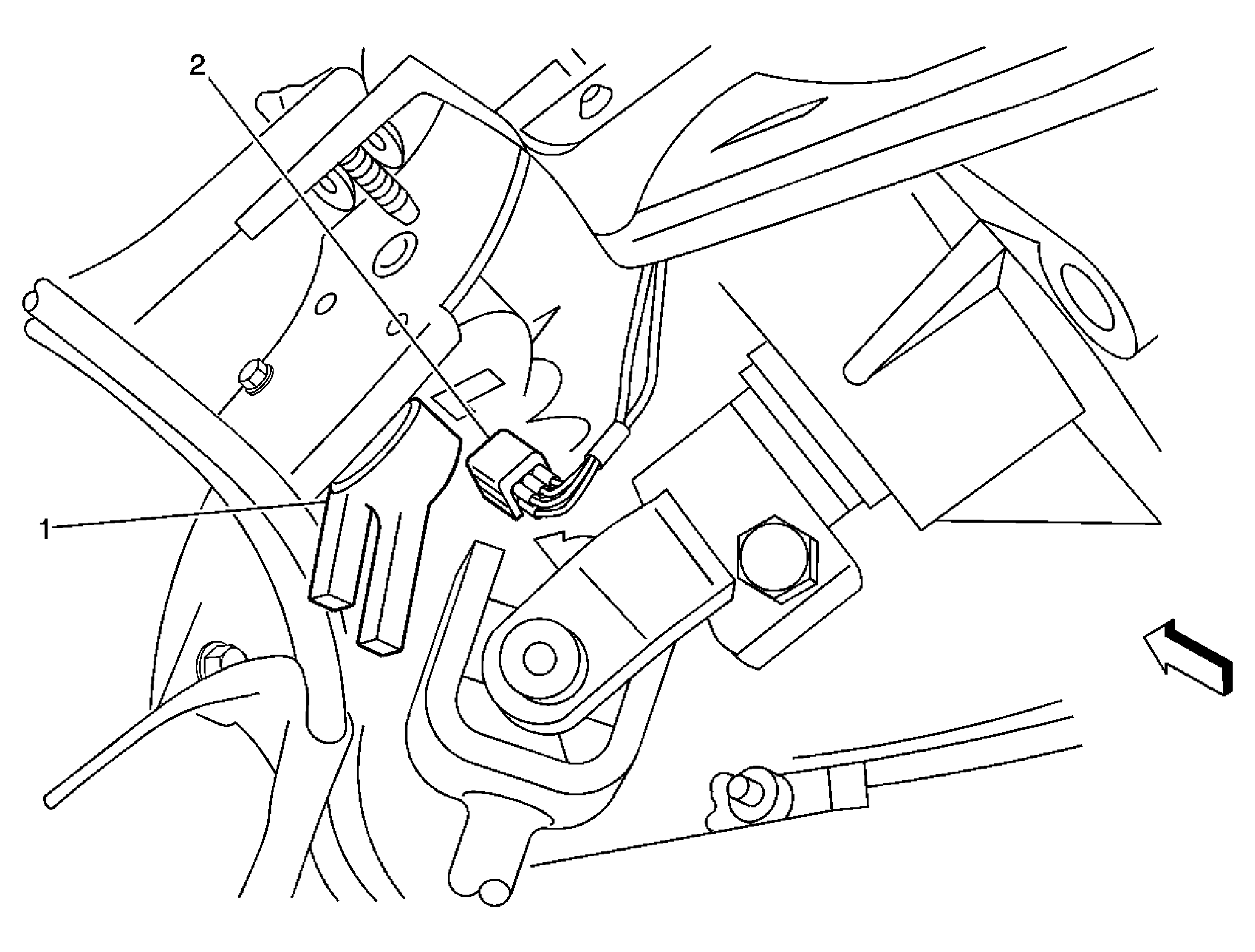

Fig 3: Above Brake Pedal Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Adjustable Pedals Position Sensor

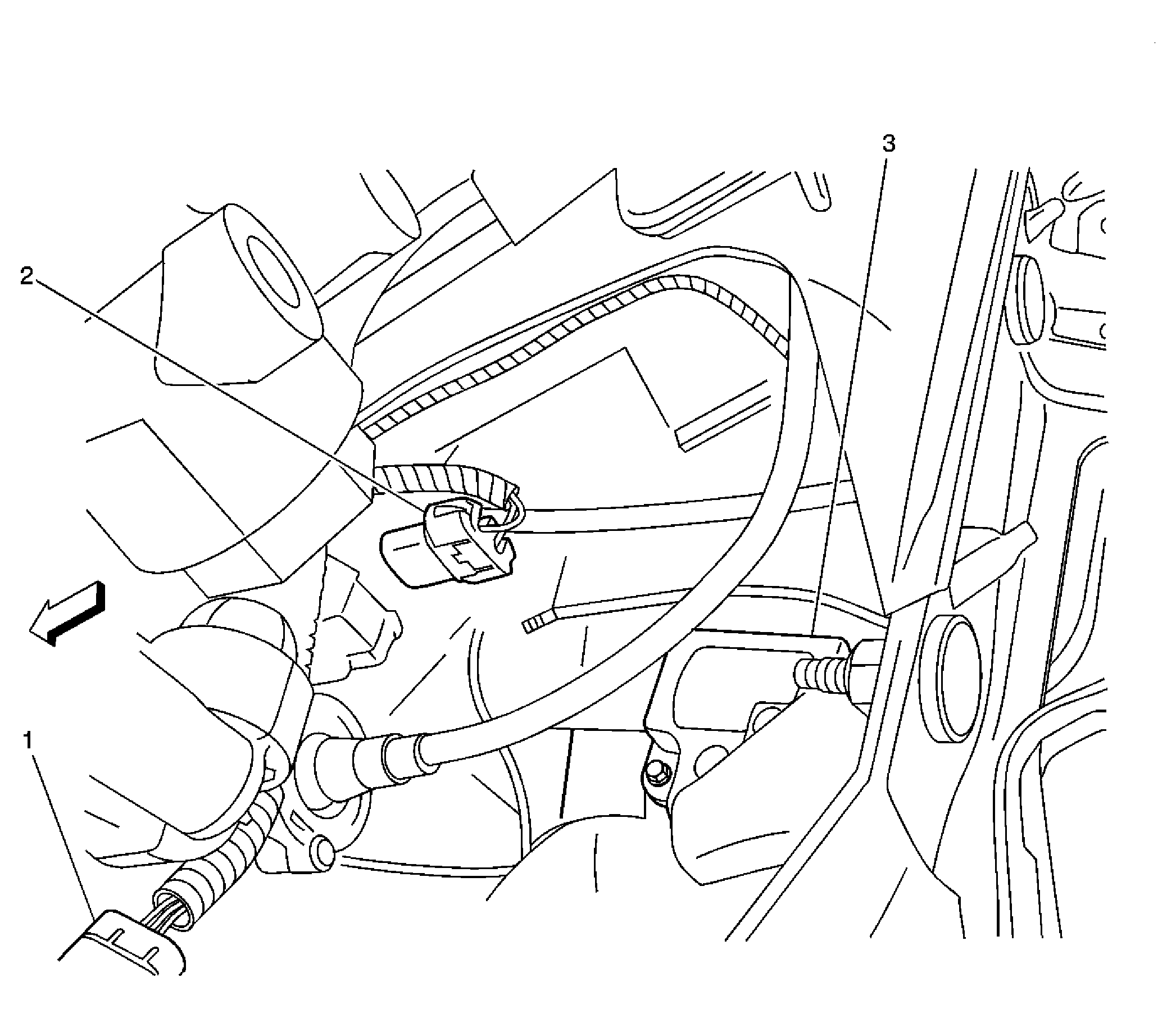

Fig 4: Left Side of HVAC Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Adjustable Pedals Actuator (JF4)
3	Air Temperature Actuator
