Cellular Communication Component Views

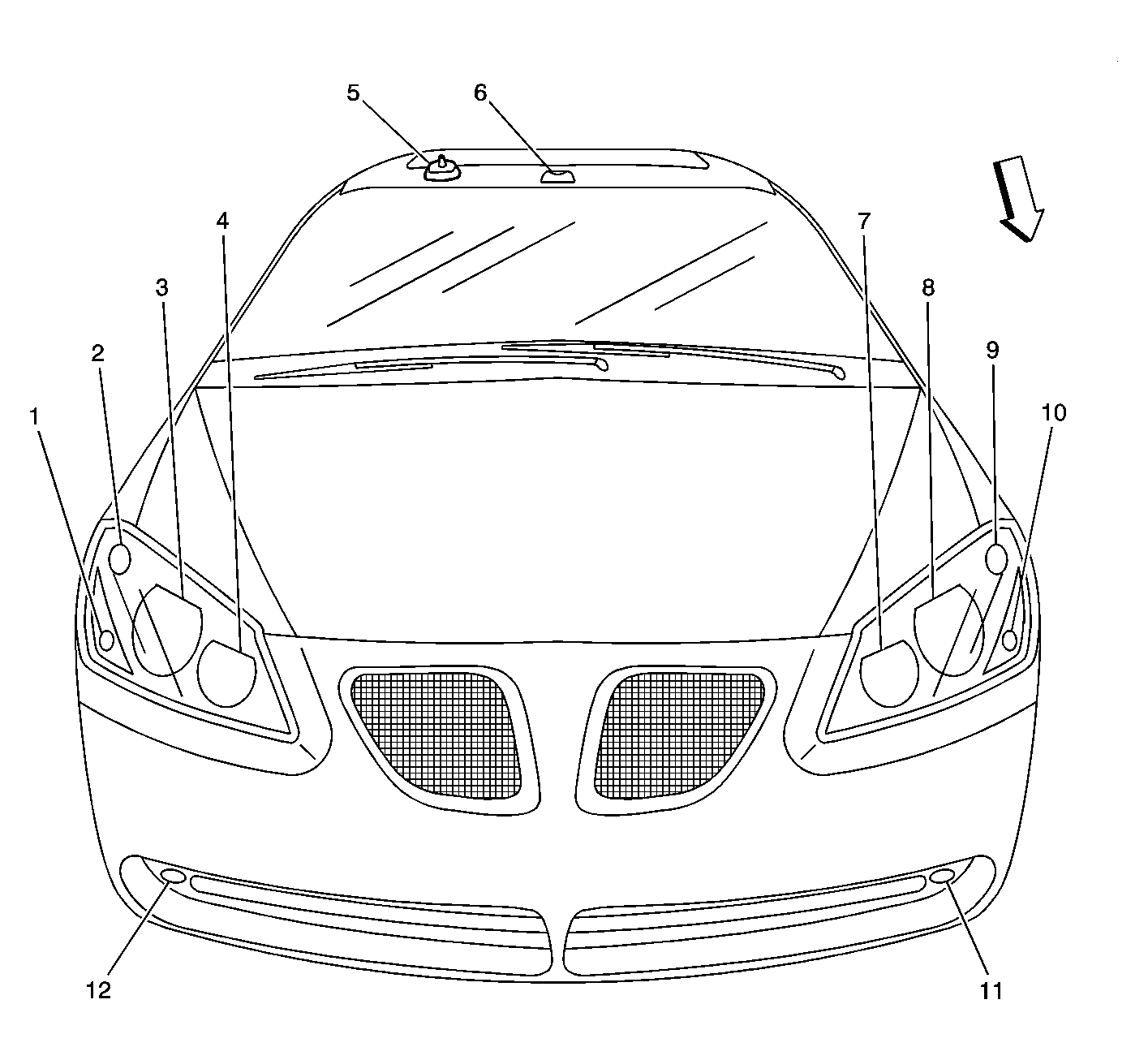

Fig 1: Front of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - RF
2	Park/Turn Signal/DRL Lamp - RF
3	Headlamp - Low Beam - Right
4	Headlamp - High Beam - Right
5	Digital Radio Antenna (U2K)
6	Cellular and Navigational Antenna (UE1)
7	Headlamp - High Beam - Left
8	Headlamp - Low Beam - Left
9	Park/Turn Signal/DRL Lamp - LF
10	Marker Lamp - LF
11	Fog Lamp - LF
12	Fog Lamp - RF

Fig 2: Forward Overhead

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - LF
2	Cellular Microphone (UE1)
3	Sunroof Switch (CF5/C3Y)
4	Courtesy/Reading Lamp - RF
5	Dome/Reading Lamp (w/o C3Y)
6	Sunroof (CF5/C3Y)
7	Vanity Mirror Lamp - Right
8	Inside Rearview Mirror
9	OnStar Keypad (UE1)
10	Vanity Mirror Lamp - Left

Fig 3: Behind Right Side of Instrument Panel Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)(UE1)
