Removal Procedure

  1. Turn OFF the ignition.
    2. Fig 1: Removing/Installation Intake Air Temperature (IAT) Sensor Electrical Connector
    GM179039Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (1) from the intake air temperature (IAT) sensor (2).

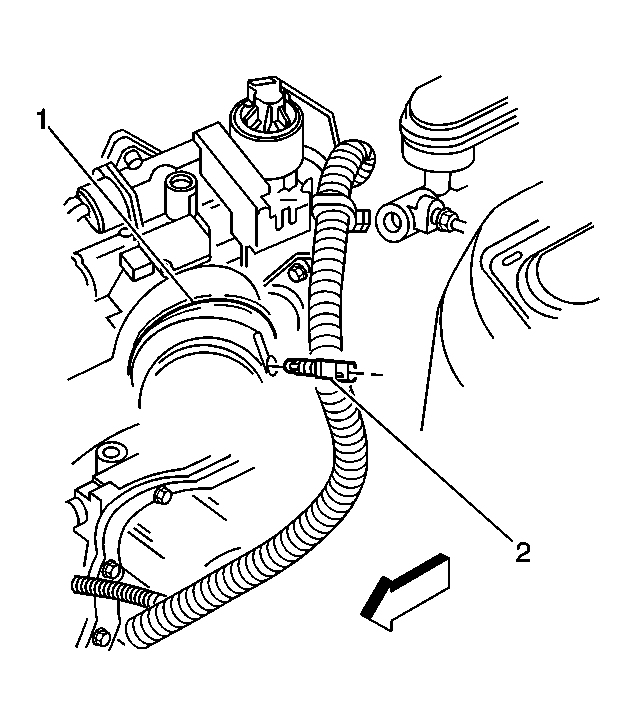

    3. Fig 2: IAT Sensor & Intake Air Duct
    GM179042Courtesy of GENERAL MOTORS CORP.
  3. Grasp and remove the IAT sensor (2) from the intake air duct (1) with a twisting and pulling motion.
