Body Control System Schematics

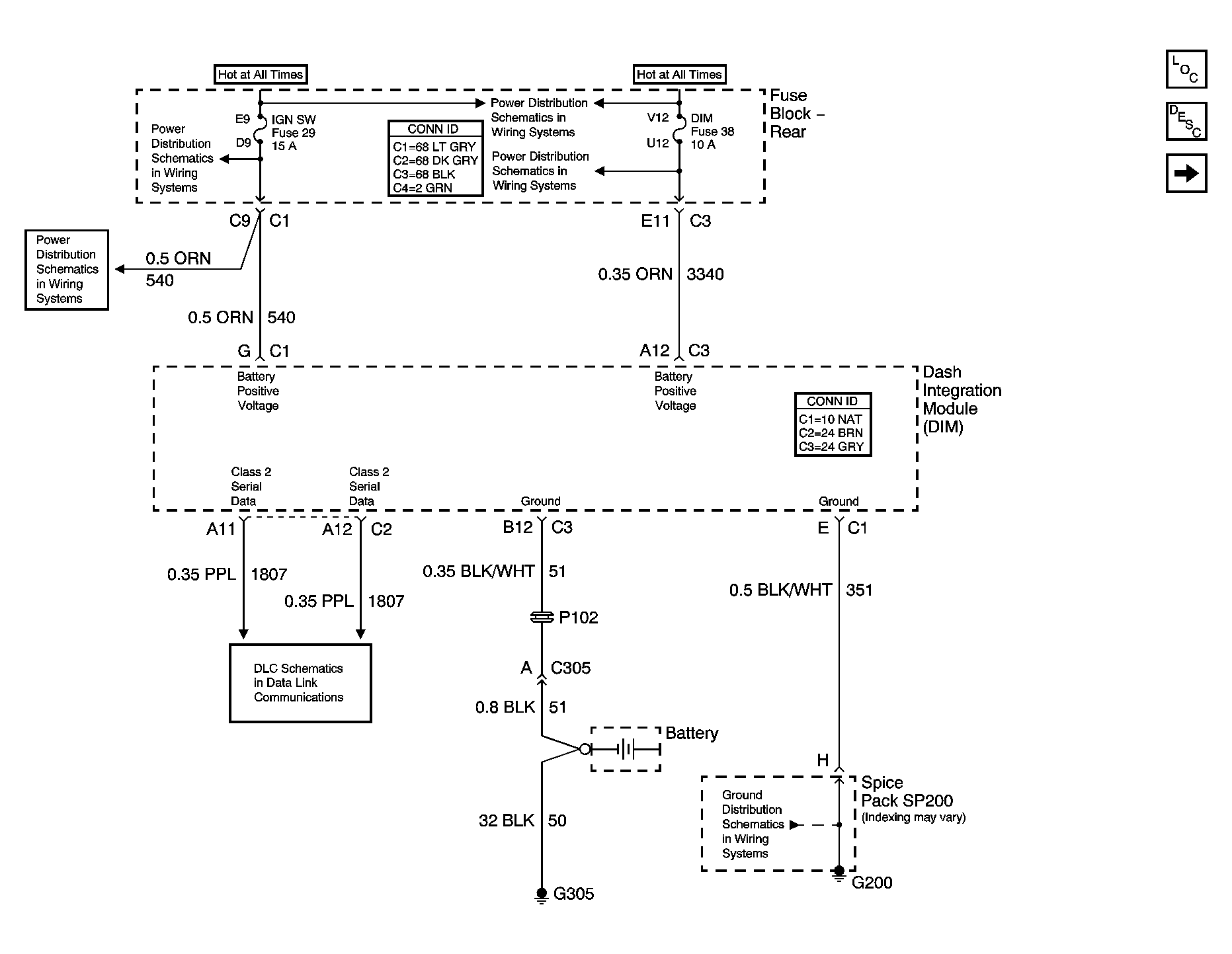

Fig 1: DIM Power & Ground Schematic

GM885742

Courtesy of GENERAL MOTORS CORP.

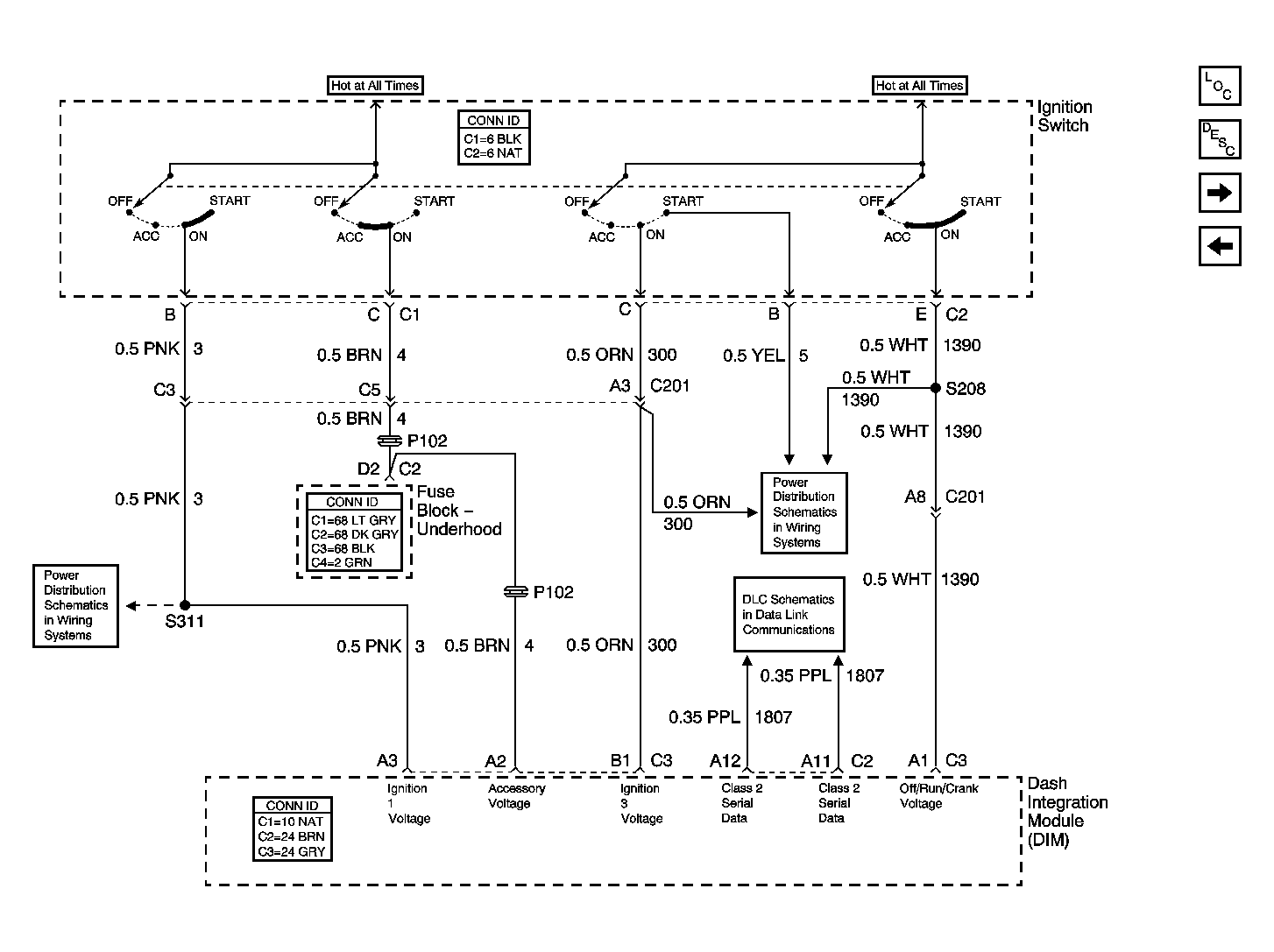

Fig 2: Ignition Inputs Schematic

GM766389

Courtesy of GENERAL MOTORS CORP.

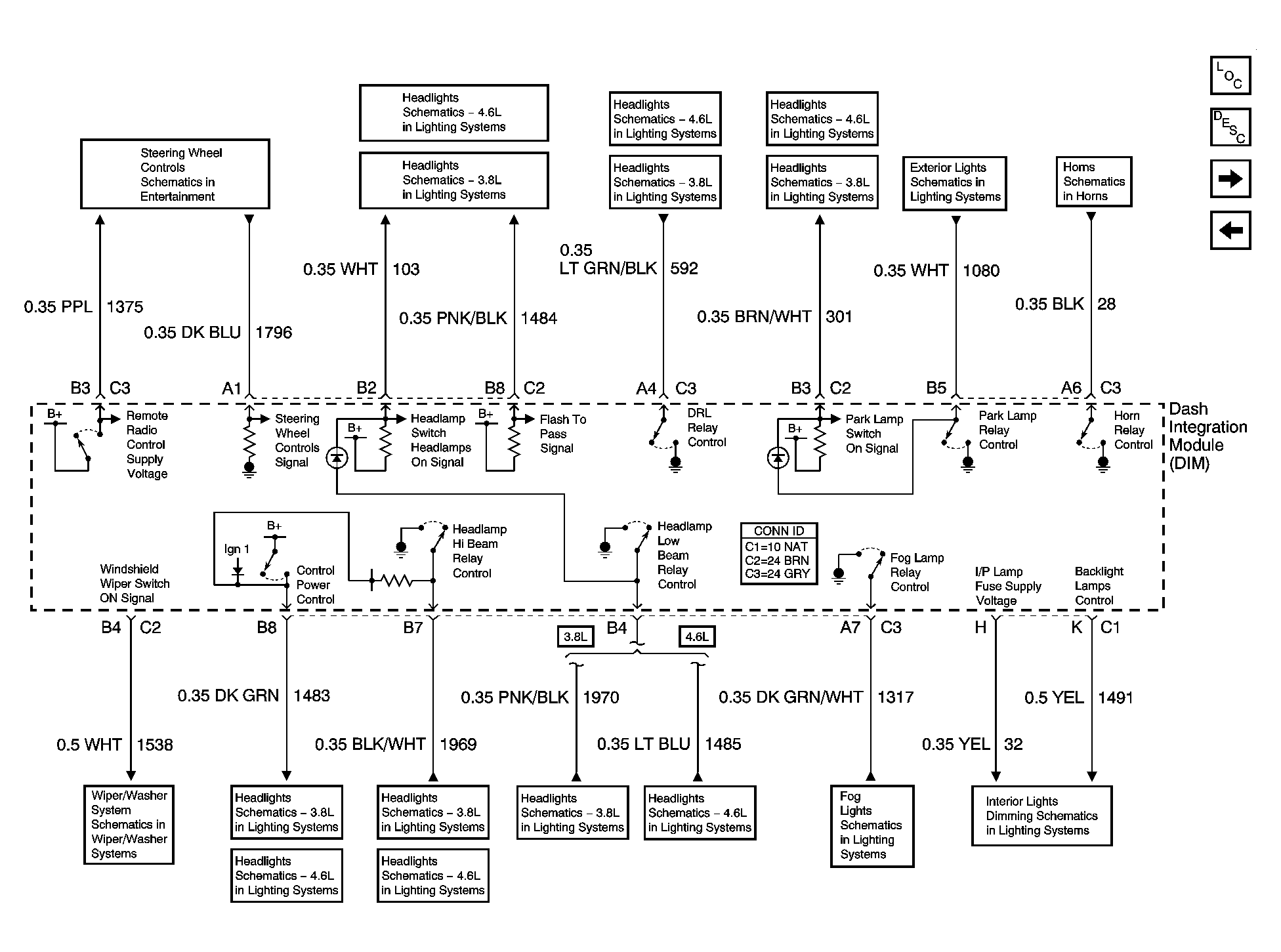

Fig 3: DIM Inputs/Outputs Schematic

GM1364666

Courtesy of GENERAL MOTORS CORP.

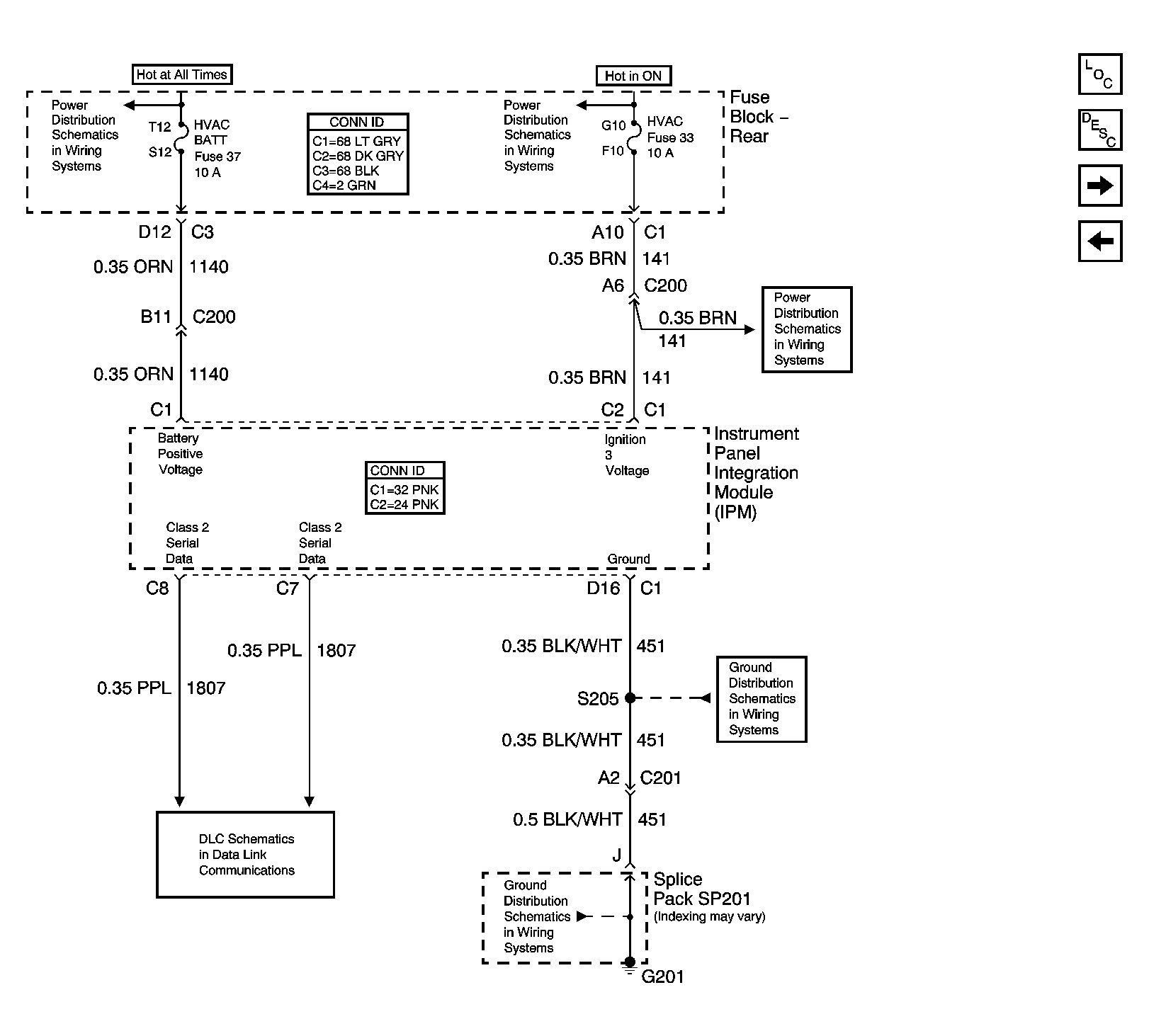

Fig 4: IPM Power & Ground Schematic

GM885744

Courtesy of GENERAL MOTORS CORP.

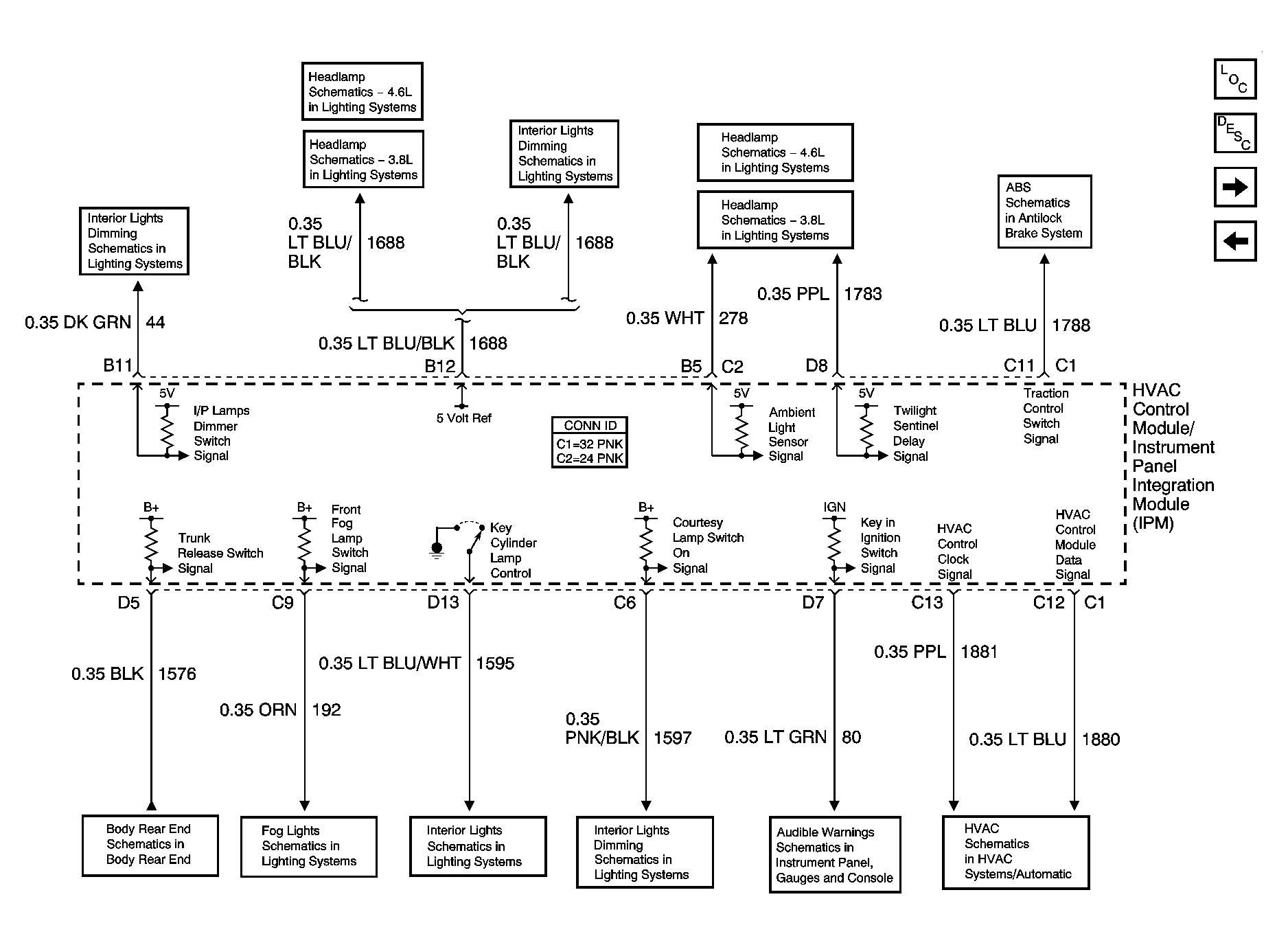

Fig 5: IPM Input/Outputs w/CJ2 - 1 Of 2

GM1546737

Courtesy of GENERAL MOTORS CORP.

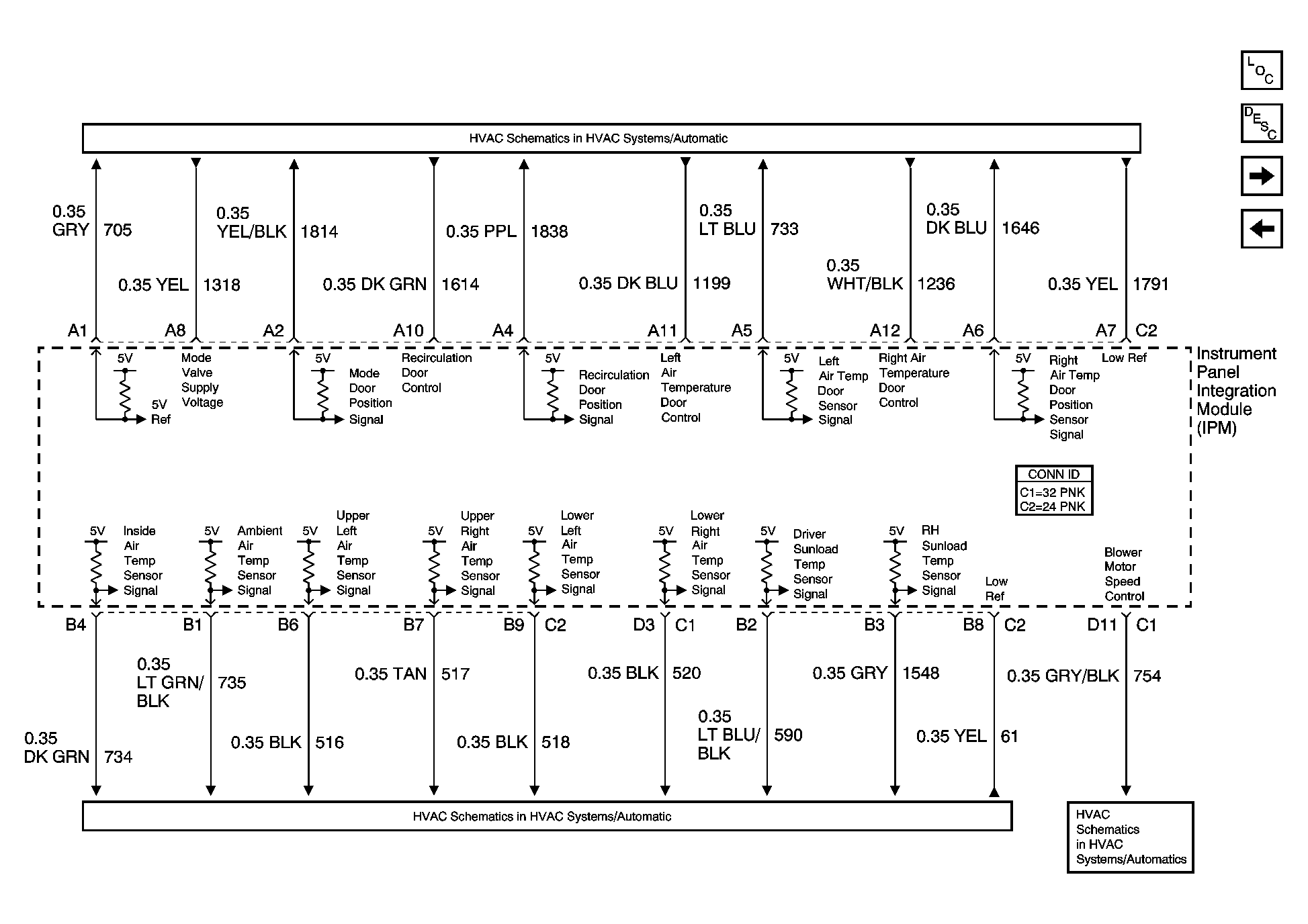

Fig 6: IPM Input/Outputs w/CJ2 Schematic - 2 Of 2

GM664429

Courtesy of GENERAL MOTORS CORP.

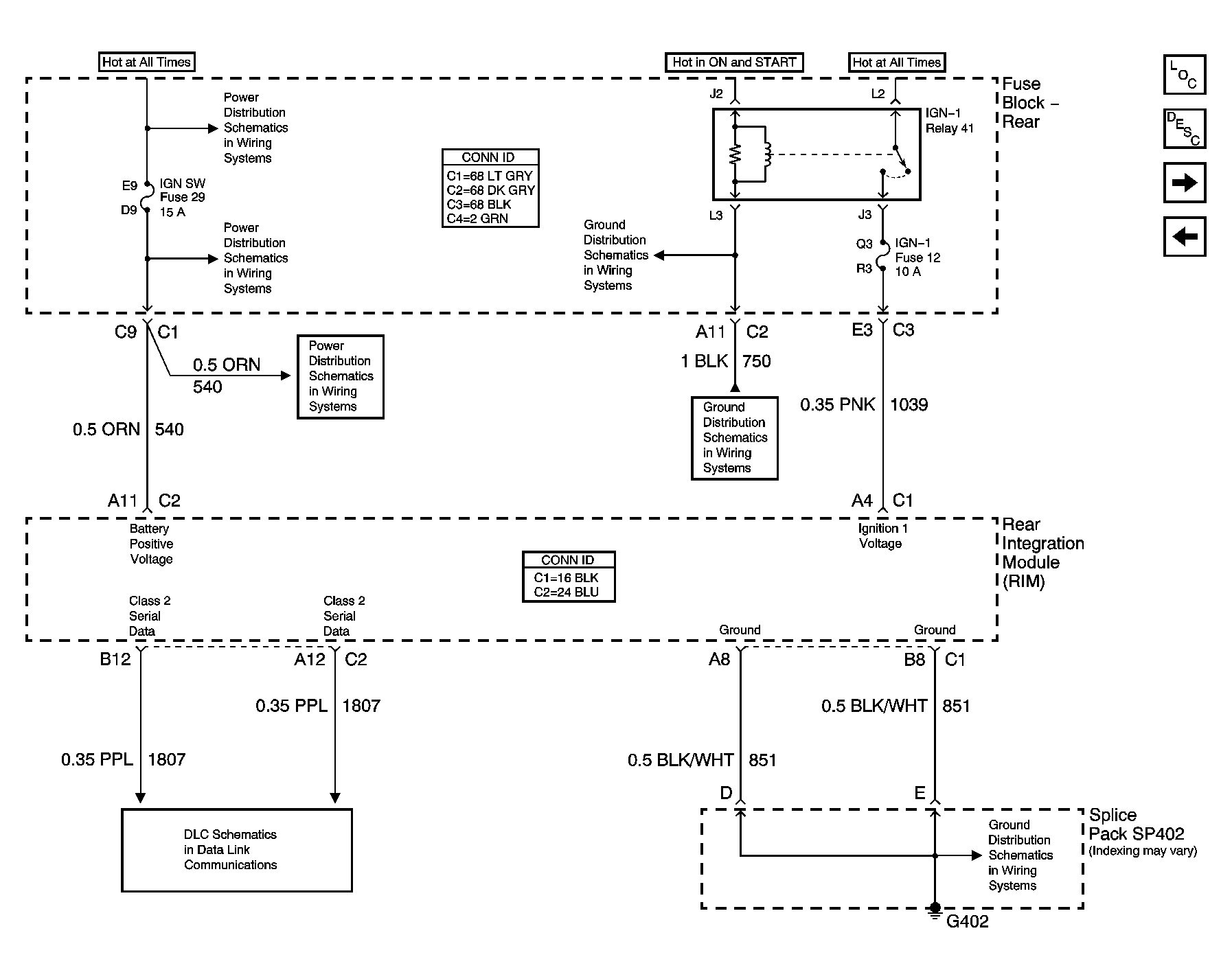

Fig 7: RIM Power & Ground Schematic

GM885747

Courtesy of GENERAL MOTORS CORP.

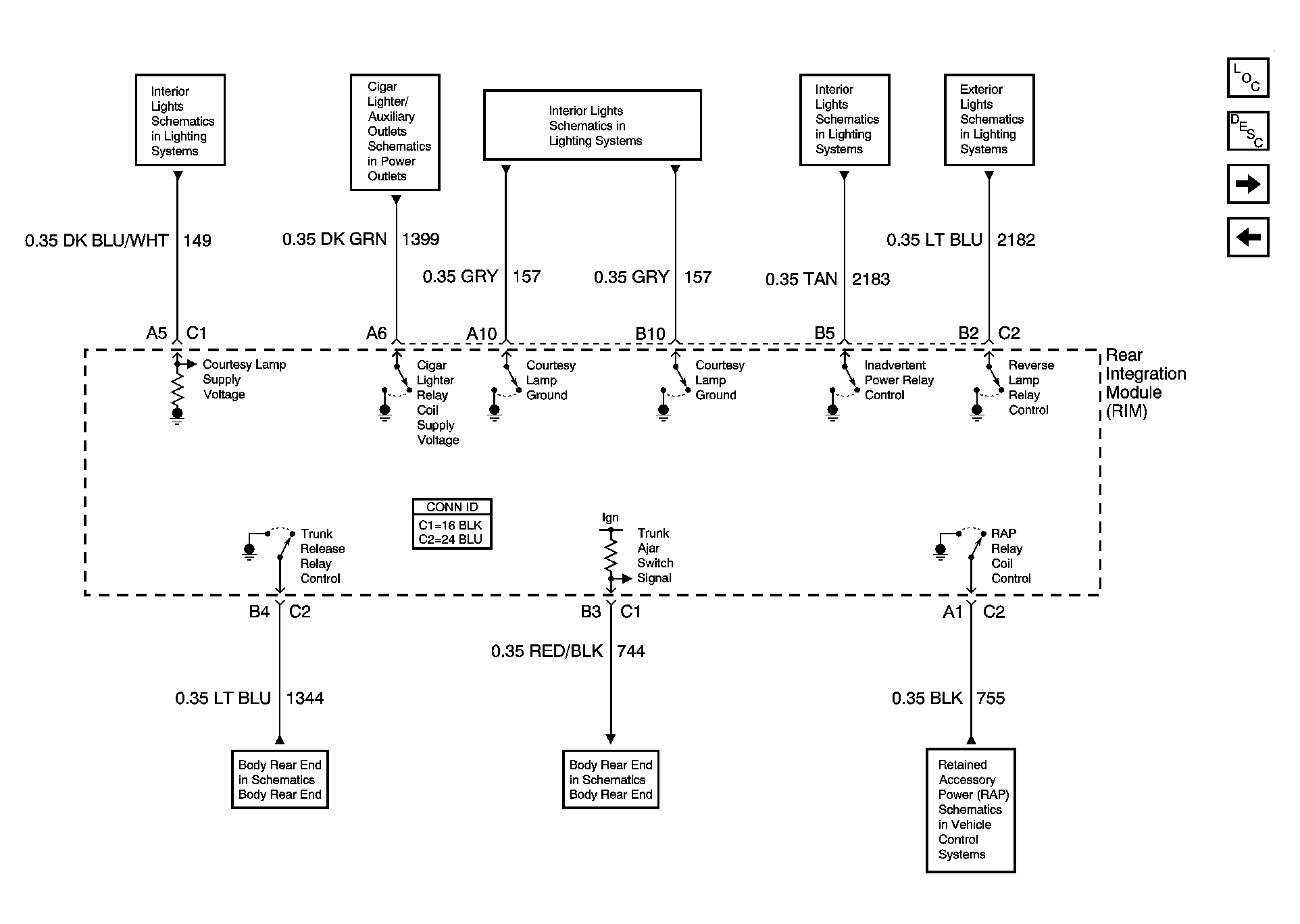

Fig 8: RIM Inputs/Outputs - 1 of 2

GM1546745

Courtesy of GENERAL MOTORS CORP.

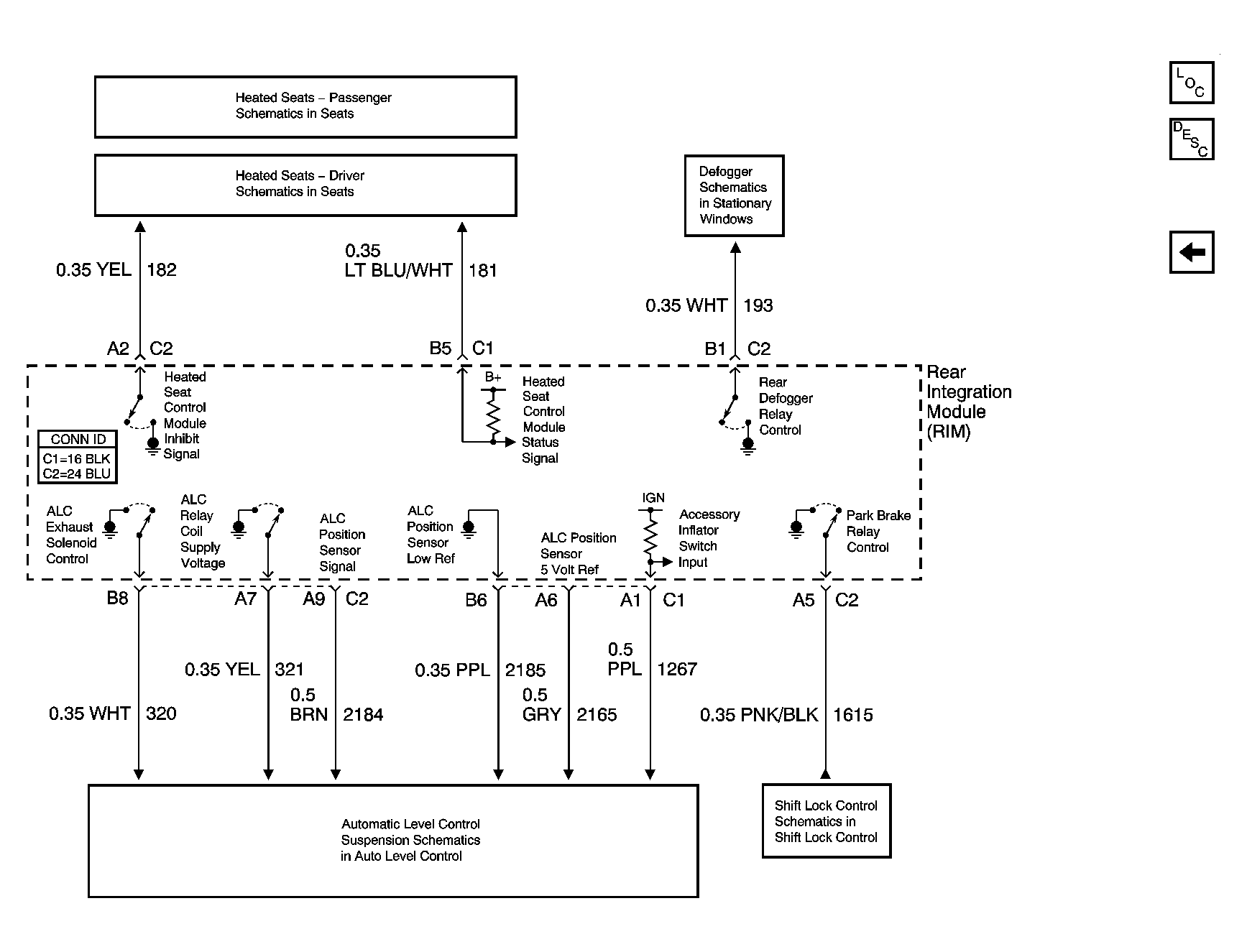

Fig 9: RIM Inputs/Outputs - 2 of 2

GM1546748

Courtesy of GENERAL MOTORS CORP.
