Installation Procedure
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front door power mirror switch to the front door armrest pull cup. Refer to Power Mirror Switch Replacement (Impala) or Power Mirror Switch Replacement (Monte Carlo) .
- Install the front and/or rear door armrest power window switch to the front and/or rear door armrest pull cup.
- For the front door refer to Power Window Switch Replacement (Impala) or Power Window Switch Replacement (Monte Carlo) .
- For the rear door refer to Power Window Switch Replacement - Rear Door (Impala) .

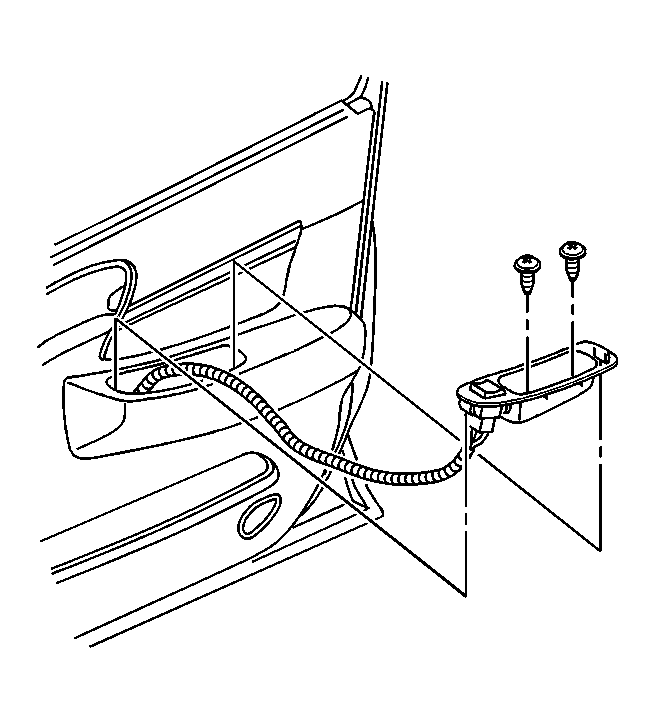

- Install the front and/or rear door armrest pull cup to the front and/or rear inner door trim panel pressing into place until fully seated.
- Install the screws to the front and/or rear door armrest pull cup
Tighten: Tighten the screws to the front and/or rear door armrest pull cup to 6 N.m (53 lb in).
NOTE:
Refer to Fastener Notice in Cautions and Notices.
