Deployment Inside Vehicle - Vehicle Scrapping Procedure

Deploy the inflator modules inside of the vehicle when destroying the vehicle or when salvaging the vehicle for parts. This includes but is not limited to the following situations:

• The vehicle has completed its useful life.
• Irreparable damage occurs to the vehicle in a non-deployment type accident.
• Irreparable damage occurs to the vehicle during a theft.
• The vehicle is being salvaged for parts to be used on a vehicle with a different VIN as opposed to rebuilding as the same VIN.

1. Turn OFF the ignition.
2. Remove the ignition key.
3. Put on safety glasses.
4. Remove all loose objects from the front seats.
5. Disconnect the inflatable restraint steering wheel module coil connector, located at the LH side of the I/P.
Fig 1: Disconnecting Inflatable Restraint Steering Wheel Module Coil Connector
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: If the vehicle is equipped with dual stage air bags, the steering wheel module and the I/P module will each have 4 wires. Refer to SIR Connector End Views  for determining the high and low circuits.
6. Cut the yellow harness connector from the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
7. Strip 13 mm (0.5 in) of insulation from all 4 SIR wires connector leads.

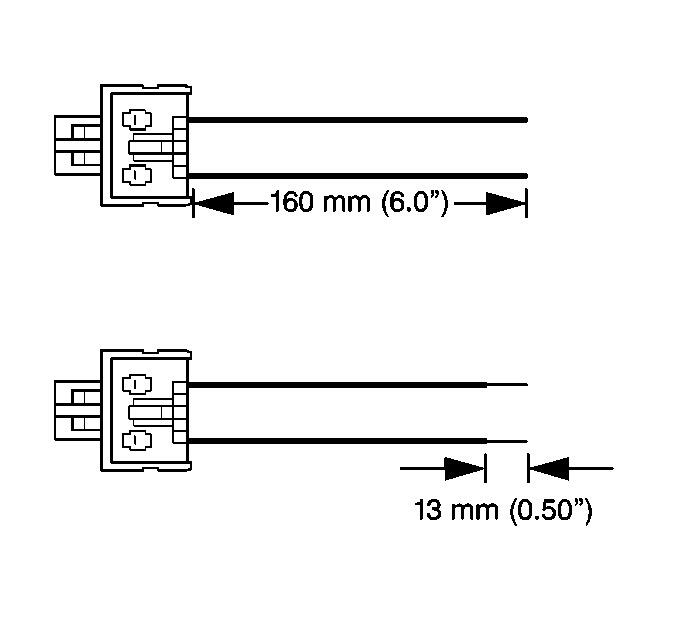

Fig 2: Stripping SIR Wires
Courtesy of GENERAL MOTORS CORP.
8. Cut two 4.6 m (15 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used for the steering wheel module deployment harness.
Fig 3: Deployment Wires
Courtesy of GENERAL MOTORS CORP.
9. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
10. Twist together 1 end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the inflator module.
11. Twist together 2 connector wire leads, the high circuits from both stages of the steering wheel module, to one of the deployment harness wires. Refer to SIR Connector End Views  in order to determine the correct circuits.
12. Inspect that the 3 wire connection is secure.

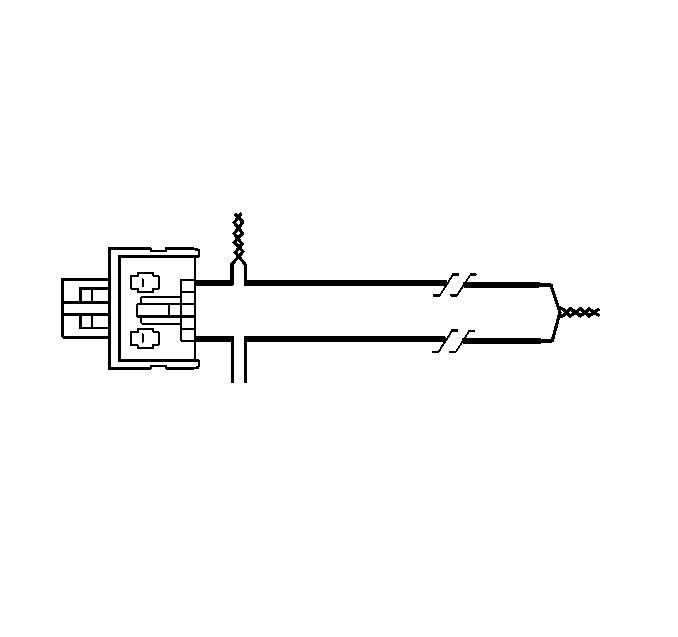

Fig 4: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
13. Bend flat the twisted connection.
Fig 5: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
14. Secure and insulate the 3 wire connection to the deployment harness using electrical tape.
Fig 6: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
15. Twist together 2 connector wire leads, the low circuits from both stages of the steering wheel module, to the deployment harness wire. Refer to SIR Connector End Views  in order to determine the correct circuits.
16. Inspect that the 3 wire connection is secure.
Fig 7: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
17. Bend flat the twisted connection.
Fig 8: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
18. Secure and insulate the 3 wire connection to the deployment harness using electrical tape.

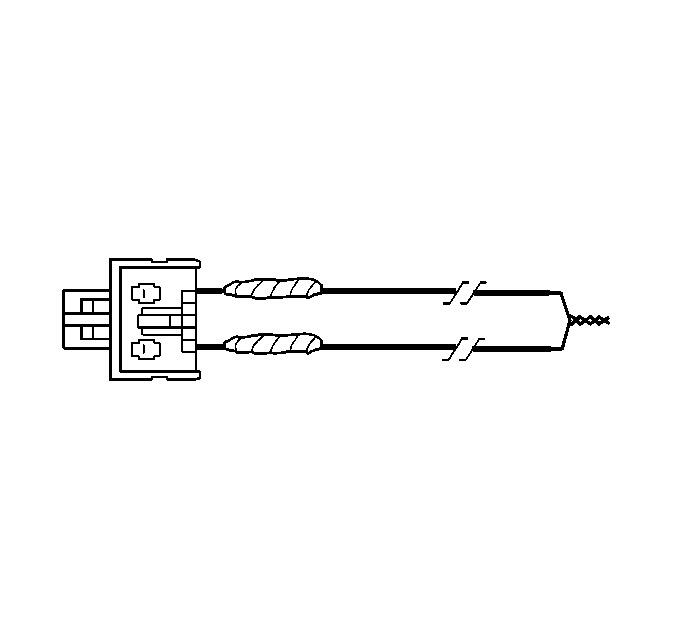

Fig 9: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
19. Connect the deployment harness to the steering wheel module connector.
Fig 10: Connecting Deployment Harness To Steering Wheel Module Connector
Courtesy of GENERAL MOTORS CORP.
20. Route the deployment harness out of the driver side of the vehicle.

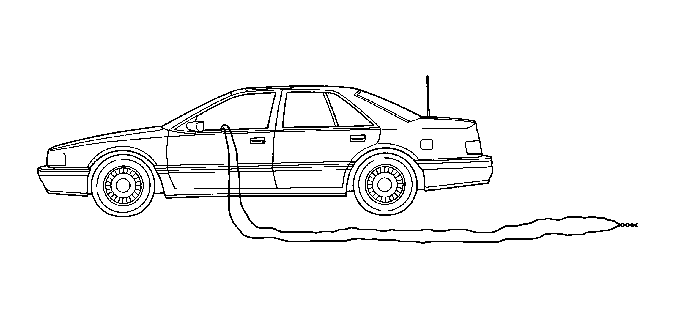

Fig 11: Routing Deployment Harness - Driver Side
Courtesy of GENERAL MOTORS CORP.
21. Disconnect the inflatable restraint side impact module - LF connector (1), located under the driver seat.
Fig 12: View Of Deployment Harness At Side Impact Module
Courtesy of GENERAL MOTORS CORP.
22. Cut the side impact module - LF connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
23. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
Fig 13: Identifying Proper Stripping Of Connection Wire Leads
Courtesy of GENERAL MOTORS CORP.
24. Cut two 4.6 m (15 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used for the side impact module - LF deployment harness.
Fig 14: Deployment Wires
Courtesy of GENERAL MOTORS CORP.
25. Strip 13 mm (0.5 in) of insulation from both ends of these wires.
26. Twist together 1 end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the inflator module.
27. Twist together 1 connector wire lead to 1 deployment wire.
28. Inspect that the previous connection is secure.
Fig 15: View Of Proper Twisting Of Connector Wire Lead To Deployment Wire
Courtesy of GENERAL MOTORS CORP.
29. Bend flat the twisted connection.
30. Secure and insulate the connection using electrical tape.

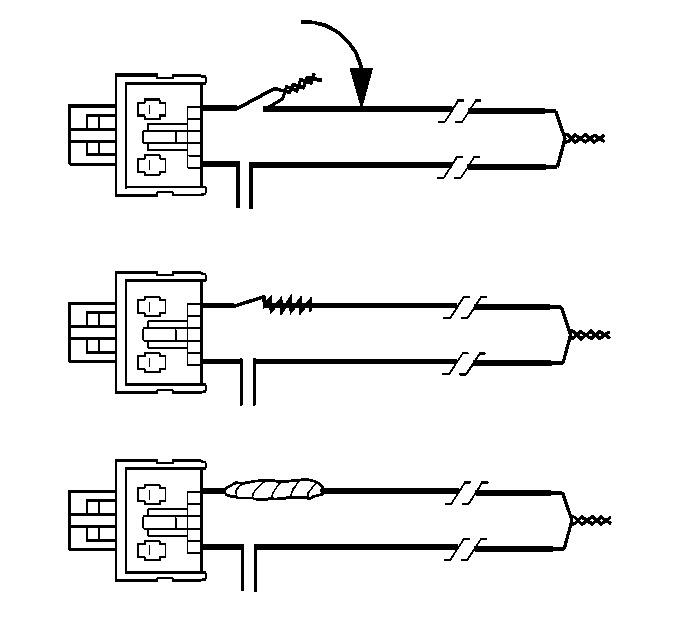

Fig 16: Bending Twisted Connection Flat & Insulating With Tape
Courtesy of GENERAL MOTORS CORP.
31. Twist together, bend, and tape the remaining connector wire lead to the remaining deployment wire.
Fig 17: Taping Remaining Connector Wire Lead To Remaining Deployment Wire
Courtesy of GENERAL MOTORS CORP.
32. Connect the deployment harness to the side impact module - LF connector (1).
Fig 18: View Of Deployment Harness At Side Impact Module
Courtesy of GENERAL MOTORS CORP.

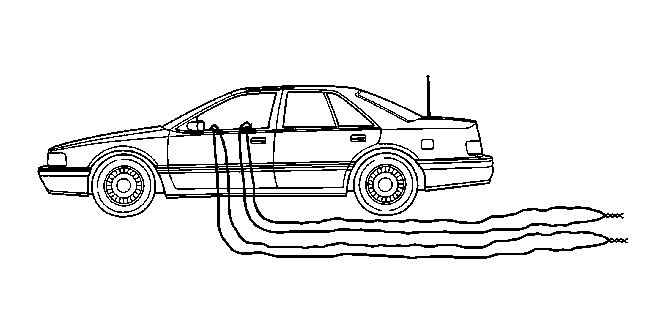

Fig 19: Routing Second Deployment Harness - Driver Side
Courtesy of GENERAL MOTORS CORP.
33. Route the deployment harness out of the driver side of the vehicle.
34. Disconnect the inflatable restraint I/P module connector, located at the RH side of the instrument panel.
Fig 20: Disconnecting Inflatable Restraint I/P Module Connector
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: If the vehicle is equipped with dual stage air bags, the steering wheel module and the I/P module will each have 4 wires. Refer to SIR Connector End Views  for determining the high and low circuits.
35. Cut the 4 SIR wires leading to the connector from the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
36. Strip 13 mm (0.5 in) of insulation from all 4 SIR wires connector leads.
Fig 21: Stripping SIR Wires
Courtesy of GENERAL MOTORS CORP.
37. Cut two 4.6 m (15 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used for the I/P module deployment harness.
Fig 22: Deployment Wires
Courtesy of GENERAL MOTORS CORP.
38. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
39. Twist together 1 end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the inflator module.
40. Twist together 2 connector wire leads, the high circuits from both stages of the I/P module, to one of the deployment harness wires. Refer to SIR Connector End Views  in order to determine the correct circuits.
41. Inspect that the 3 wire connection is secure.
Fig 23: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
42. Bend flat the twisted connection.
Fig 24: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
43. Secure and insulate the 3 wire connection to the deployment harness using electrical tape.
Fig 25: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
44. Twist together 2 connector wire leads, the low circuits from both stages of the I/P module, to the deployment harness wire. Refer to SIR Connector End Views  in order to determine the correct circuits.
45. Inspect that the 3 wire connection is secure.
Fig 26: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
46. Bend flat the twisted connection.
Fig 27: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
47. Secure and insulate the 3 wire connection to the deployment harness using electrical tape.
Fig 28: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
48. Connect the deployment harness to the I/P module connector.
Fig 29: Connecting Deployment Harness To I/P Module Connector
Courtesy of GENERAL MOTORS CORP.
49. Route the deployment harness out of the passenger side of the vehicle.

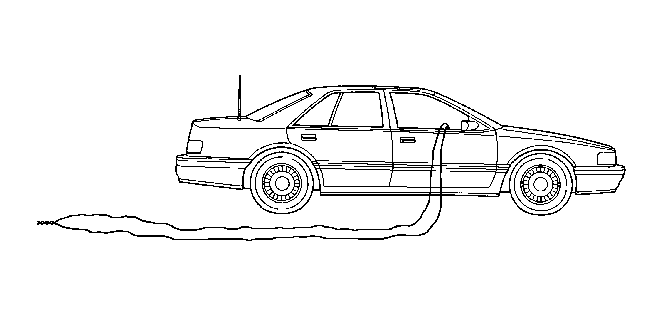

Fig 30: Routing Deployment Harness - Passenger Side
Courtesy of GENERAL MOTORS CORP.
50. Completely cover the windshield and the front door openings with a drop cloth.
51. Stretch out all of the deployment harness wires on the left and right side of the vehicle to their full length.
52. Deploy each deployment loop one at a time.
53. Place a power source, 12 V minimum/2 A minimum, i.e., a vehicle battery, near the shorted end of the harnesses.
54. Separate one set of wires and touch the wire ends to the power source in order to deploy the inflator modules, doing only one inflator module at a time.
55. Disconnect the deployment harness from the power source and twist the wire ends together.
56. Continue the same process with the remaining deployment harnesses that are available.
57. Remove the drop cloth from the vehicle.
58. Disconnect all harnesses from the vehicle.
59. Discard the harnesses.
60. Scrap the vehicle in the same manner as a non-SIR equipped vehicle.
61. If one or more of the inflator modules did not deploy, perform the following steps to remove the undeployed modules from the vehicle:
    • If the steering wheel module did not deploy, refer to Inflatable Restraint Steering Wheel Module Replacement (Impala)  or Inflatable Restraint Steering Wheel Module Replacement (Monte Carlo) .
    • If the I/P module did not deploy, refer to Inflatable Restraint Instrument Panel Module Replacement .
    • If the side impact module - LF did not deploy, refer to Inflatable Restraint Side Impact Module Replacement - Front .
62. Call the Technical Assistance Group for further assistance.
