Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to the following procedures:
  2. Remove the front seat back from the front seat. Refer to Seat Back Replacement - Front (Bucket Seat)  or Seat Back Replacement - Front (Split Bench) .
  3. Remove the front seat cushion cover from the front seat cushion. Refer to Seat Cushion Cover Replacement - Front (Bucket Seat)  or Seat Cushion Cover Replacement - Front (Split Bench) .
  4. Remove the front seat cushion from the front seat frame. Refer to Seat Cushion Replacement - Front .
  5. Remove the front seat recliner assembly from the front seat cushion frame. Refer to Seat Back Recliner Replacement - Front .
  6. Remove the bolts from the front seat cushion frame to the front seat track adjusters.
  7. Remove the front seat frame from the front seat track adjusters.

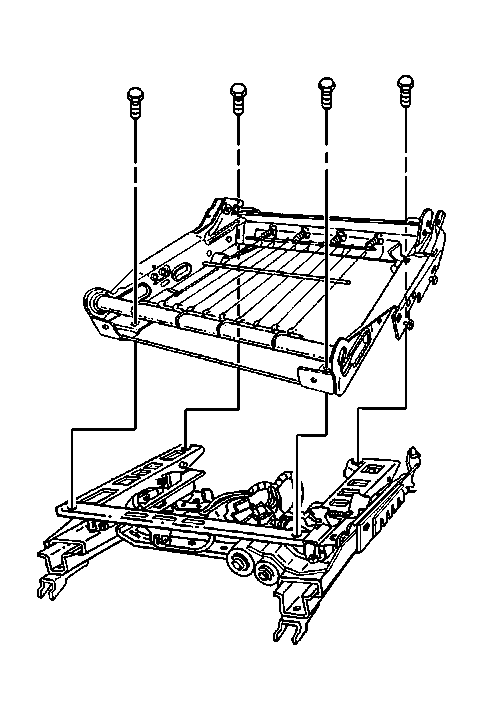

    8. Fig 1: Front Seat Frame & Bolts
    GM305146Courtesy of GENERAL MOTORS CORP.
  8. For split bench, remove the bolts from the front seat frame to the front seat track adjusters.

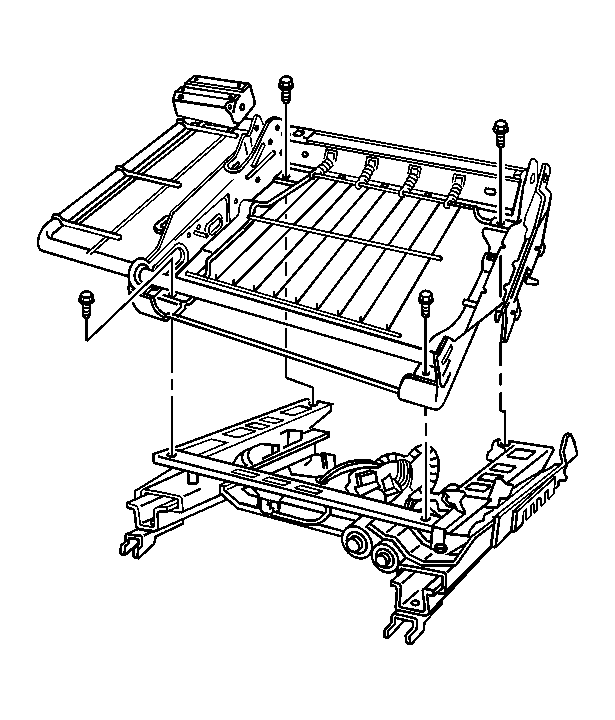

    9. Fig 2: Split Bench Front Seat Frame & Bolts
    GM521604Courtesy of GENERAL MOTORS CORP.
  9. Remove the front seat cushion frame from the front seat track adjusters.
