Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear seat armrest to the rear seat back retainer slot.

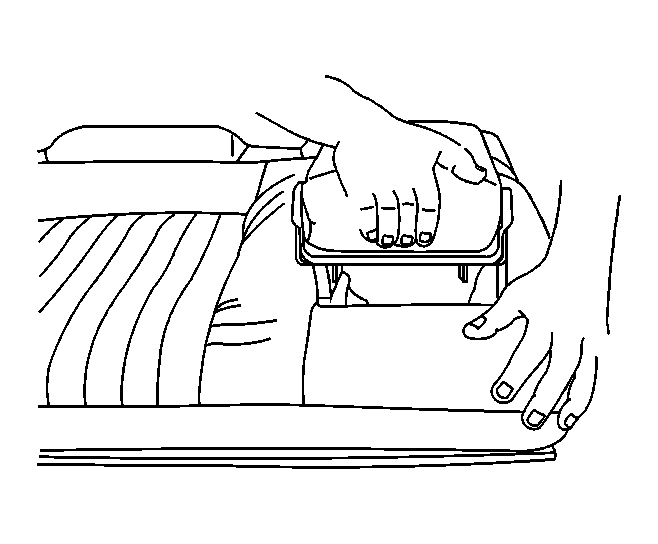

Fig 1: Positioning Rear Seat Armrest To Back Retainer Slot (Rear Seat)

Courtesy of GENERAL MOTORS CORP.

Install the rear seat armrest, pressing into place until the armrest studs are fully seated through the seat back.

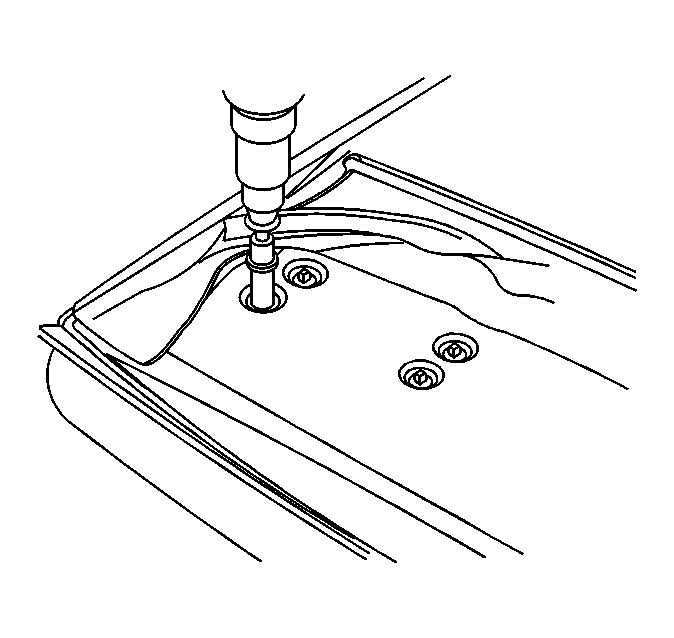

Fig 2: Installing Rear Seat Armrest (Rear Seat)

Courtesy of GENERAL MOTORS CORP.

Fold down the rear seat back.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear seat armrest nuts.
Tighten: Tighten the rear seat armrest nuts to 3 N.m (27 lb in).

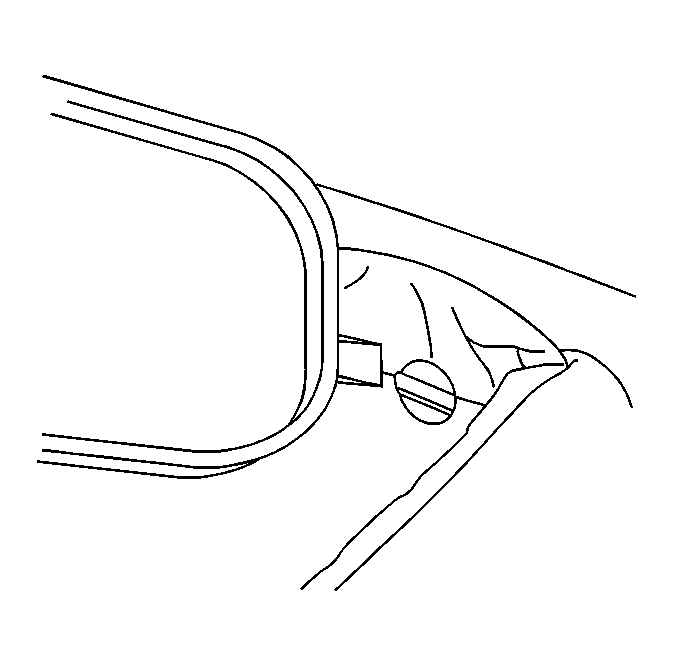

Fig 3: Installing Rear Seat Armrest Bolts (Rear Seat)

Courtesy of GENERAL MOTORS CORP.

Pull back the carpet and refasten the J-hook retainers.
Reposition the rear seat to the upright position.

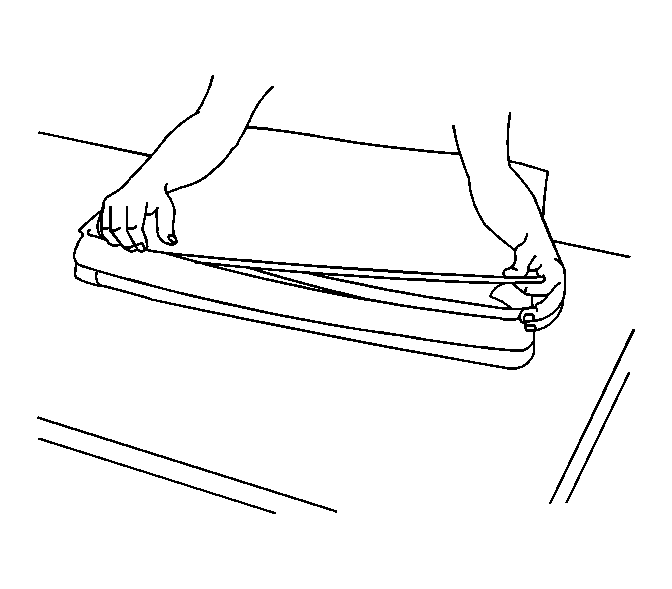

Fig 4: Refastening J-Hook Retainers (Rear Seat)

Courtesy of GENERAL MOTORS CORP.
