Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install rear seat back sound barrier.

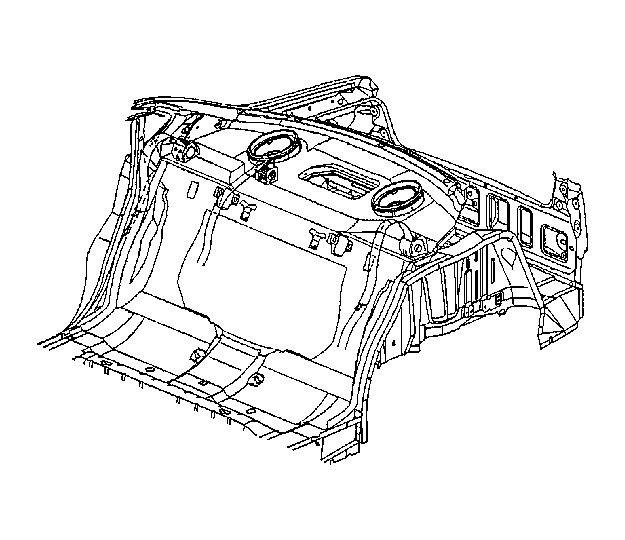

    2. Fig 1: Rear Seat Back Sound Barrier
    GM460555Courtesy of GENERAL MOTORS CORP.
  2. Install the rear window trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Impala)  or Trim Panel Replacement - Rear Window Shelf (Monte Carlo)  .
  3. Install the retainers to the rear compartment trim panels.
  4. Install the rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower (Impala)  or Trim Panel Replacement - Rear Quarter Lower (Monte Carlo)  .
  5. Install the rear seat back. Refer to Seat Back Replacement - Rear (Fixed) or Seat Back Replacement - Rear (Folding) in Seats.
  6. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
