Instrument Cluster Schematics

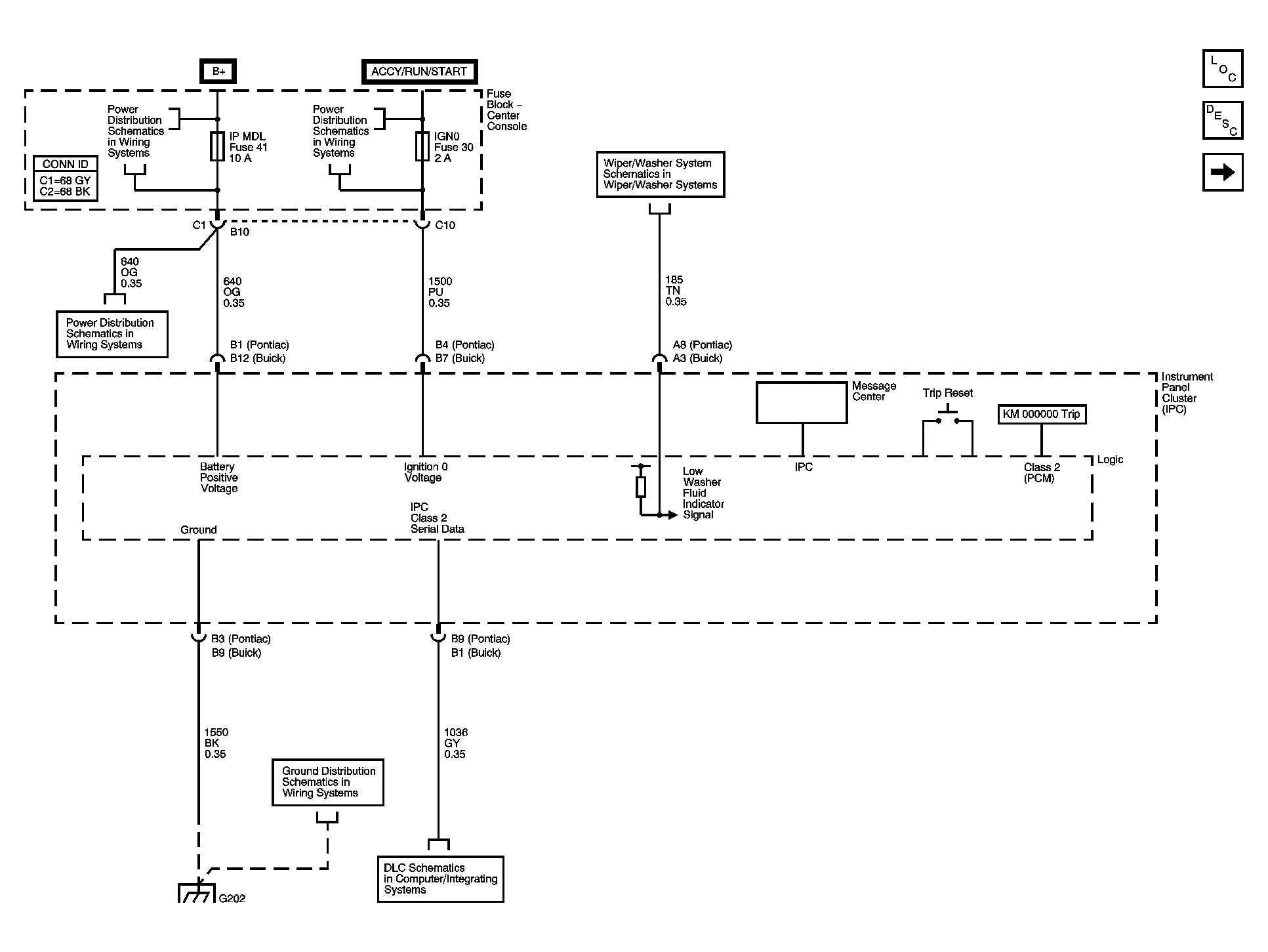

Fig 1: Power, Ground, Serial Data and Message Center

Courtesy of GENERAL MOTORS CORP.

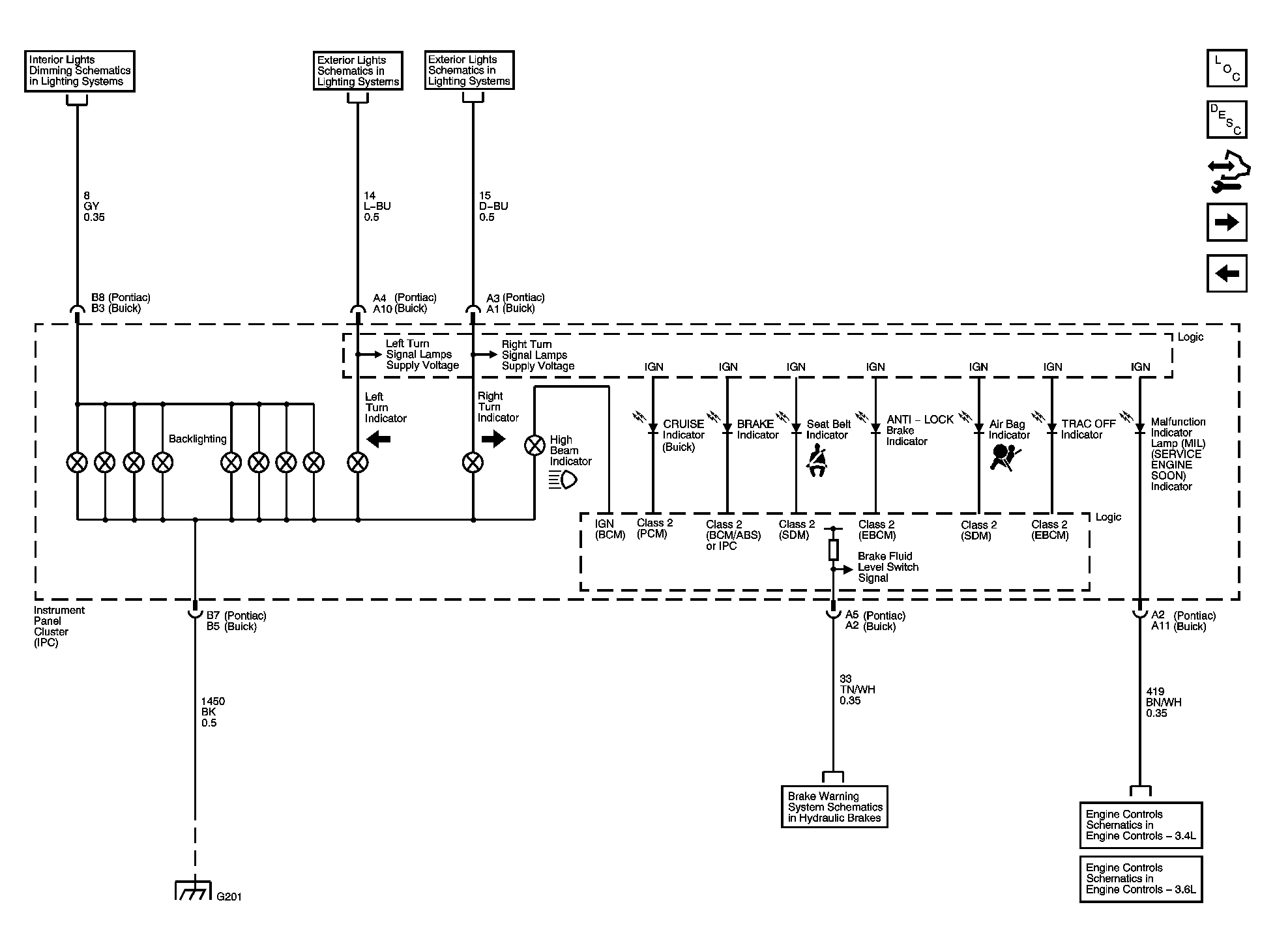

Fig 2: Indicators

Courtesy of GENERAL MOTORS CORP.

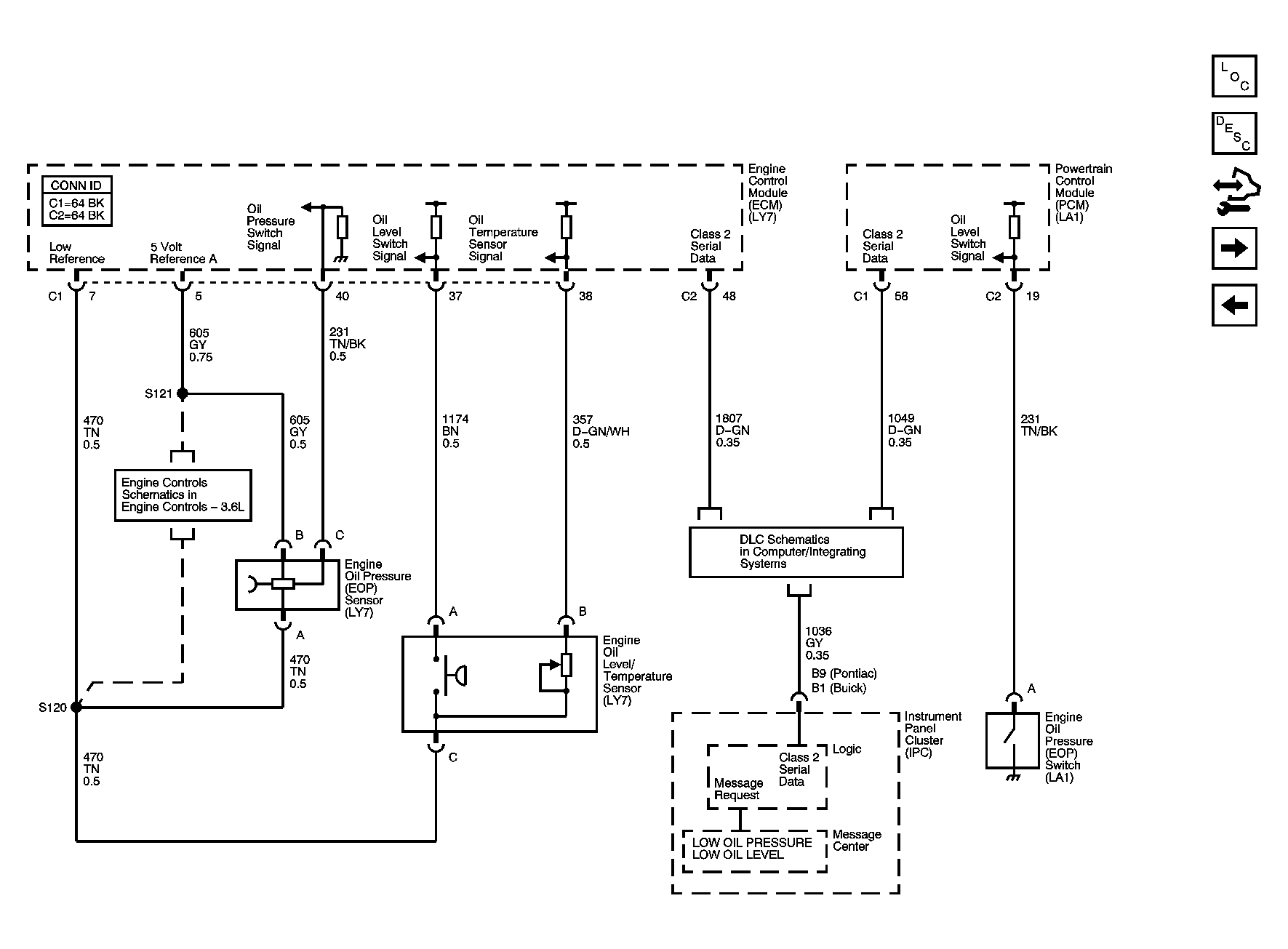

Fig 3: Engine Oil Pressure (EOP) Sensor, Engine Oil Level Sensor and Indicator

Courtesy of GENERAL MOTORS CORP.

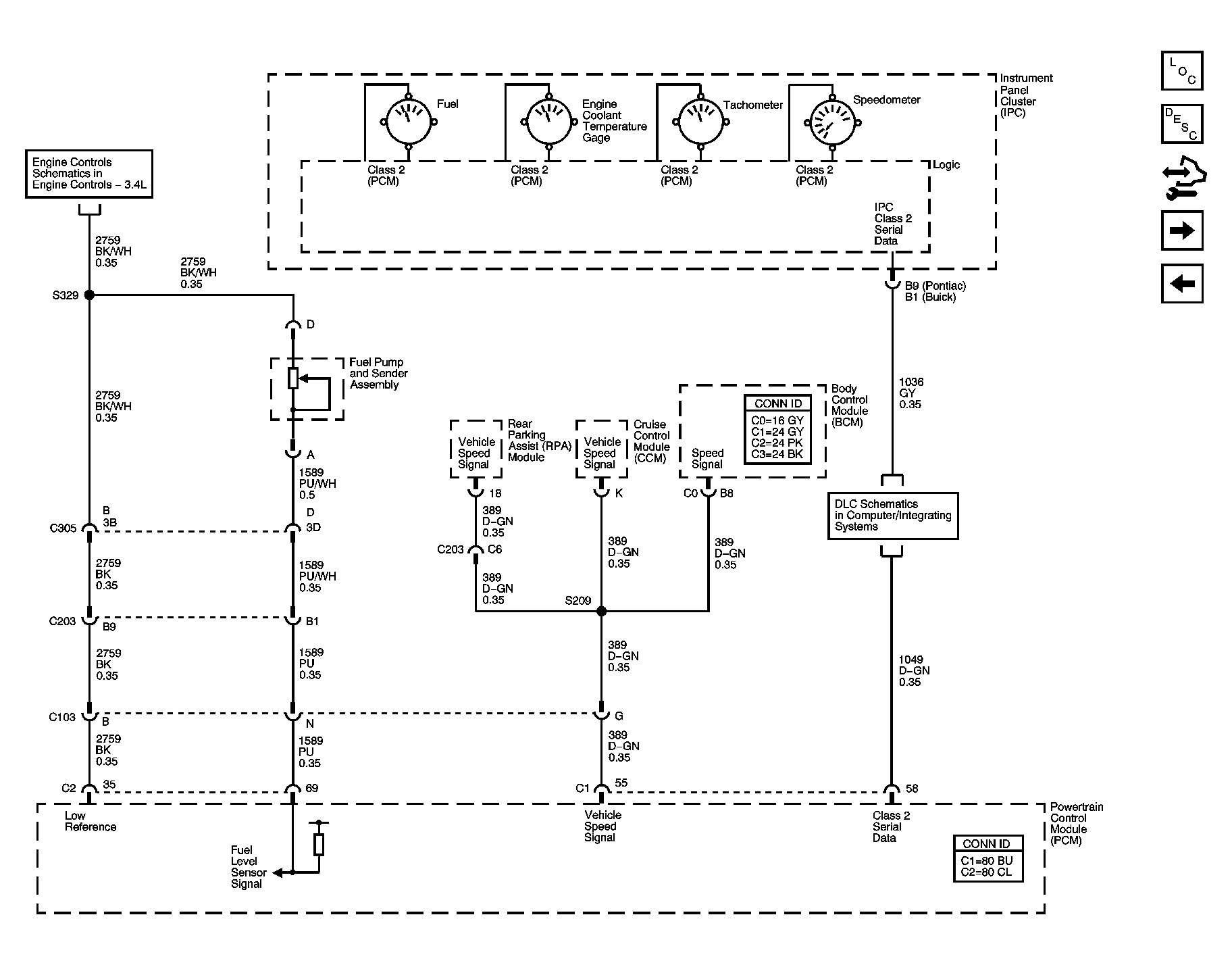

Fig 4: Gages - 3.4L

Courtesy of GENERAL MOTORS CORP.

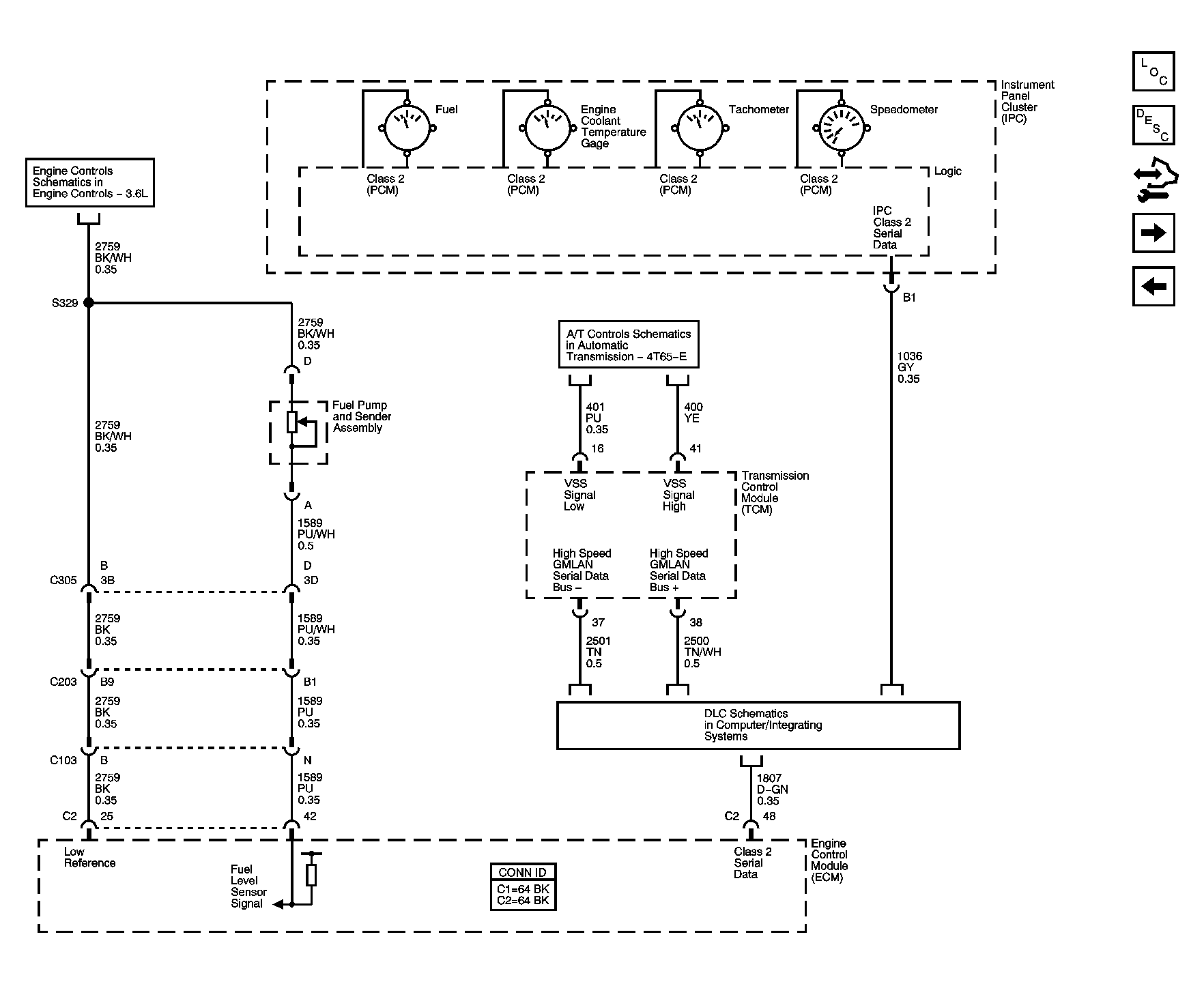

Fig 5: Gages - 3.6L

Courtesy of GENERAL MOTORS CORP.

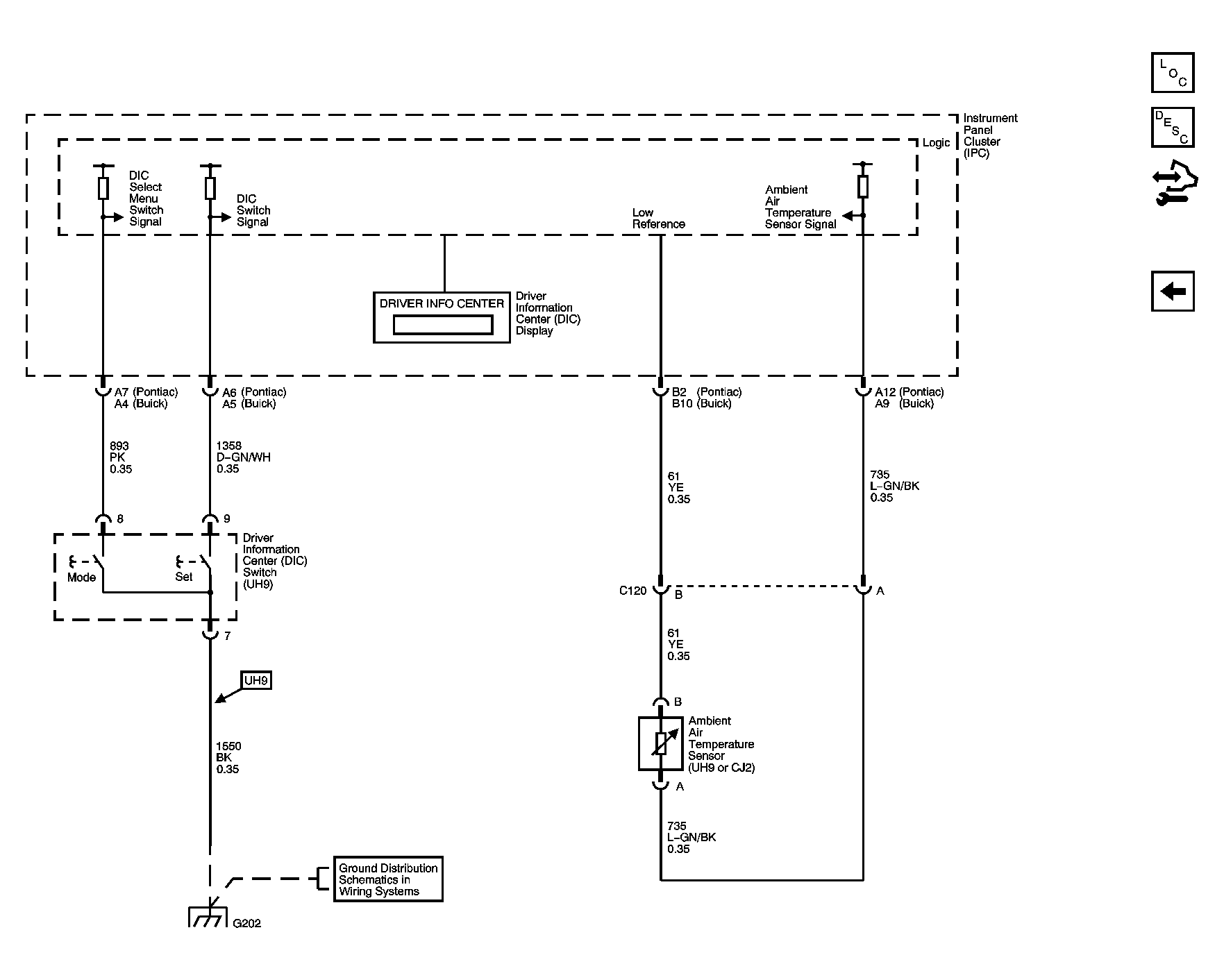

Fig 6: Driver Information Center (DIC)

Courtesy of GENERAL MOTORS CORP.
