Installation Procedure

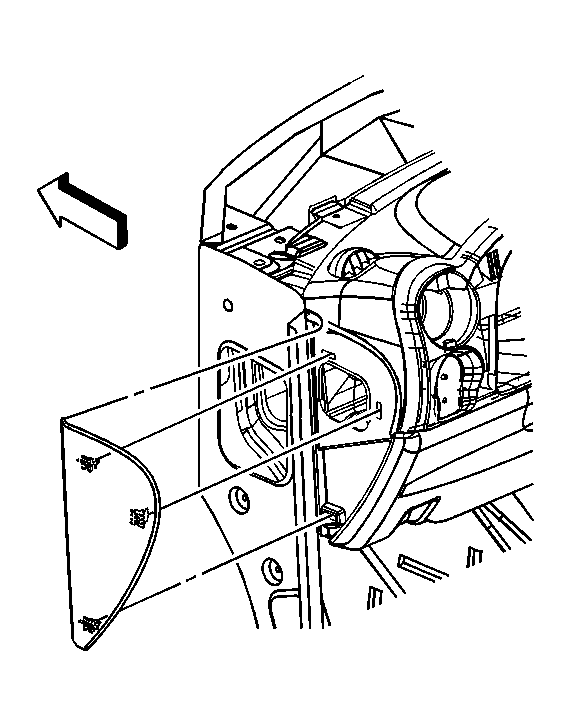

    Fig 1: View Of Instrument Panel (I/P) Outer Trim Cover
    GM618059Courtesy of GENERAL MOTORS CORP.
  1. Align the tabs on the IP trim cover to slots in the IP retainers.
  2. Install the IP trim cover by pressing into the retainers until fully seated.

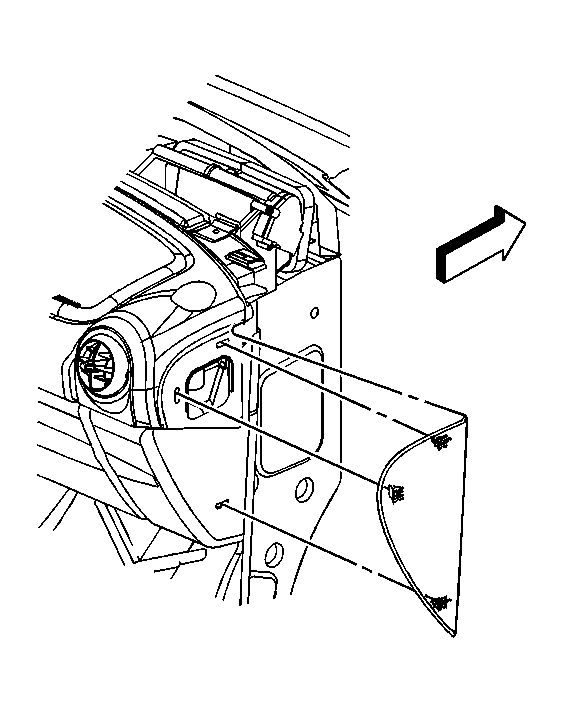

    Fig 2: Locating IP Trim Cover
    GM618060Courtesy of GENERAL MOTORS CORP.
