Installation Procedure

    Fig 1: Head Up Display Switch Electrical Connectors
    GM784930Courtesy of GENERAL MOTORS CORP.
  1. Install the electrical connectors to the head up display switch.
    2. Fig 2: Locating Cluster Trim Plate
    GM784927Courtesy of GENERAL MOTORS CORP.
  2. Install the head up display switch to the cluster trim plate.

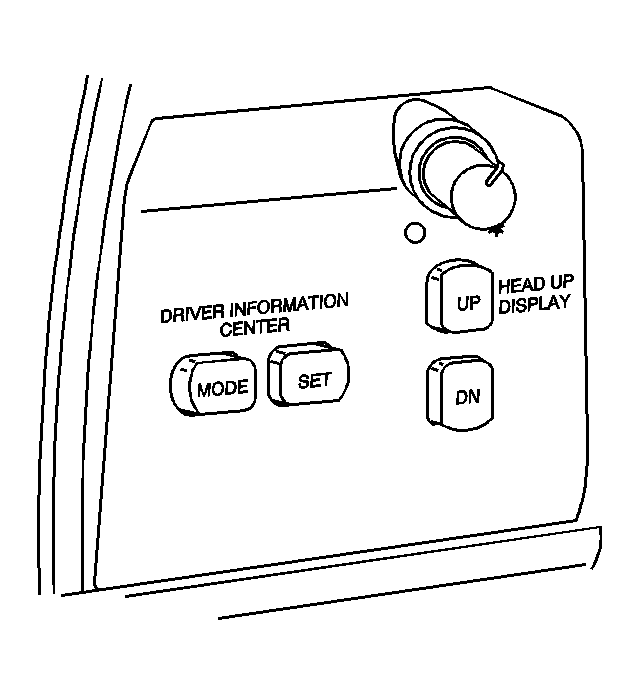

    3. Fig 3: View Of Head Up Display Switch
    GM771852Courtesy of GENERAL MOTORS CORP.
  3. Push the switch assembly to the cluster trim plate until seated.
