Removal Procedure

  1. Remove the rear door lock. Refer to Lock Replacement - Rear Door .

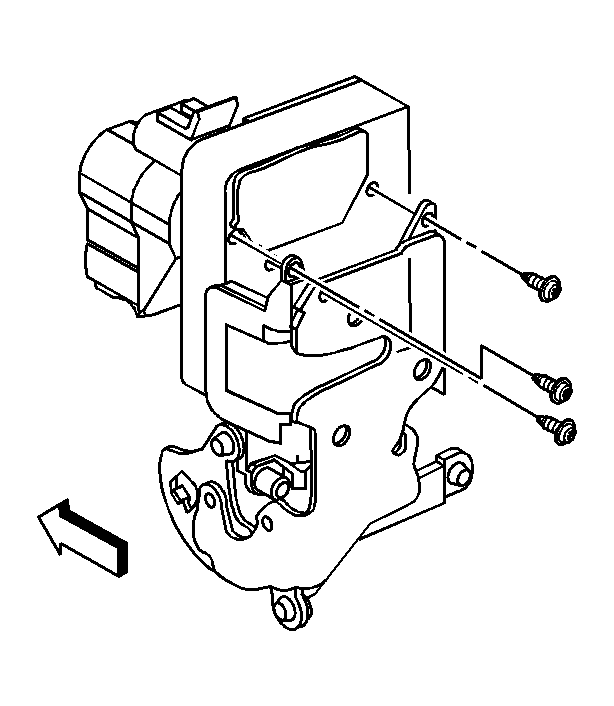

    2. Fig 1: Door Lock, Actuator & Screws
    GM757246Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear door lock to rear door lock actuator screws.
  3. Remove the rear door actuator from the rear door lock.
