Theft Deterrent System Schematics

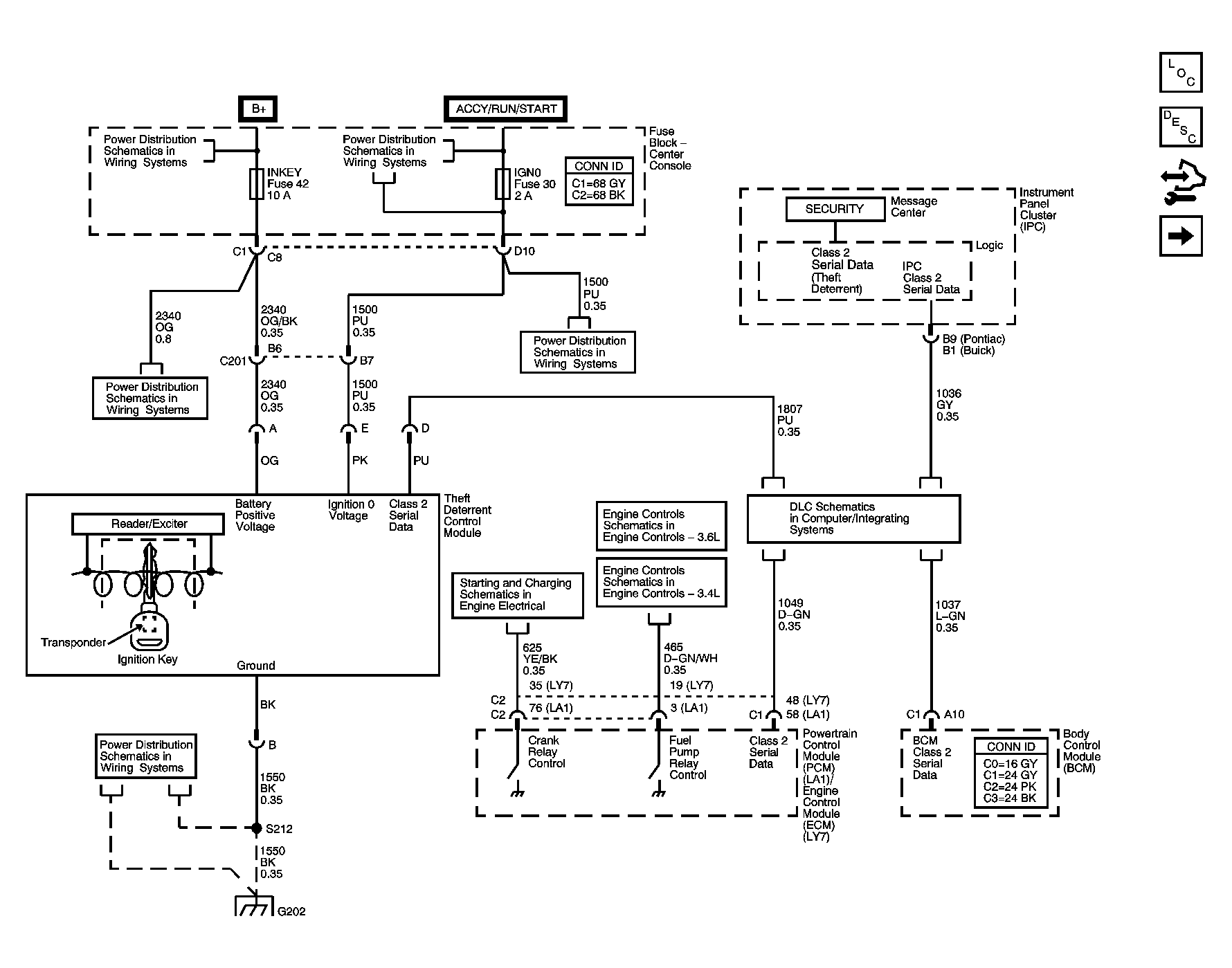

Fig 1: Fuel and Starter Disabling
GM1499590Courtesy of GENERAL MOTORS CORP.

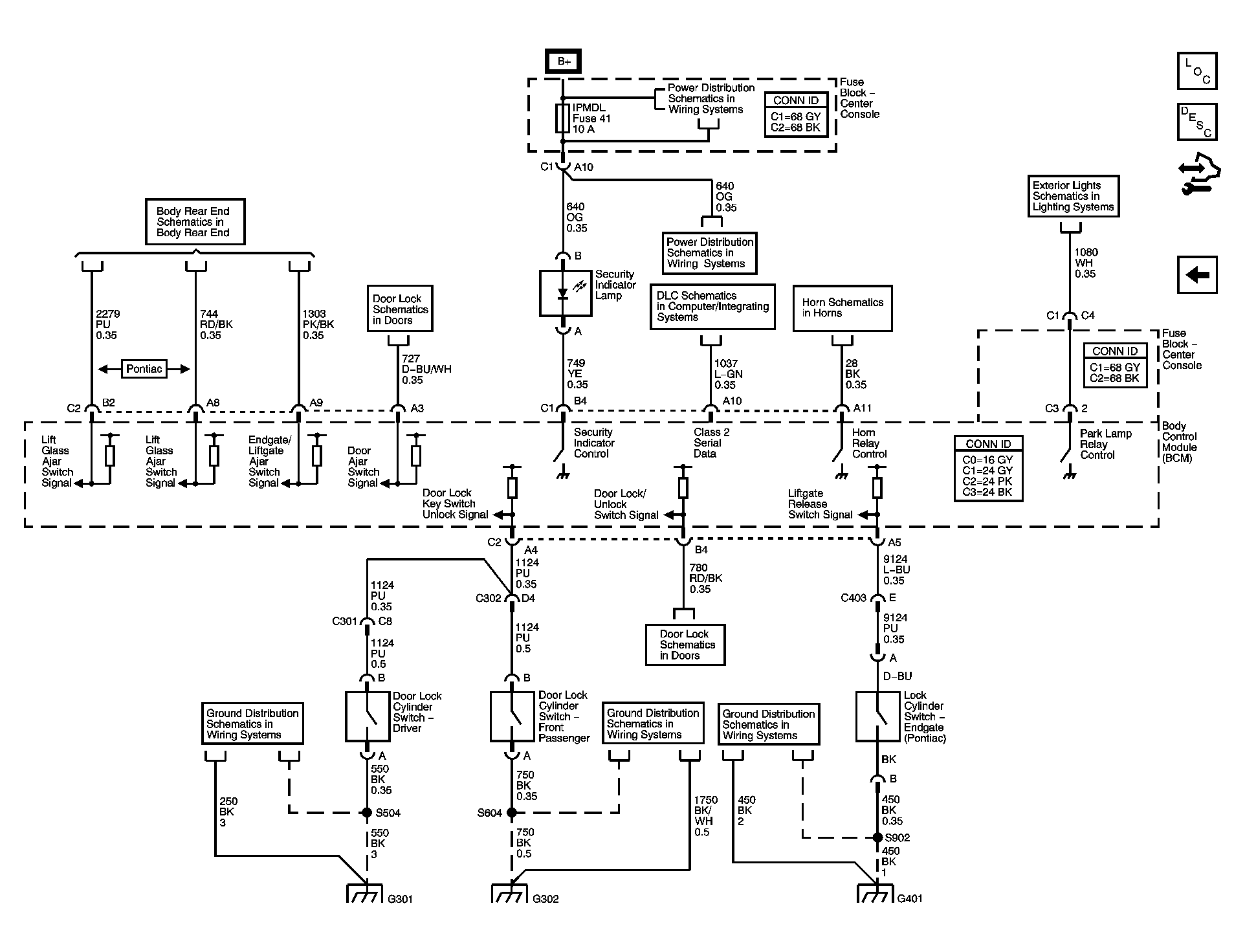

Fig 2: Indicators, Intrusion Detection and Warning
GM1499853Courtesy of GENERAL MOTORS CORP.
Fig 3: Door Switches
GM1499760Courtesy of GENERAL MOTORS CORP.
Fig 4: Lift Window, Endgate and Liftgate Switches
GM1500799Courtesy of GENERAL MOTORS CORP.
