Radio/Audio System Schematics

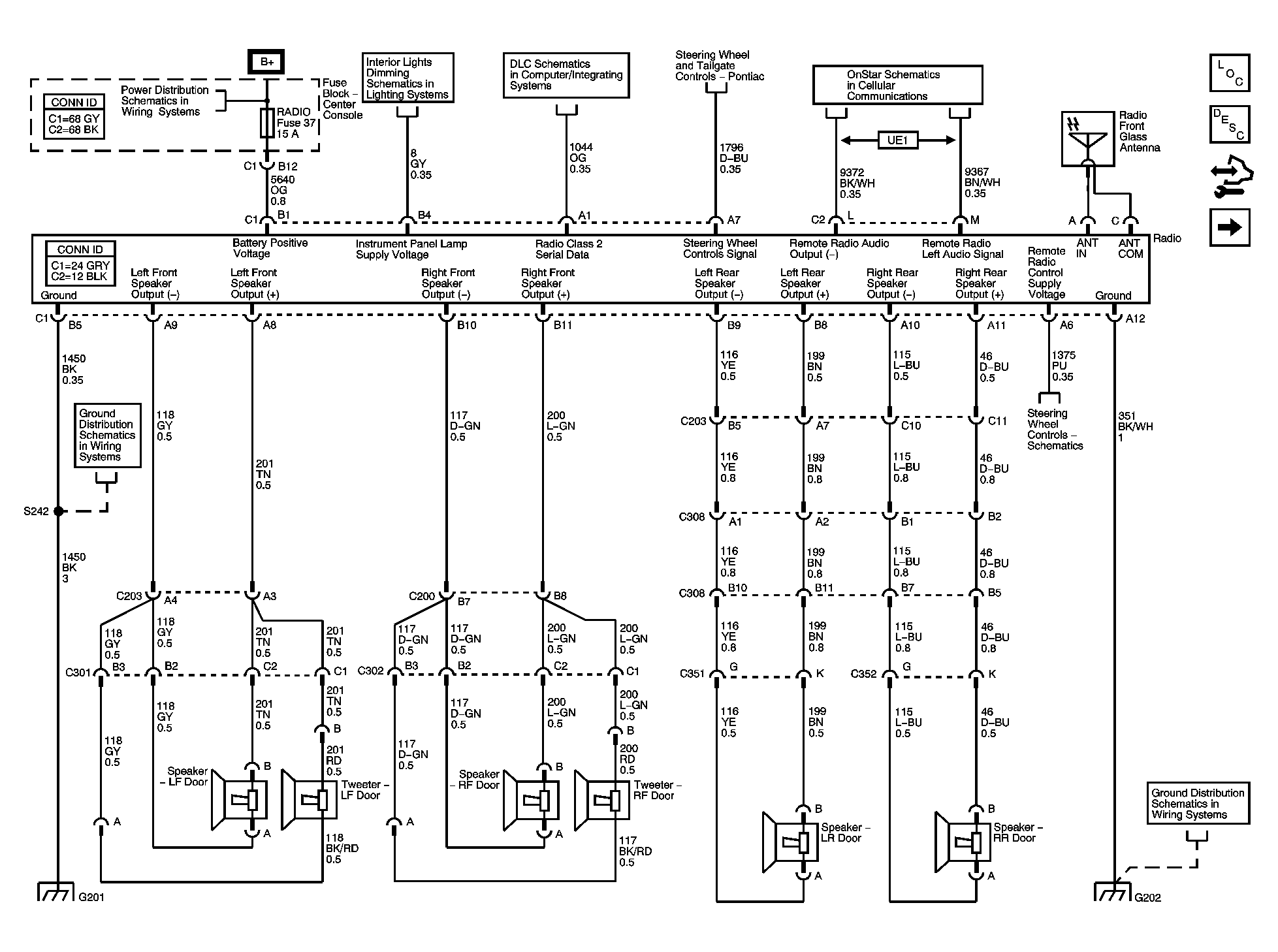

Fig 1: Radio System (U96) - Pontiac

Courtesy of GENERAL MOTORS CORP.

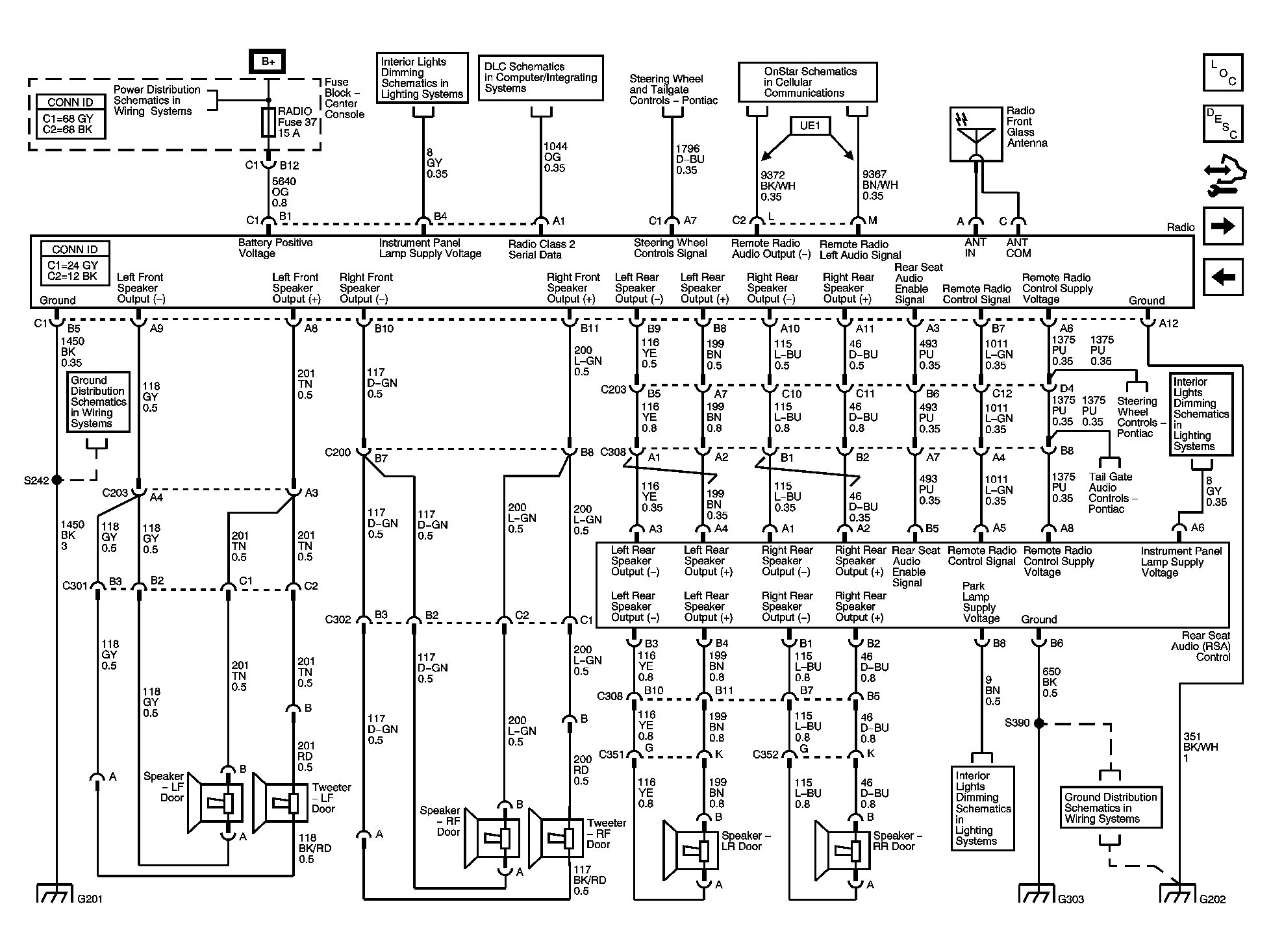

Fig 2: Radio W/Rear Seat Audio Controls (U96 w/U32) - Pontiac

Courtesy of GENERAL MOTORS CORP.

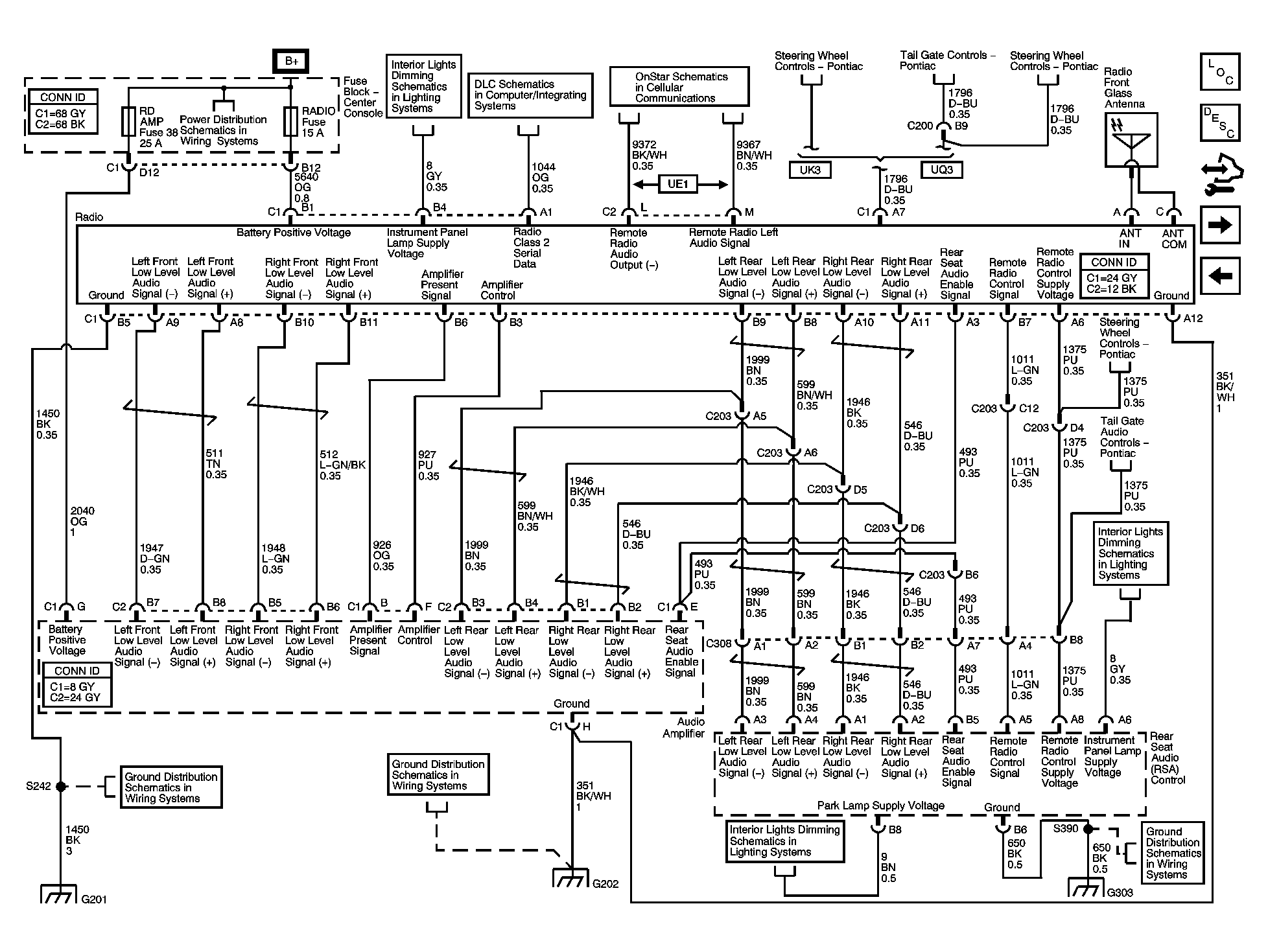

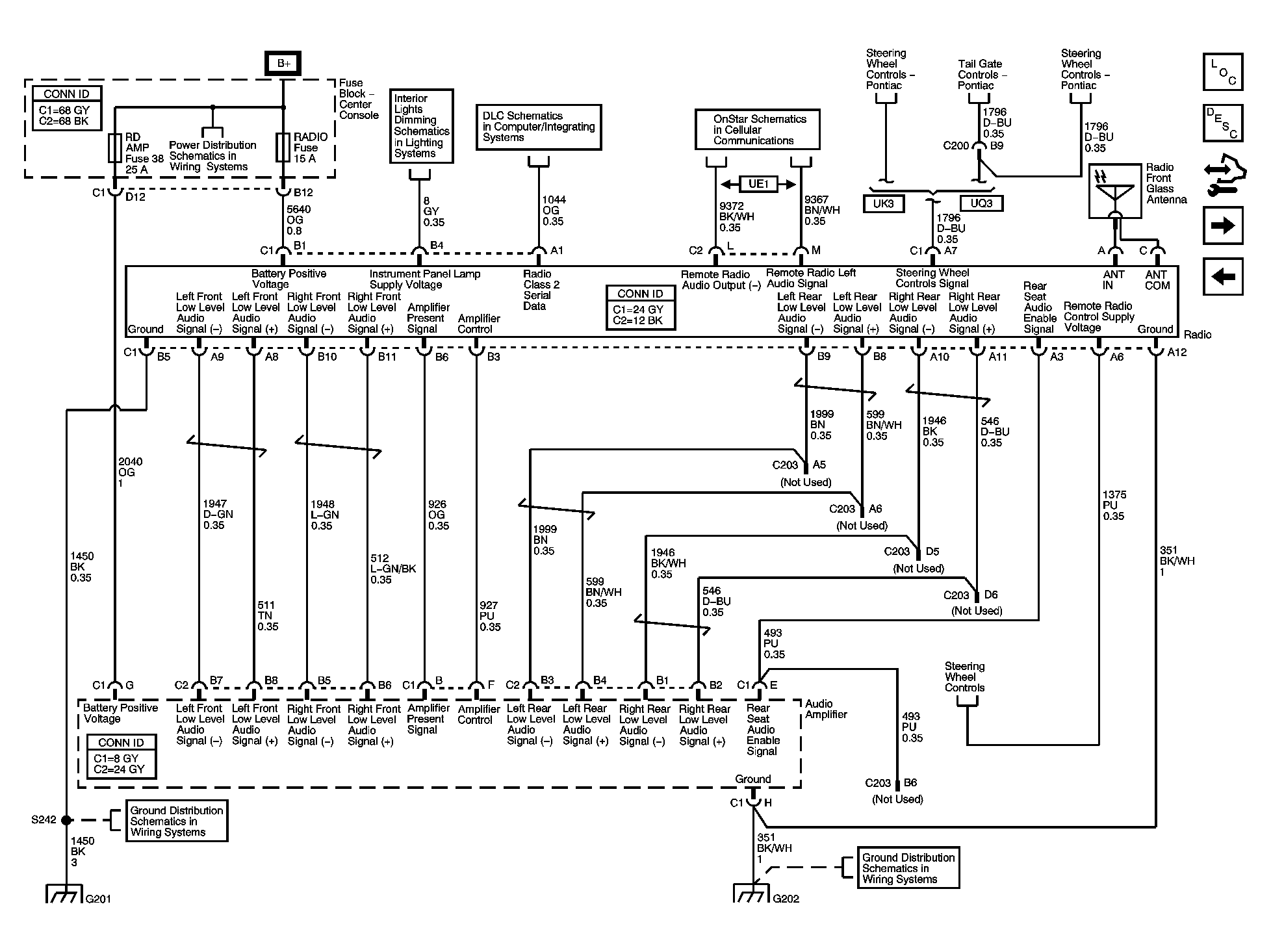

Fig 3: Uplevel Radio W/O Rear Seat Audio Controls (UQ3) - Pontiac

Courtesy of GENERAL MOTORS CORP.

Fig 4: Uplevel Radio W/Rear Seat Audio Controls (UQ3 w/U32) - Pontiac

Courtesy of GENERAL MOTORS CORP.

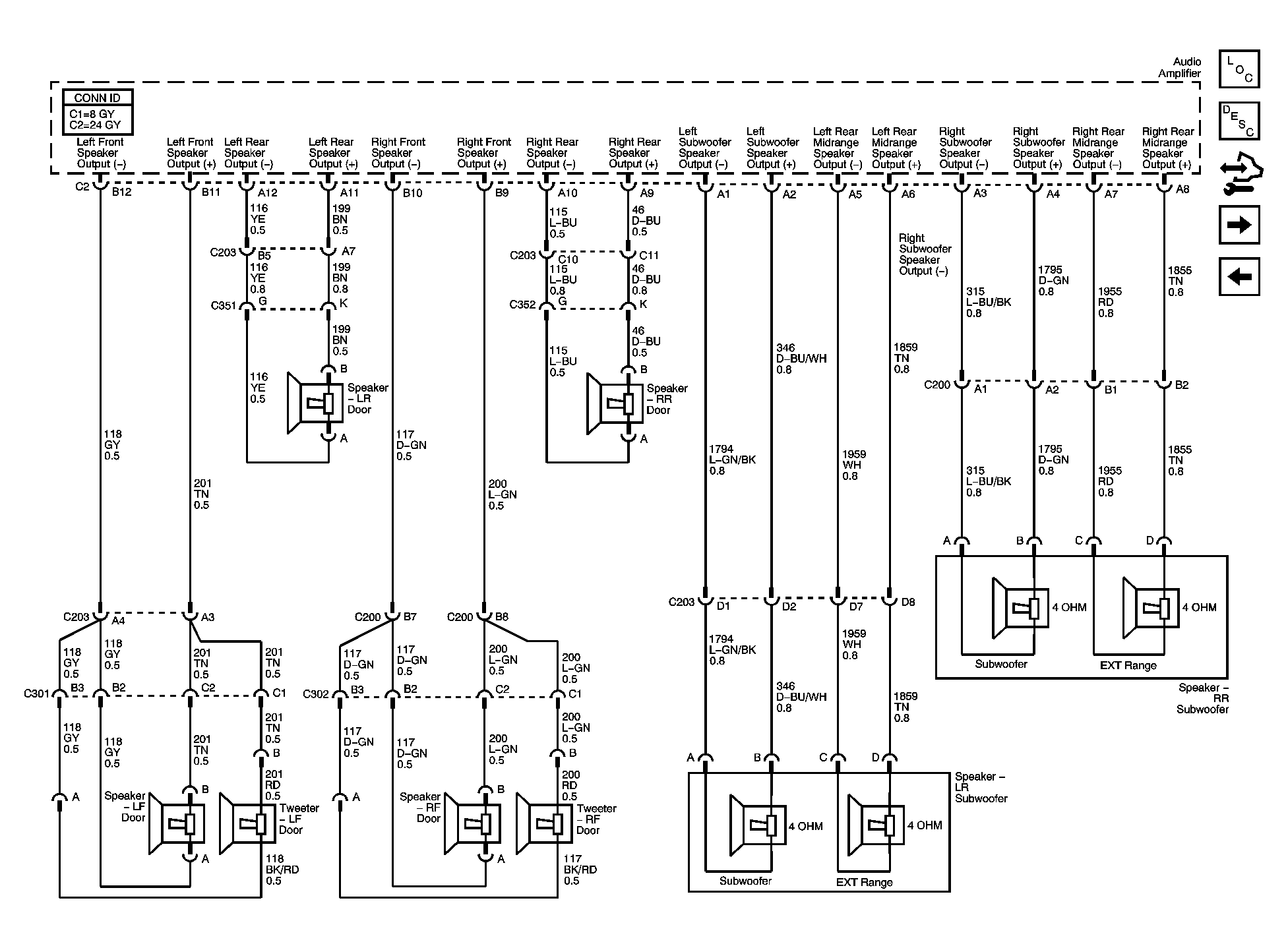

Fig 5: Radio Speakers (UQ3) - Pontiac

Courtesy of GENERAL MOTORS CORP.

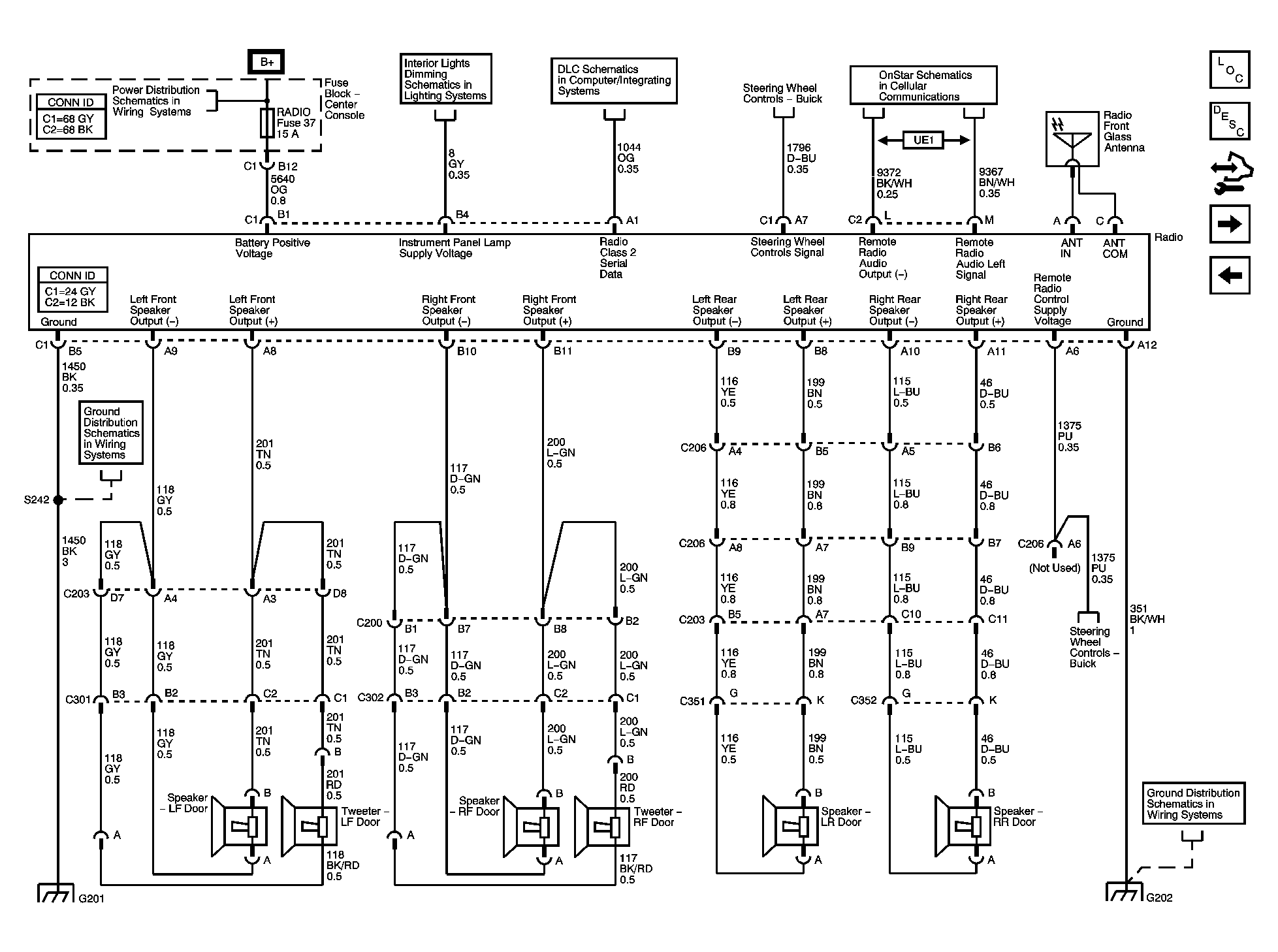

Fig 6: Radio System (U96) - Buick

Courtesy of GENERAL MOTORS CORP.

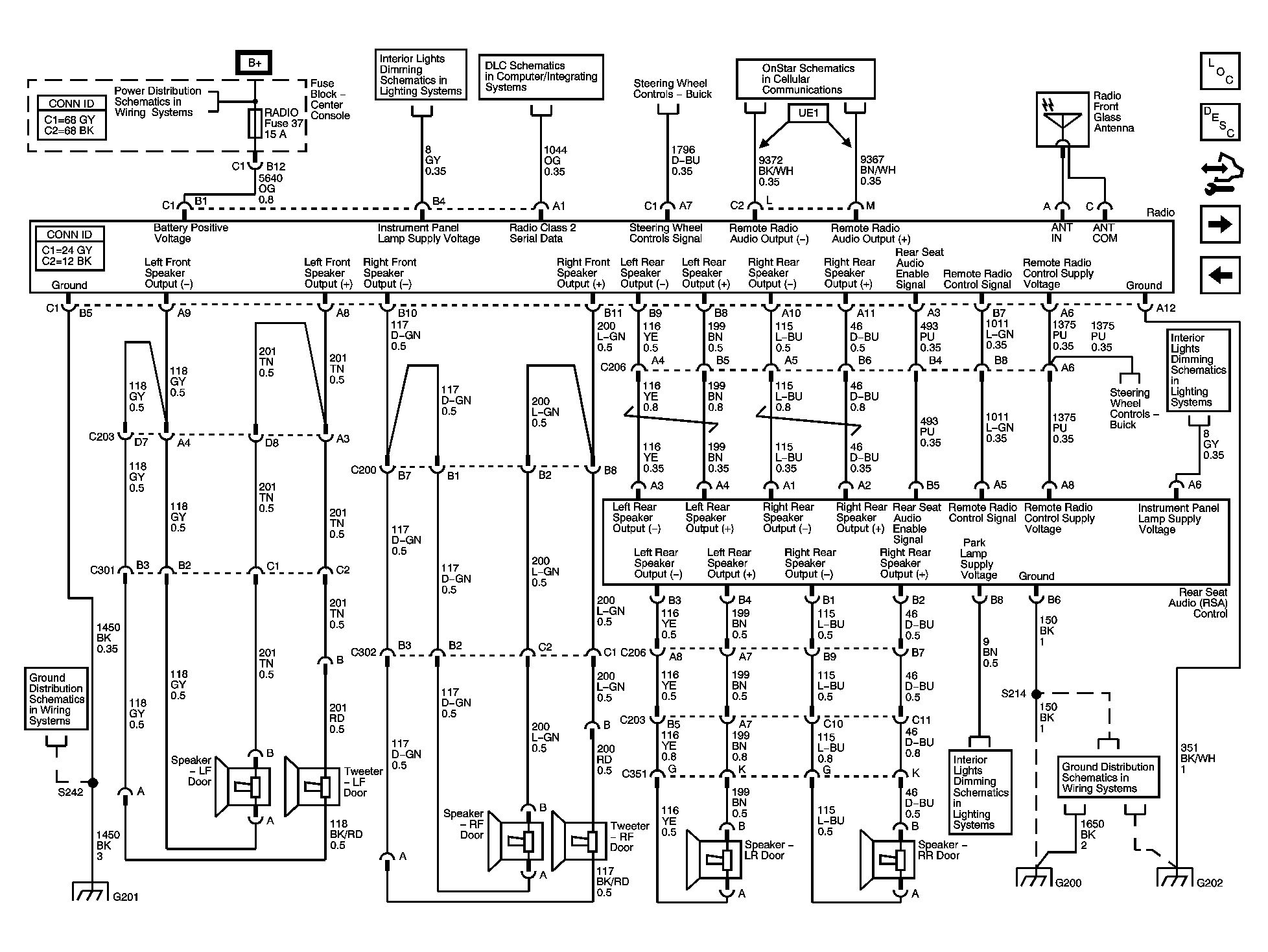

Fig 7: Radio W/Rear Seat Audio Controls (U96 w/U32) - Buick

Courtesy of GENERAL MOTORS CORP.

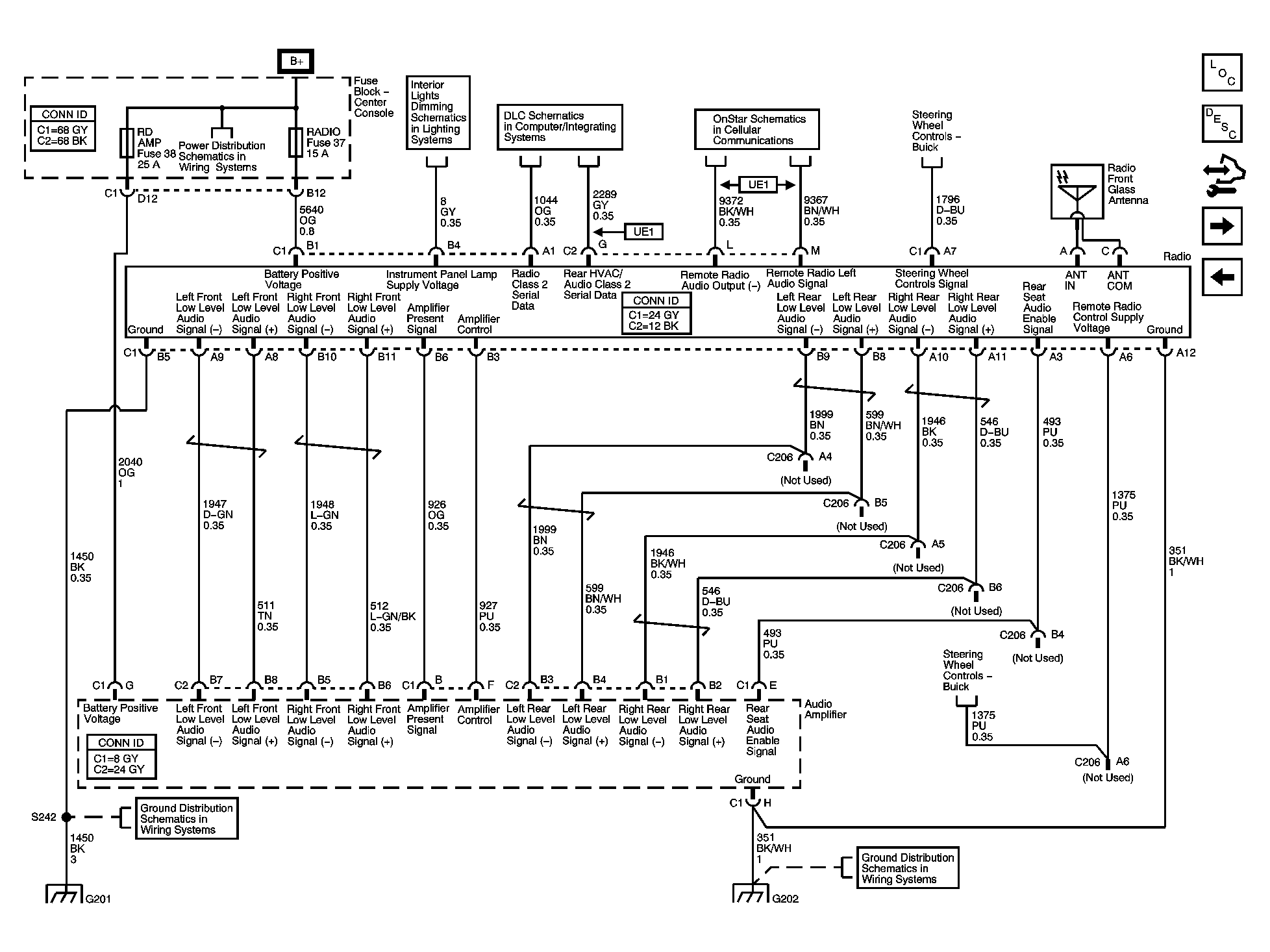

Fig 8: Uplevel Radio W/O Rear Seat Audio Controls (UQ3) - Buick

Courtesy of GENERAL MOTORS CORP.

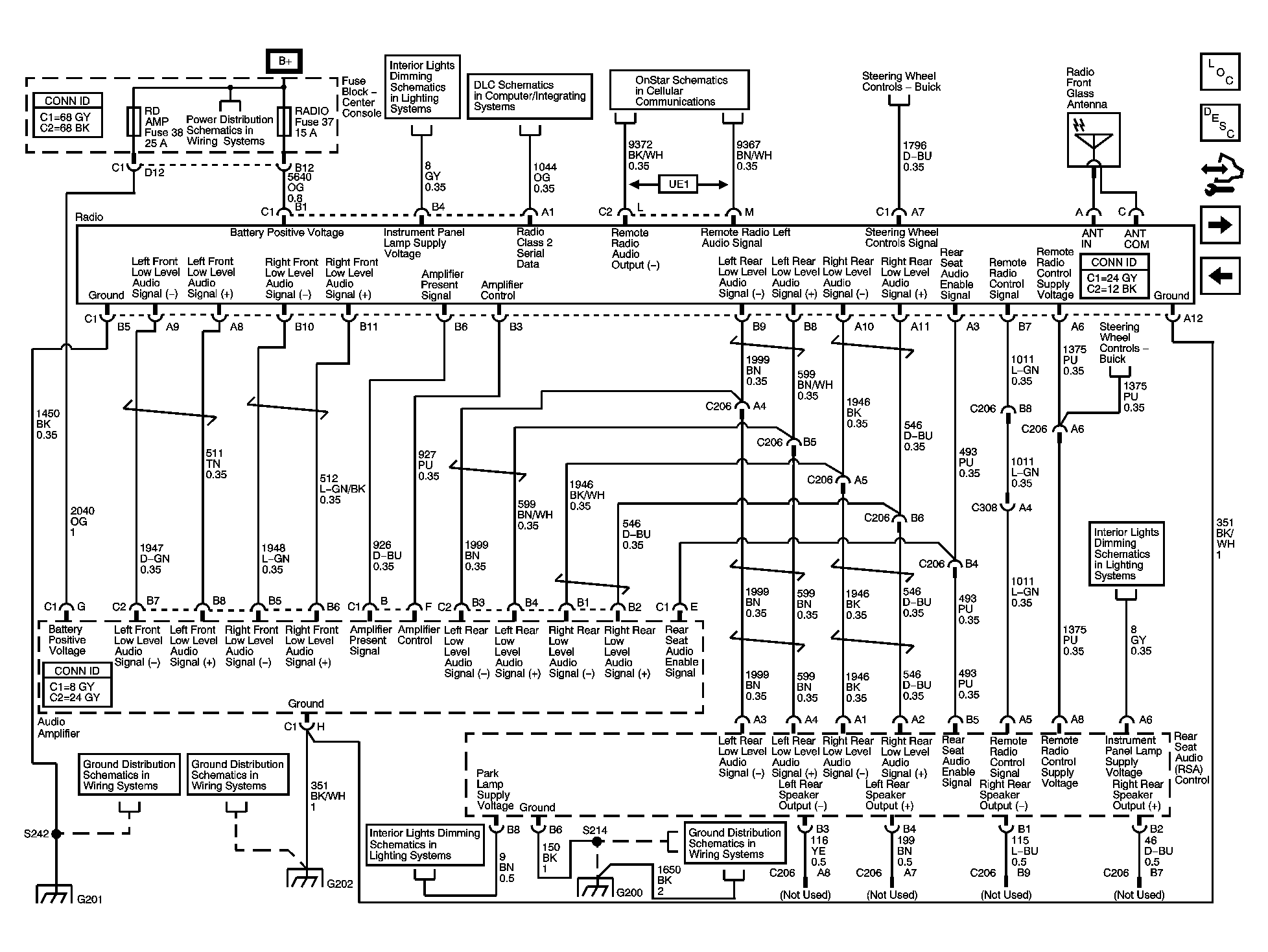

Fig 9: Uplevel Radio W/Rear Seat Audio Controls (UQ3 w/U32) - Buick

Courtesy of GENERAL MOTORS CORP.

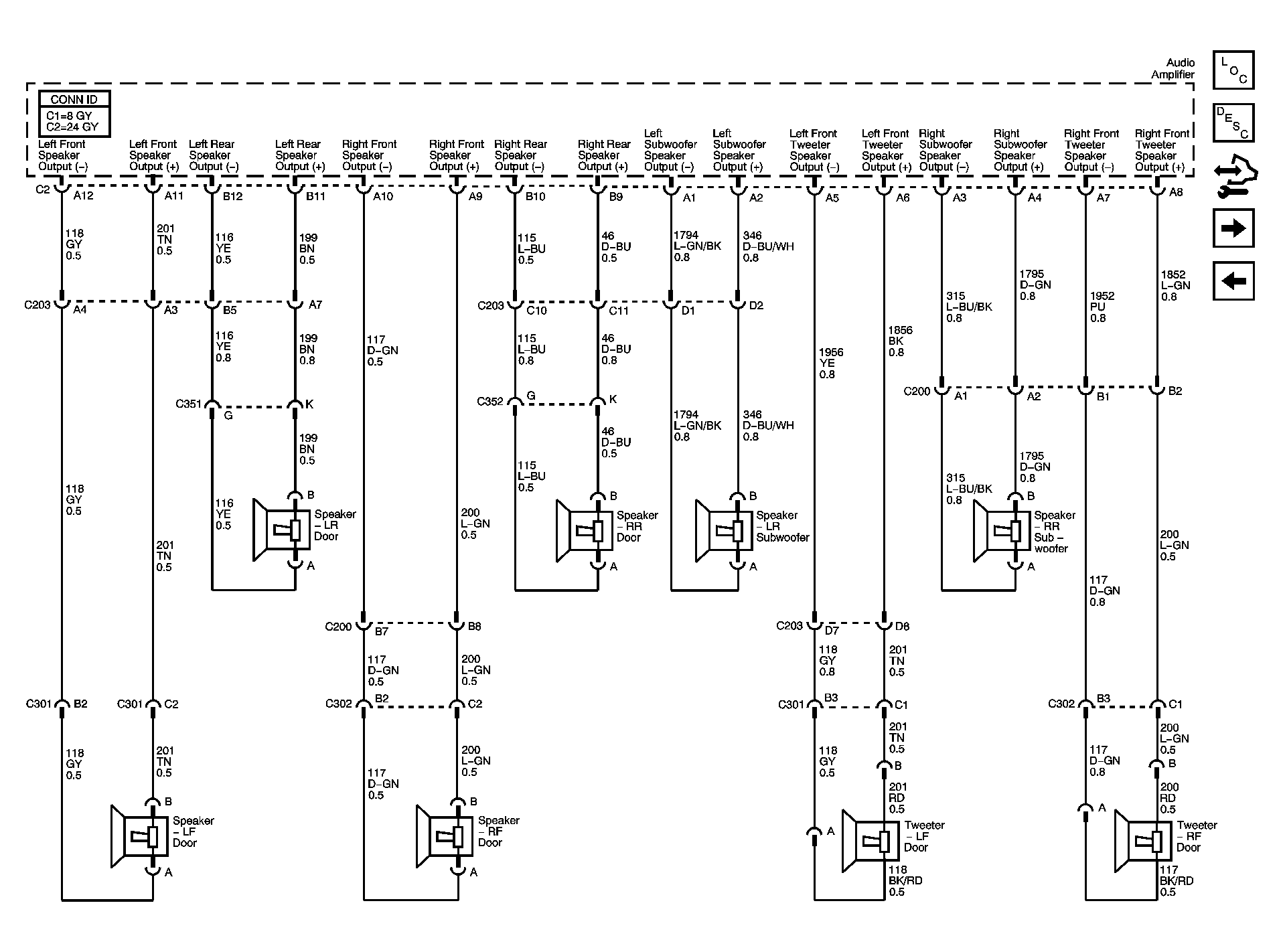

Fig 10: Radio Speakers (UQ3) - Buick

Courtesy of GENERAL MOTORS CORP.

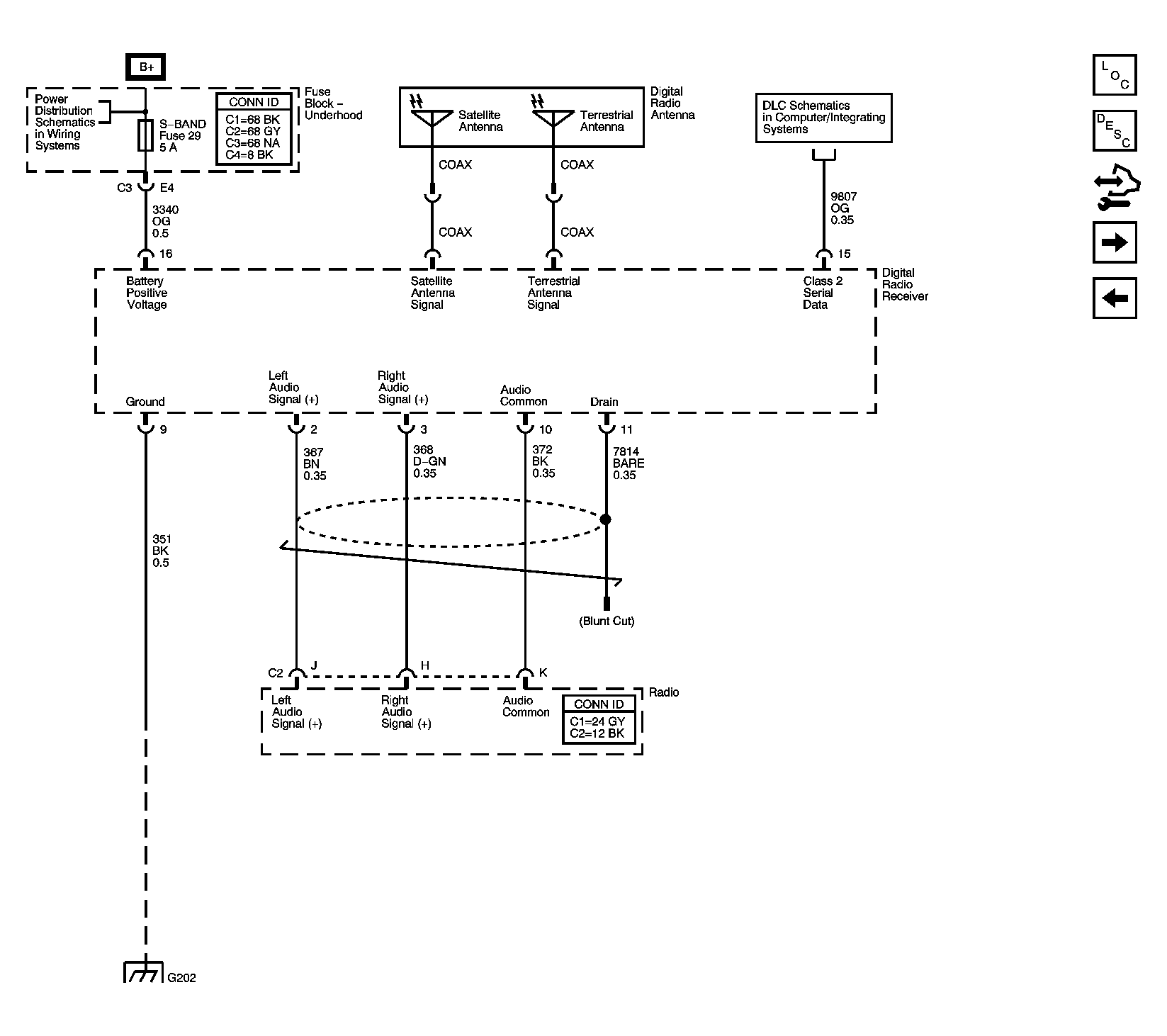

Fig 11: Digital Radio Receiver w/U2K

Courtesy of GENERAL MOTORS CORP.

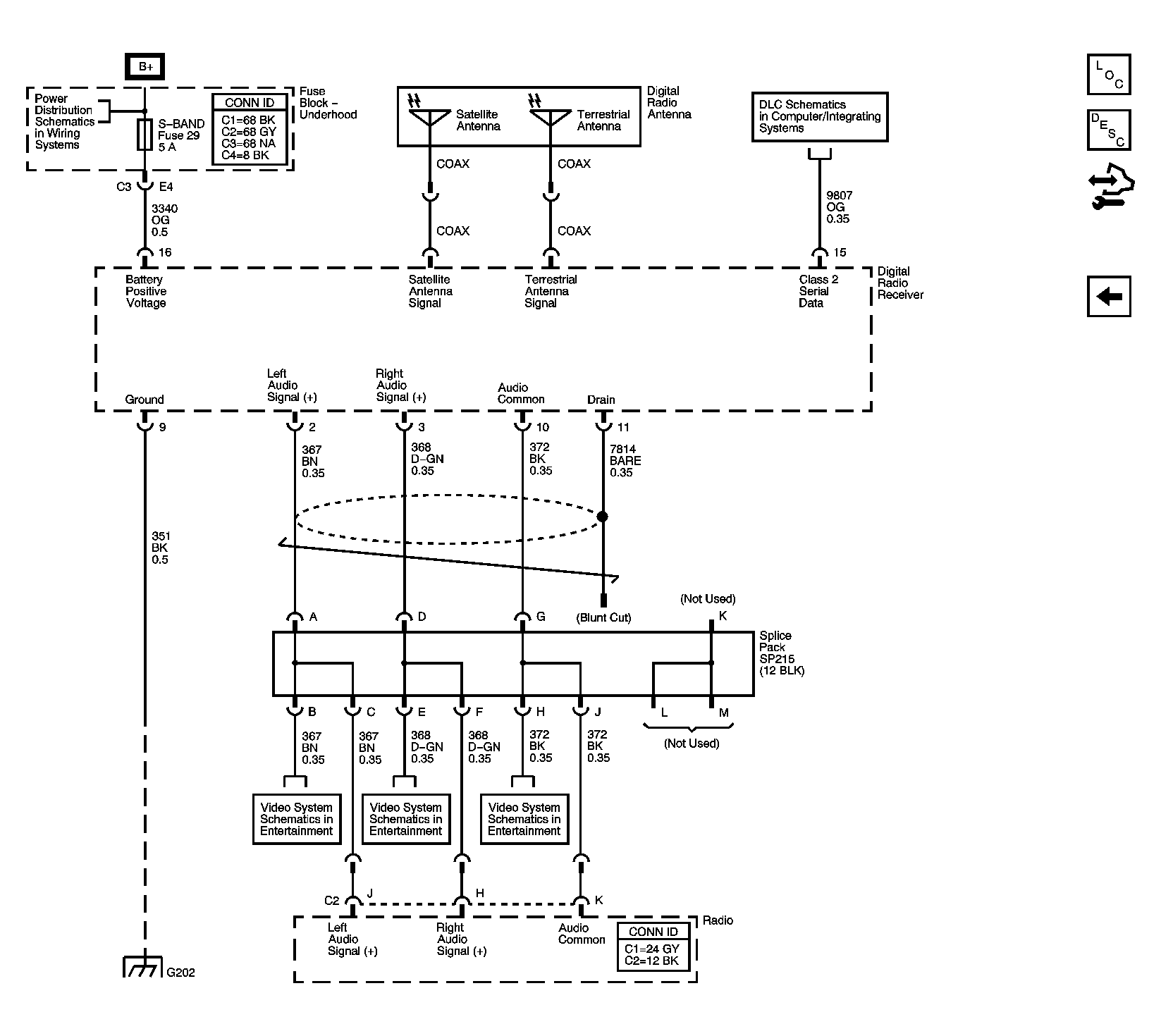

Fig 12: Digital Radio Receiver (w/U2K and UE1)

Courtesy of GENERAL MOTORS CORP.
