Automatic Transmission Shift Lock Control Schematics

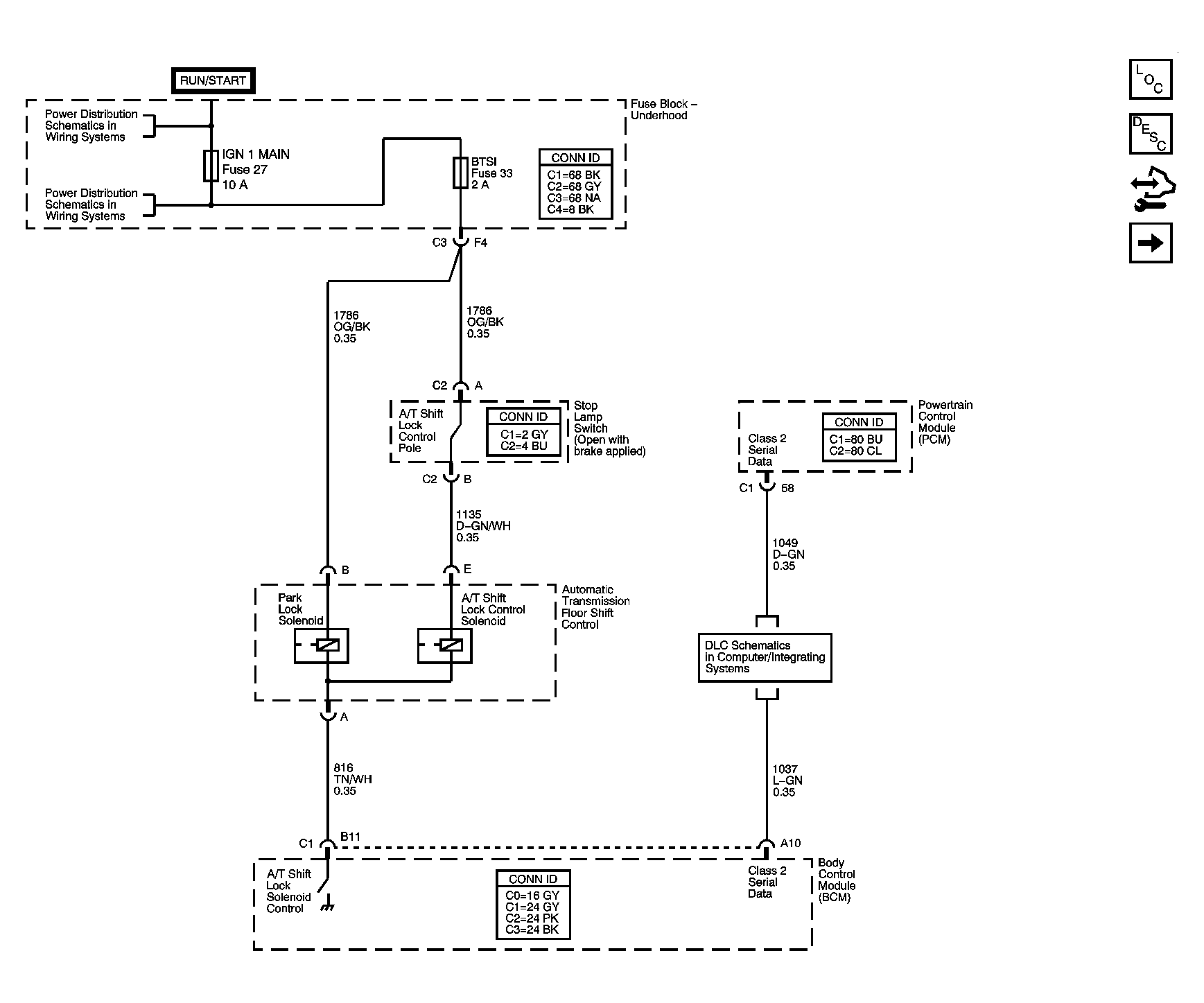

Fig 1: A/T Shift Lock Control (Pontiac)

GM1499982

Courtesy of GENERAL MOTORS CORP.

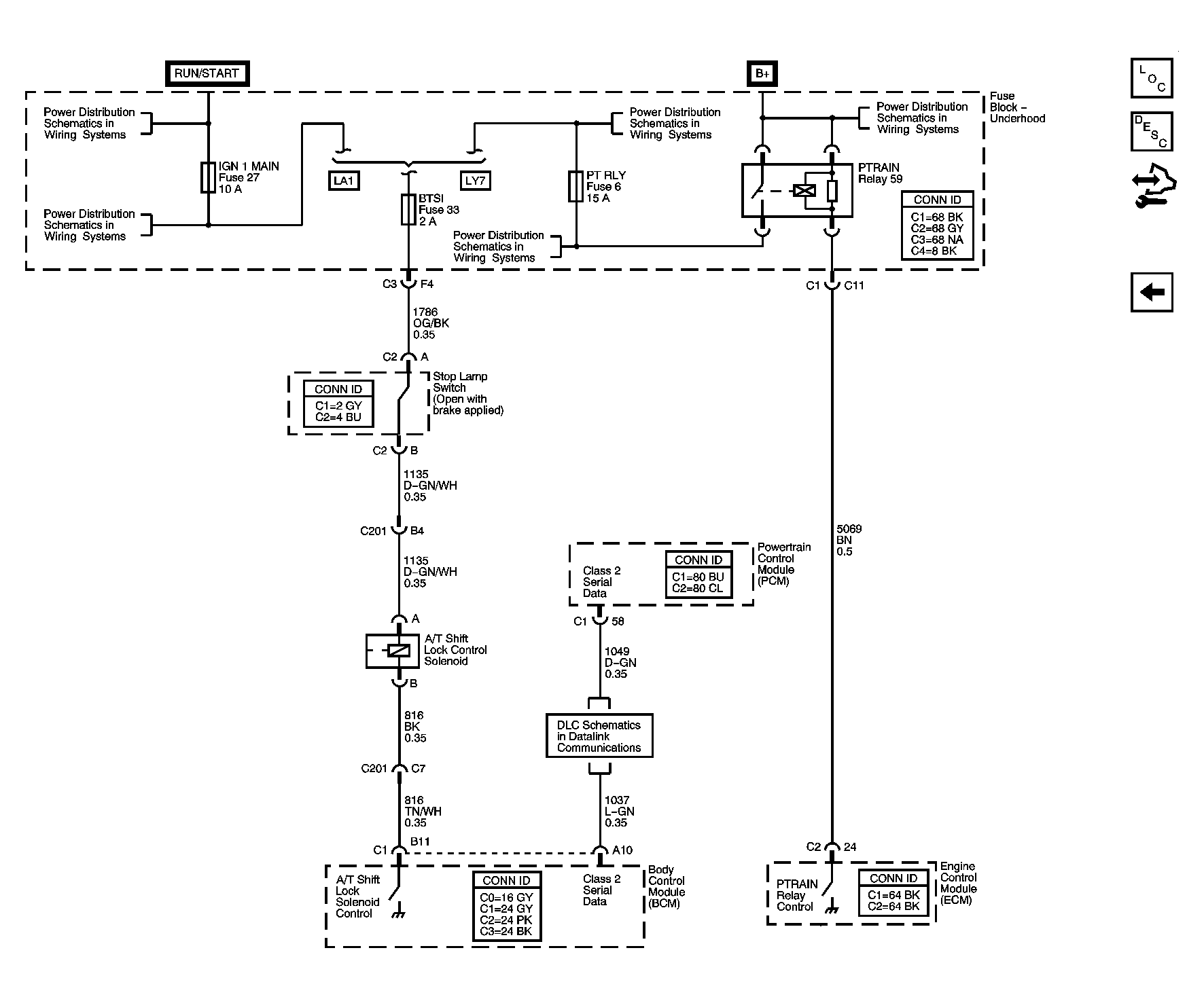

Fig 2: A/T Shift Lock Control (Buick)

GM1499985

Courtesy of GENERAL MOTORS CORP.
